Toyota Hilux (DCB/SCB/XTR)
2024-08 → present · chassis GUN12#,135 · catalogue 6725E0 · Europe
Supported model
Data version 2024-10

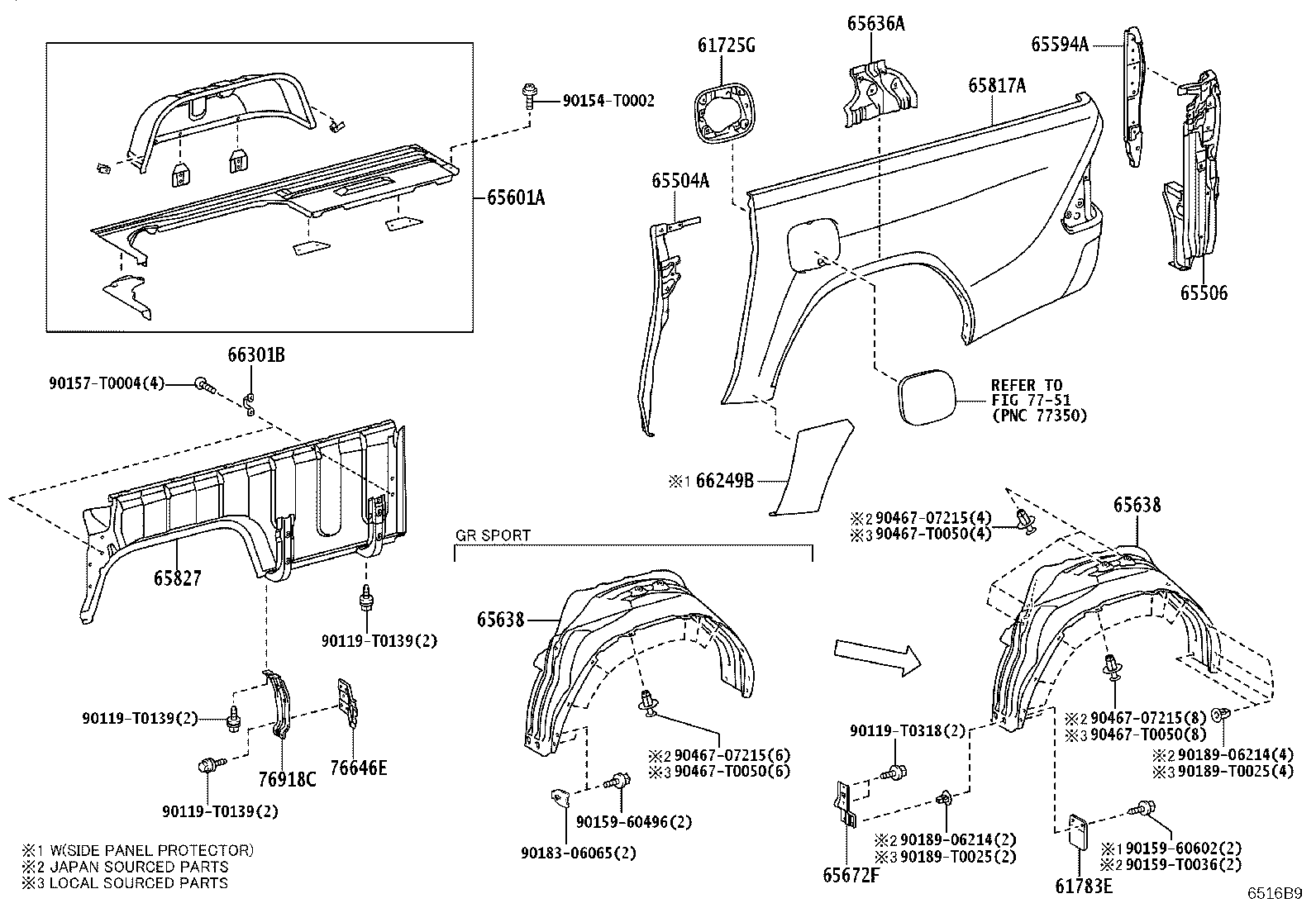

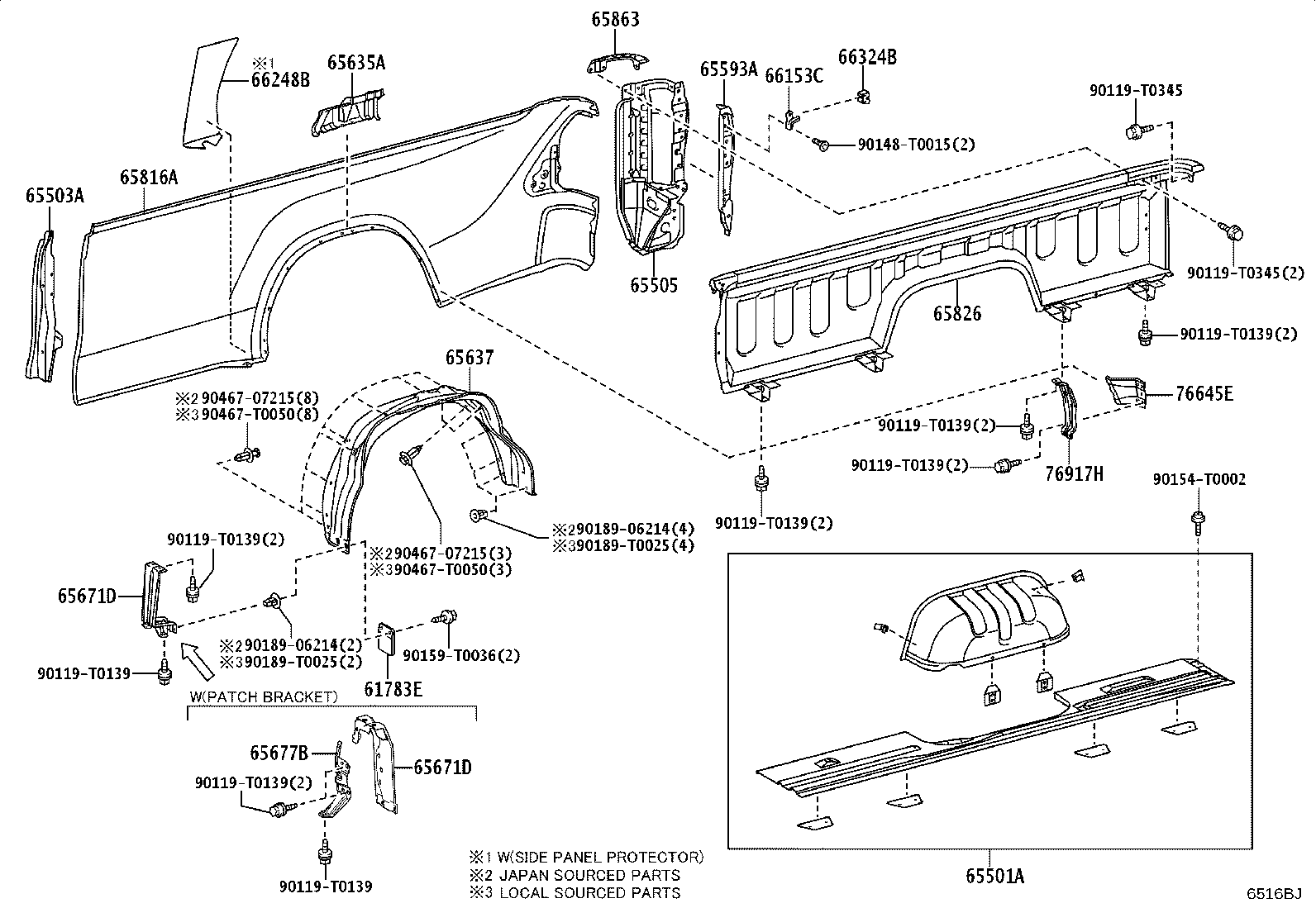

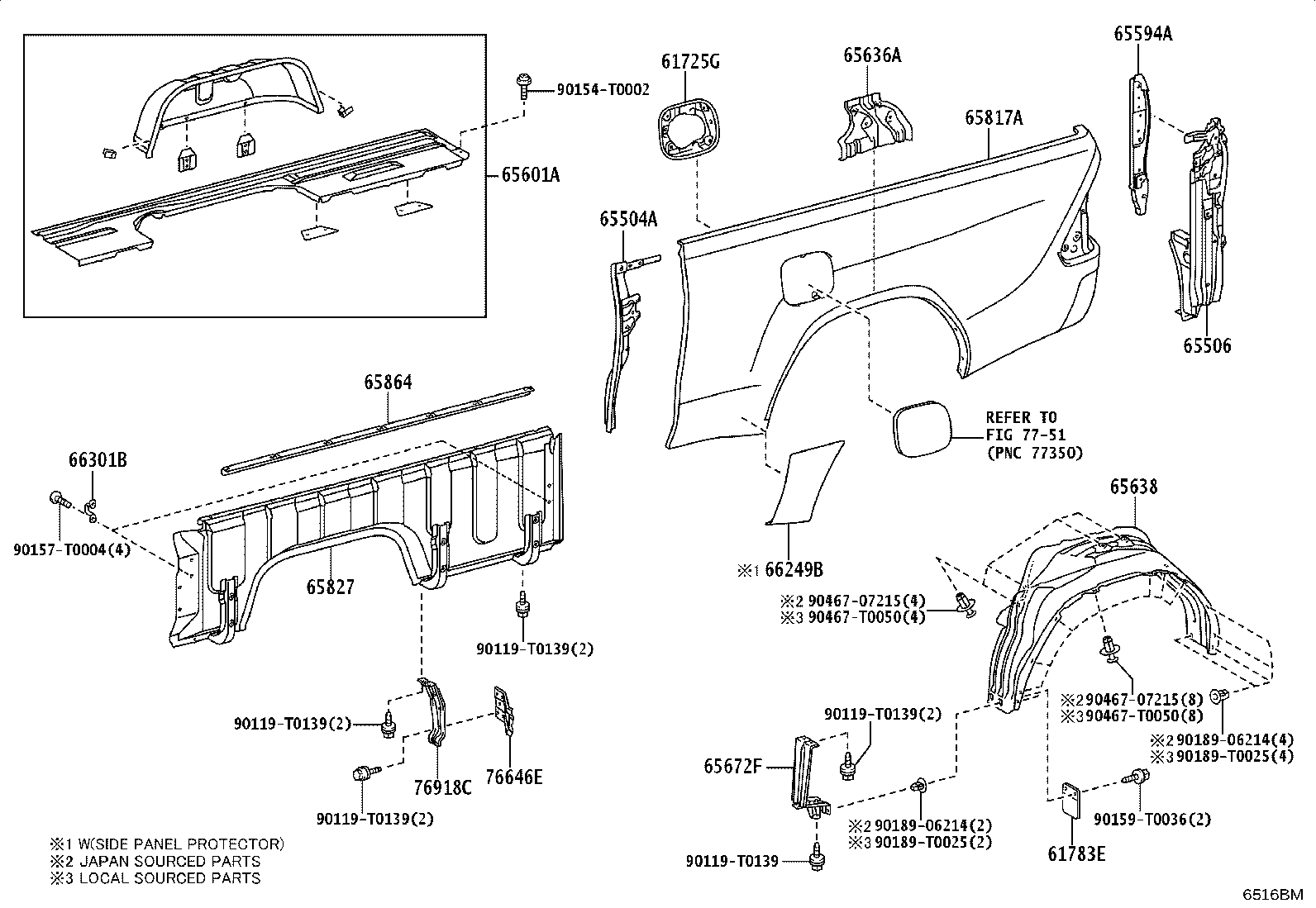

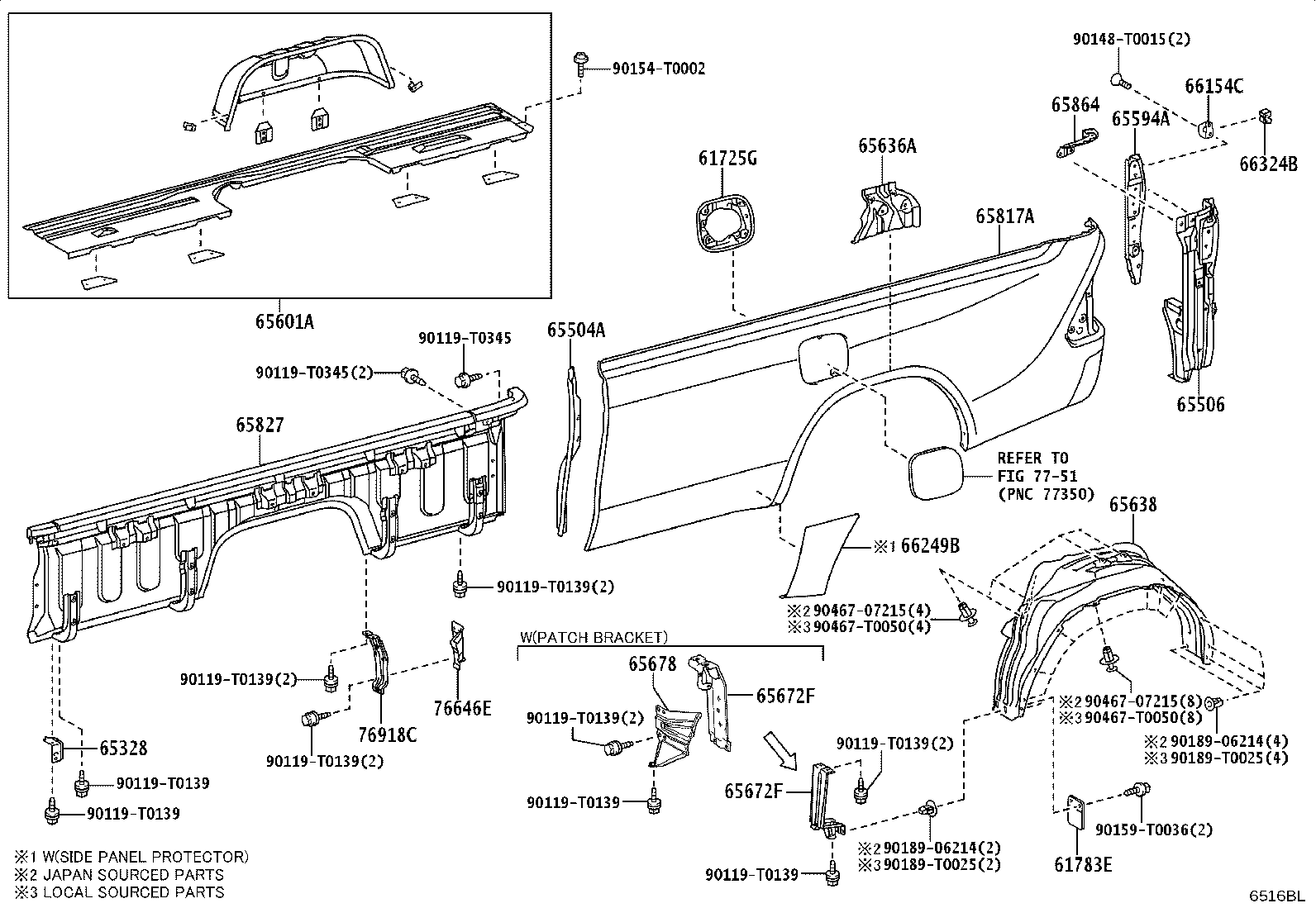

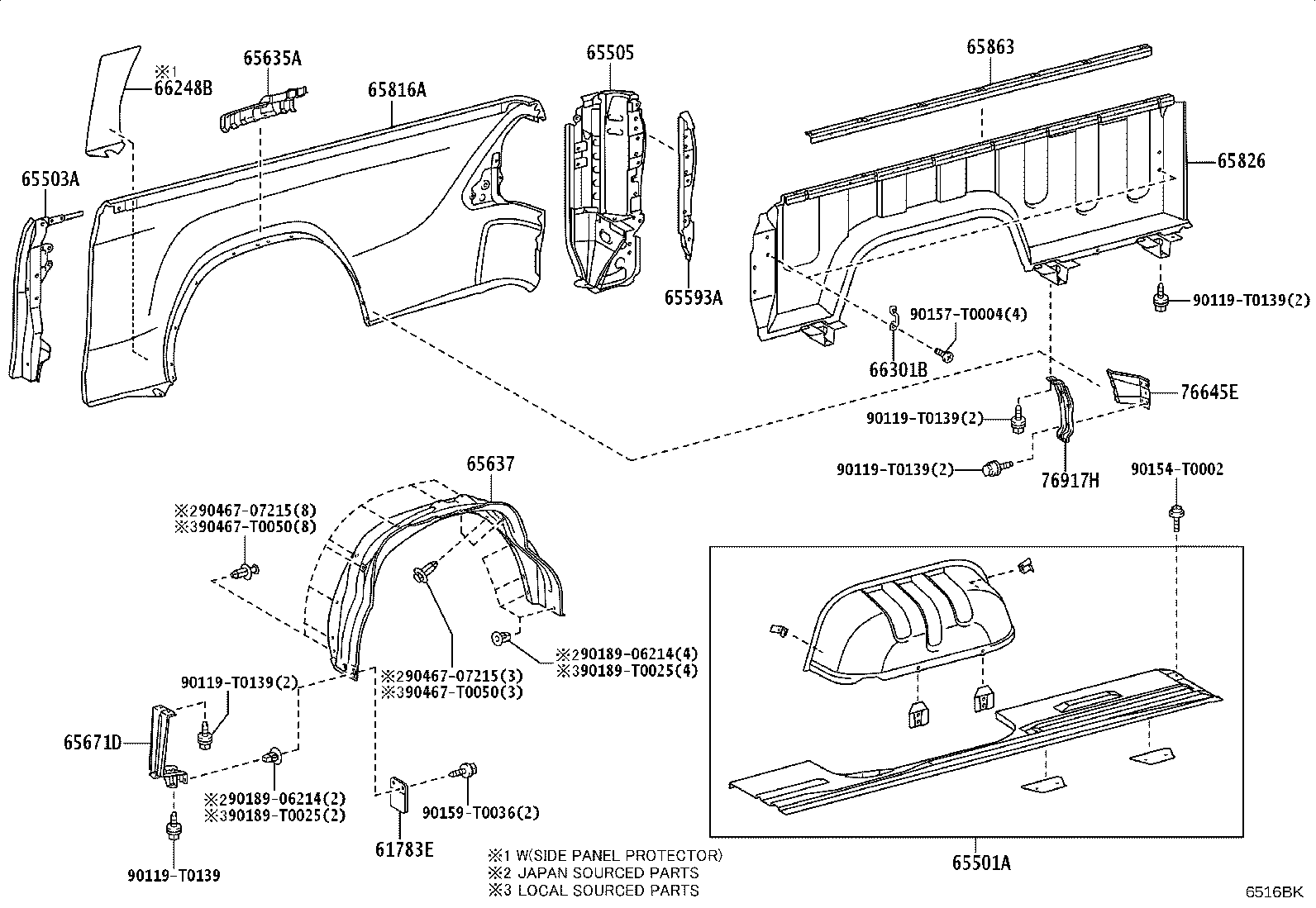

Rear Body Side Panel
35 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 61725G | Box, Fuel Inlet, NO.1 |
| 61783E | Pad, Rear Wheel Opening Extension, NO.1 |
| 65328 | Plate, Floor Board Side, LH |
| 65501A | Panel Sub-assy, Rear Body Side, RH |
| 65503A | Post Sub-assy, Side Panel Front End, RH |
| 65504A | Post Sub-assy, Side Panel Front End, LH |
| 65505 | Post Sub-assy, Side Panel Rear End, RH |
| 65506 | Post Sub-assy, Side Panel Rear End, LH |
| 65593A | Plate, Side Panel Rear End Post Inside, RH |
| 65594A | Plate, Side Panel Rear End Post Inside, LH |
| 65601A | Panel Sub-assy, Rear Body Side, LH |
| 65635A | Panel, Wheel House, Rear RH |
| 65636A | Panel, Wheel House, Rear LH |
| 65637 | Liner, Rear Wheel House, RH |
| 65638 | Liner, Rear Wheel House, LH |
| 65671D | Brace, Side Panel Skirt, Front RH |
| 65672F | Brace, Side Panel Skirt, Front LH |
| 65677B | Patch, Wheel House, Rear RH |
| 65678 | Patch, Wheel House, Rear LH |
| 65816A | Panel, Rear Body Side, RH |
| 65817A | Panel, Rear Body Side, LH |
| 65826 | Panel, Rear Body Side, Inner RH |
| 65827 | Panel, Rear Body Side, Inner LH |
| 65863 | Panel, Rear Body Side, Upper RH |
| 65864 | Panel, Rear Body Side, Upper LH |
| 66153C | Hook, Tail Gate Latch, NO.1 RH |
| 66154C | Hook, Tail Gate Latch, NO.1 LH |
| 66248B | Protector, Rear Body Side Panel, RH |
| 66249B | Protector, Rear Body Side Panel, LH |
| 66301B | Hook Sub-assy, Rope |
| 66324B | Cushion, Tail Gate Side |
| 76645E | Bracket, RR Body Mudguard, RH |
| 76646E | Bracket, RR Body Mudguard, LH |
| 76917H | Mudguard, Side, Rear RH |
| 76918C | Mudguard, Side, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
