Toyota Hilux (DCB/SCB/XTR)
2024-08 → present · chassis GUN12#,135 · catalogue 6725E0 · Europe
Supported model
Data version 2024-10
Battery & Battery Cable
16 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

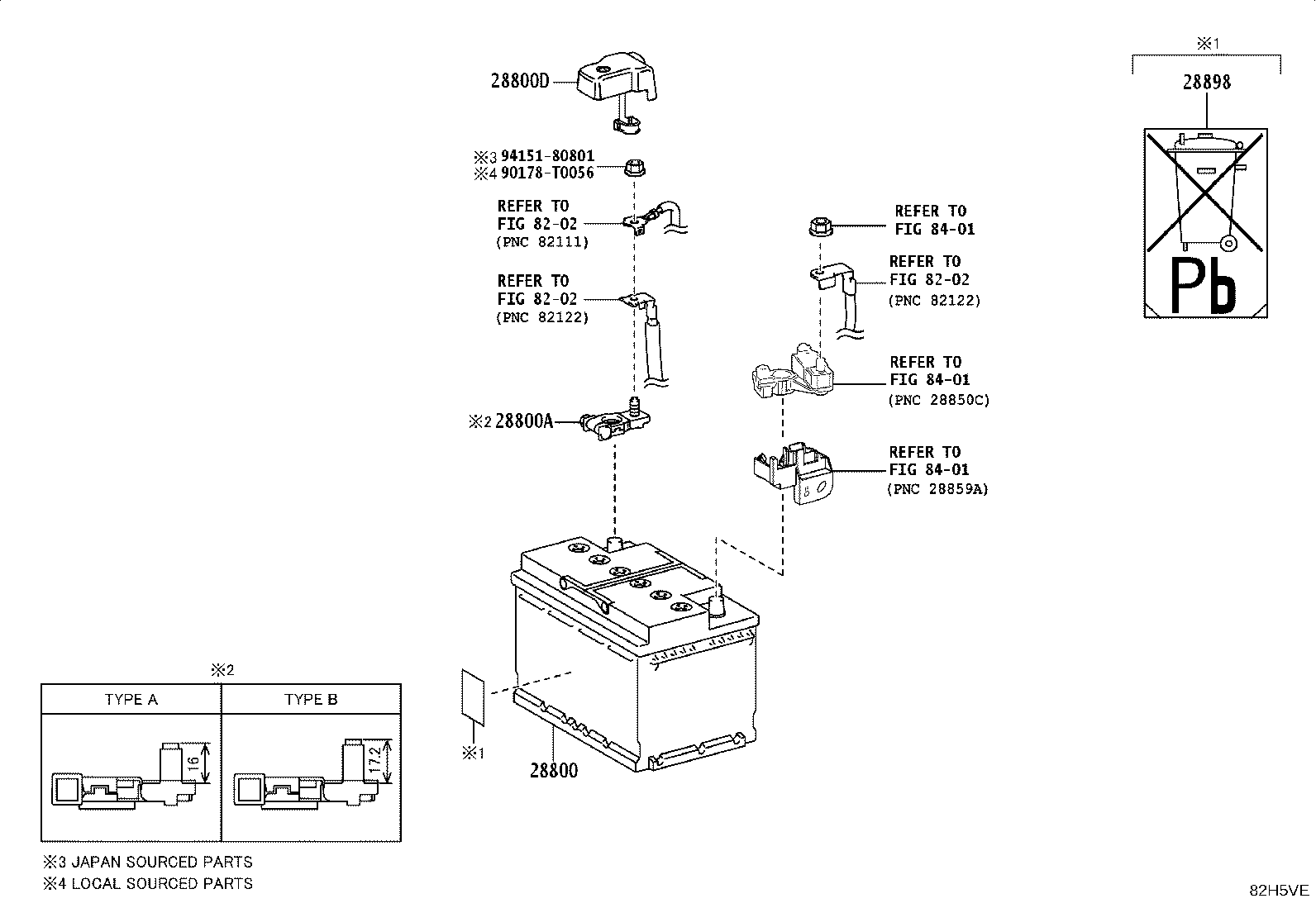

| 28800 | Battery |
| 28800A | Terminal, Battery Positive |
| 28800D | Cover, Connector(FOR BATTERY TERMINAL) |
| 28800J | Terminal, Battery Negative |
| 28898 | Plate, Battery |
| 28898B | Plate, Battery |

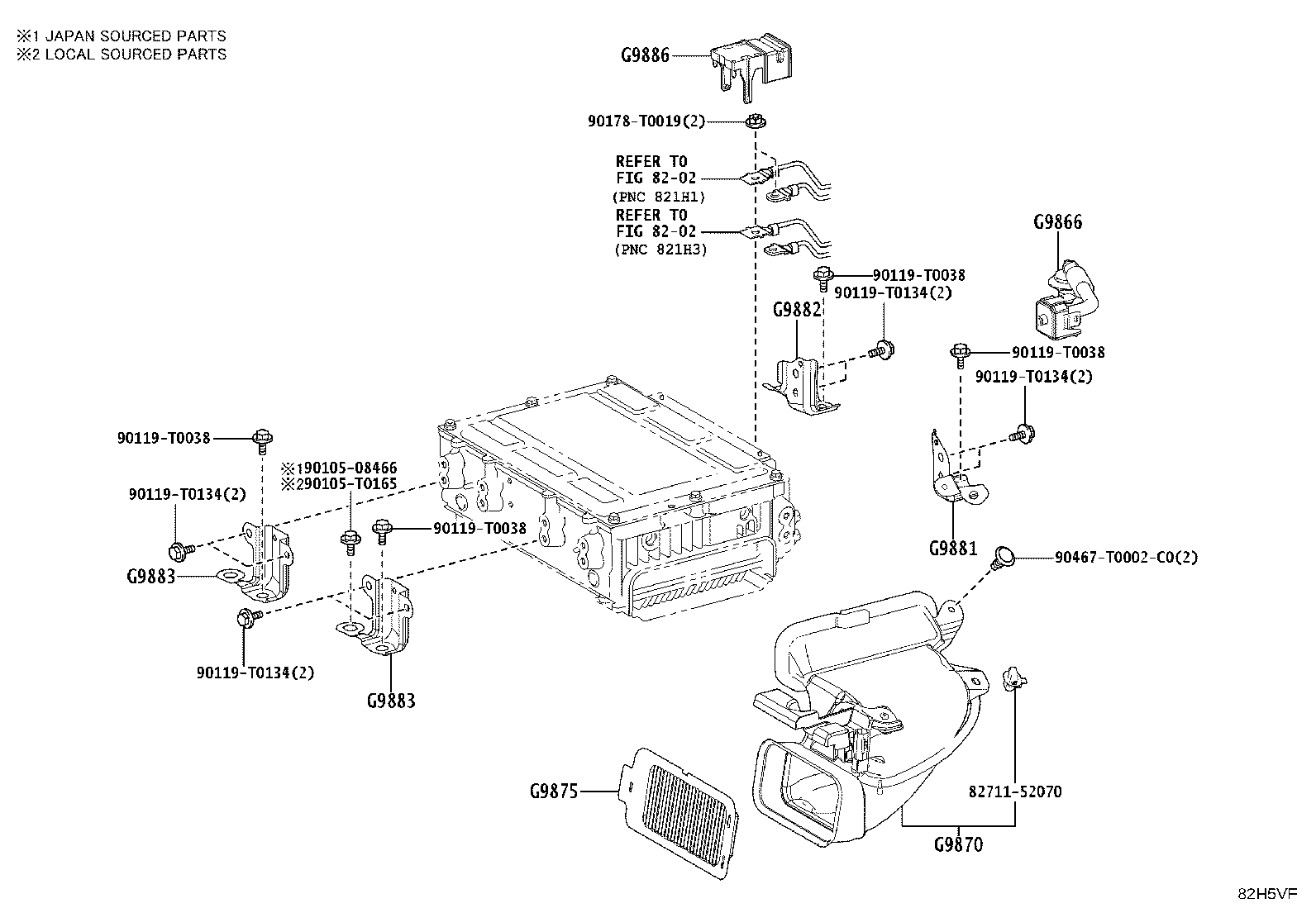

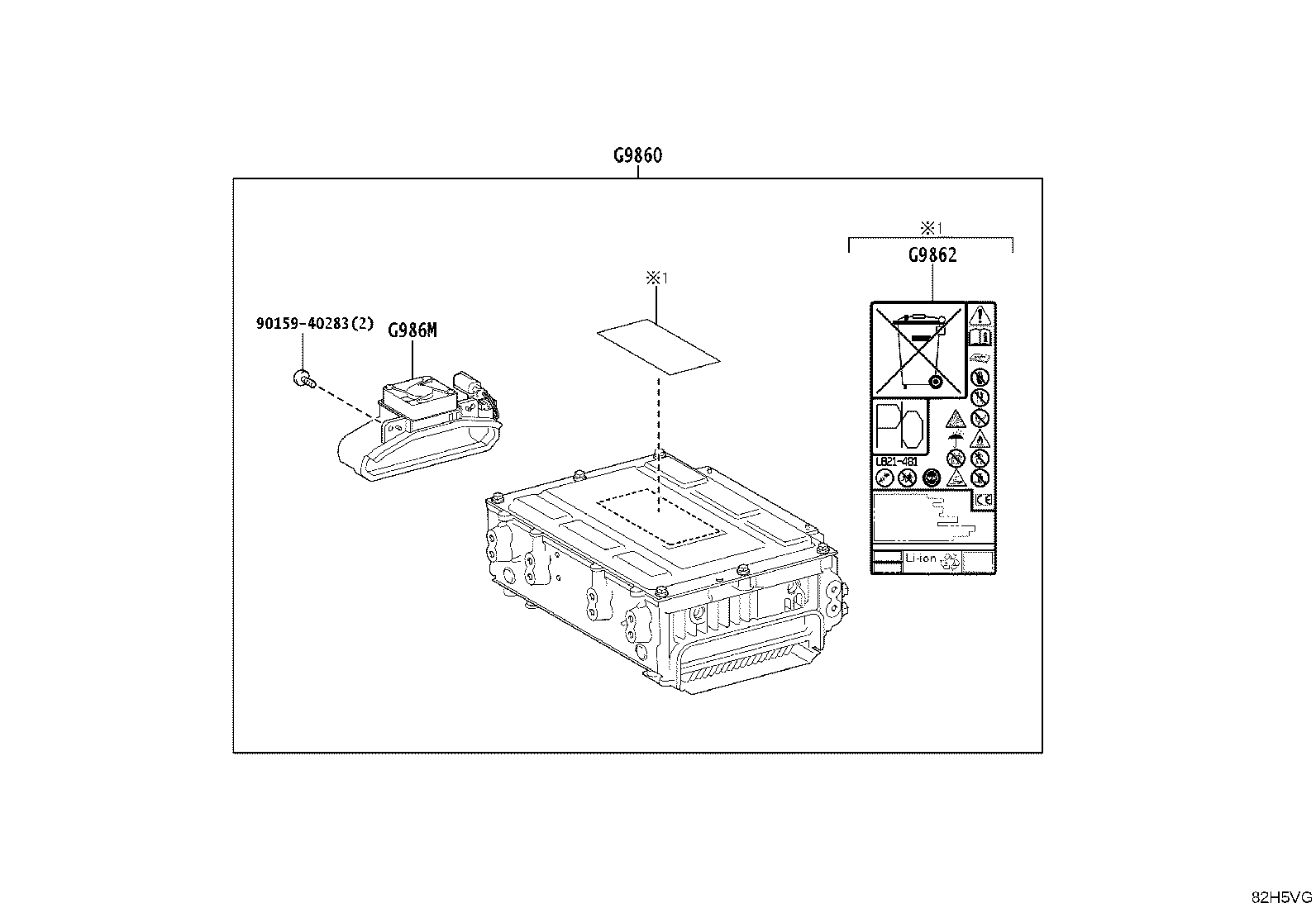

| G9860 | Battery Assy, 48V |
| G9862 | Label, 48V Battery Caution |
| G9866 | Hose, 48V Battery |
| G986M | Module, 48V Battery Fan |
| G9870 | Duct Assy, 48V Battery Intake, NO.1 |
| G9875 | Filter, 48V Battery Intake, NO.1 |
| G9881 | Bracket, 48V Battery, NO.1 |
| G9882 | Bracket, 48V Battery, NO.2 |
| G9883 | Bracket, 48V Battery, NO.3 |
| G9886 | Cover, 48V Battery Terminal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
