Toyota Hilux (DCB/SCB/XTR)

2024-08 → present · chassis GUN12#,135 · catalogue 6725E0 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

9 part groups · 2 illustrations

Illustrations

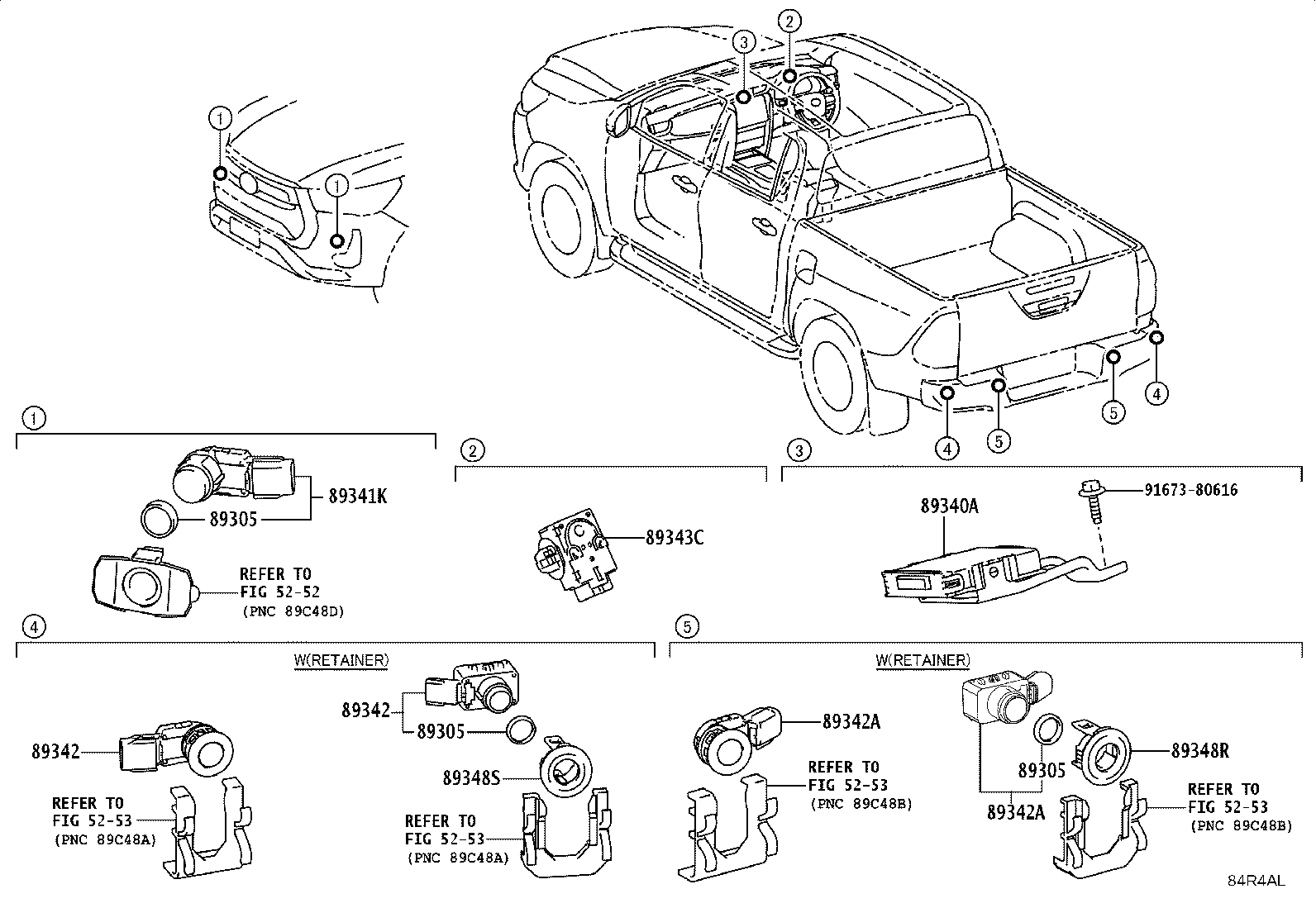

Figure 84R460A 84R460A 2024-08 → — Figure 84R4AL 84R4AL 2024-11 → —

Part groups

PNCDescription
84490A Switch Assy, Back Sonar OR Clearance Sonar
89305 Cushion Set, Ultrasonic Sensor
89340A Computer Assy, Clearance Warning
89341K Sensor, Ultrasonic, Front Corner
89342 Sensor, Ultrasonic, Rear Corner
89342A Sensor, Ultrasonic, Rear Center
89343C Buzzer, Clearance Warning, NO.1
89348R Retainer, Ultrasonic Sensor, Rear Corner
89348S Retainer, Ultrasonic Sensor, Rear Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
