Toyota Hilux (DCB/SCB/XTR)

2024-08 → present · chassis GUN12#,135 · catalogue 6725E0 · Europe

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

9 part groups · 2 illustrations

Illustrations

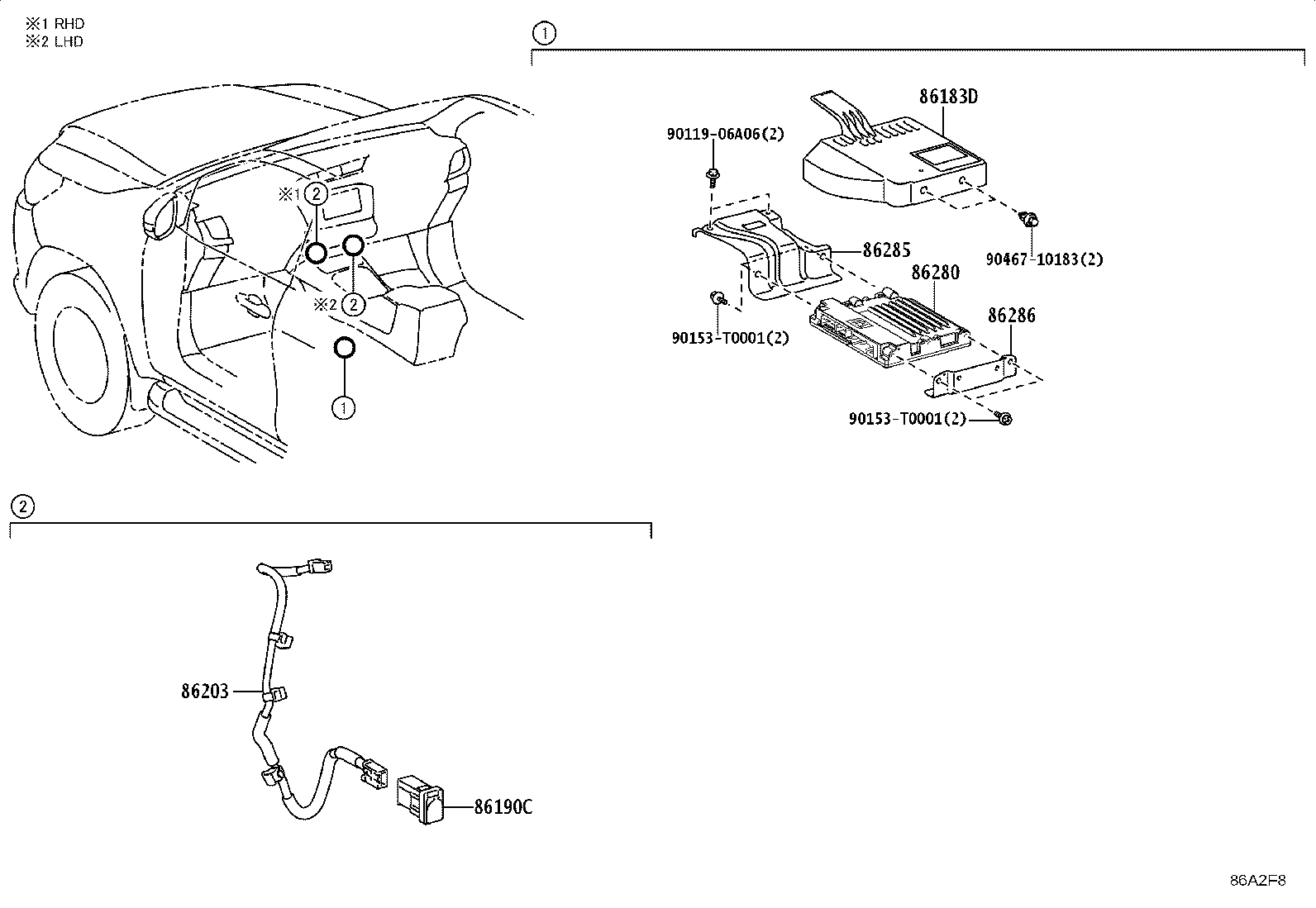

Figure 86A2F7 86A2F7 2024-08 → — Figure 86A2F8 86A2F8 2024-08 → —

Part groups

PNCDescription
86145 Connector, Antenna Male
86183D Cover, Audio Amplifier
86190C Adapter Assy, Stereo Jack, NO.1
86203 Wire, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
