Toyota Hilux (DCB/SCB/XTR)
2024-08 → present · chassis GUN12#,135 · catalogue 6725E0 · Europe
Supported model
Data version 2024-10

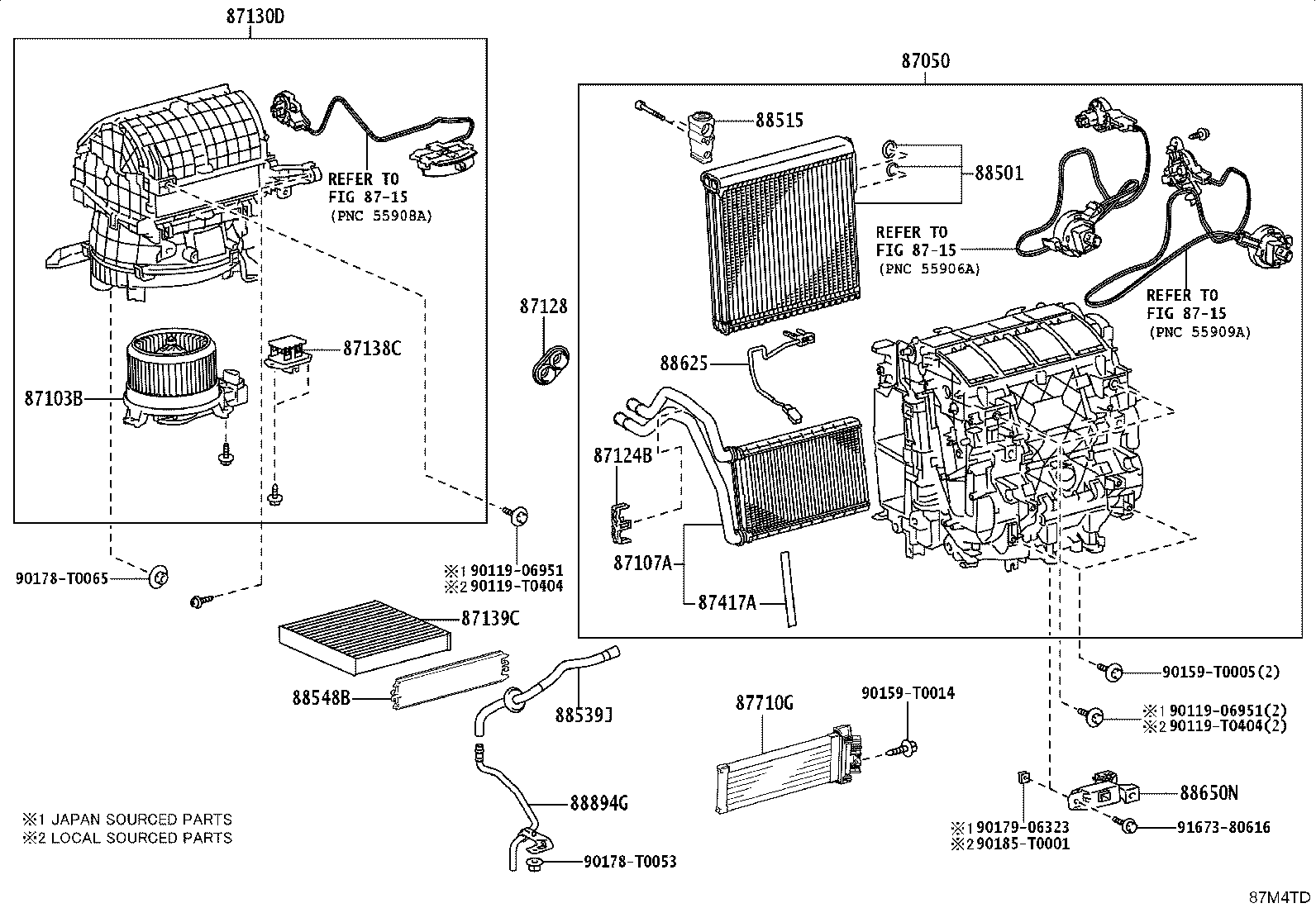

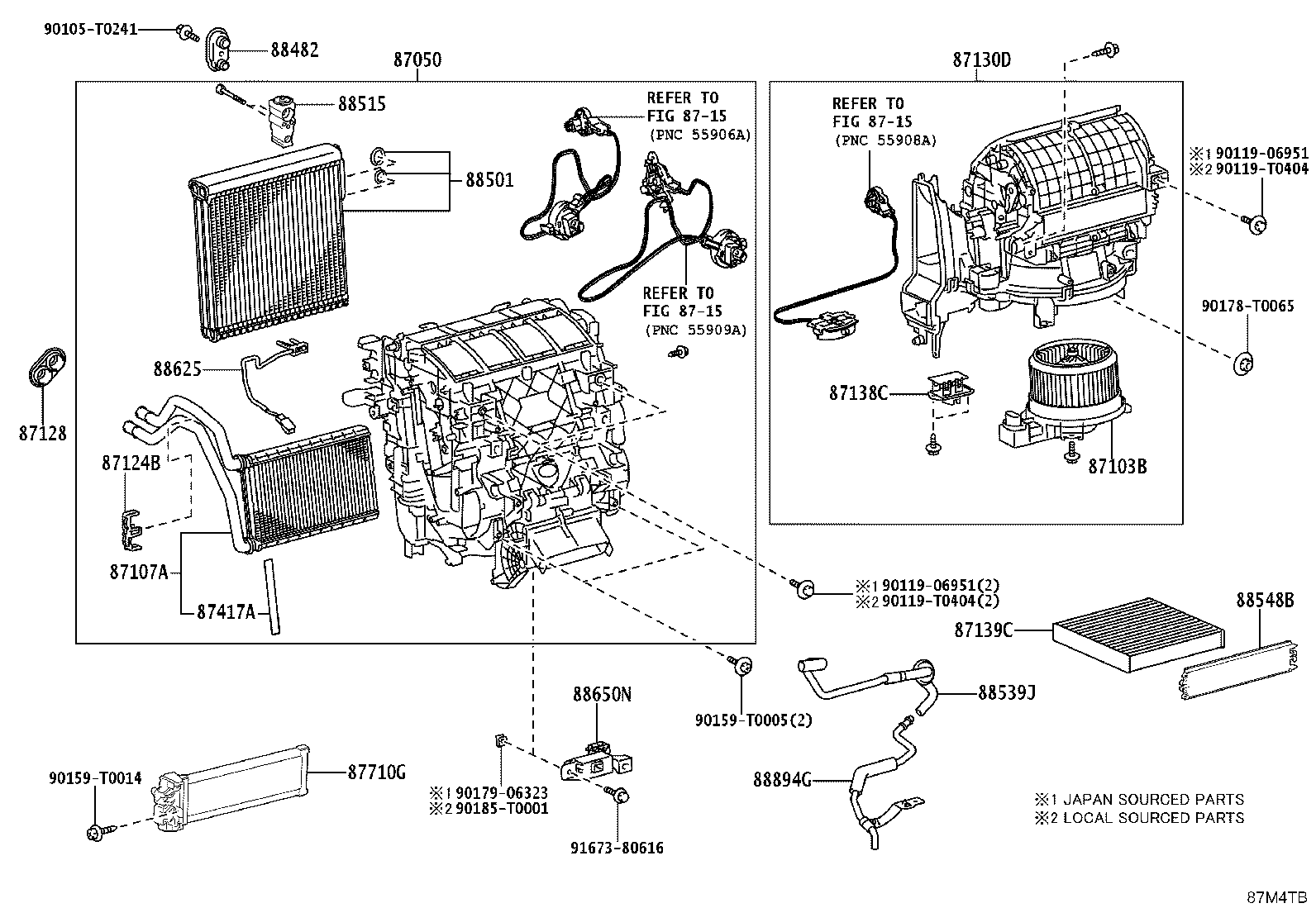

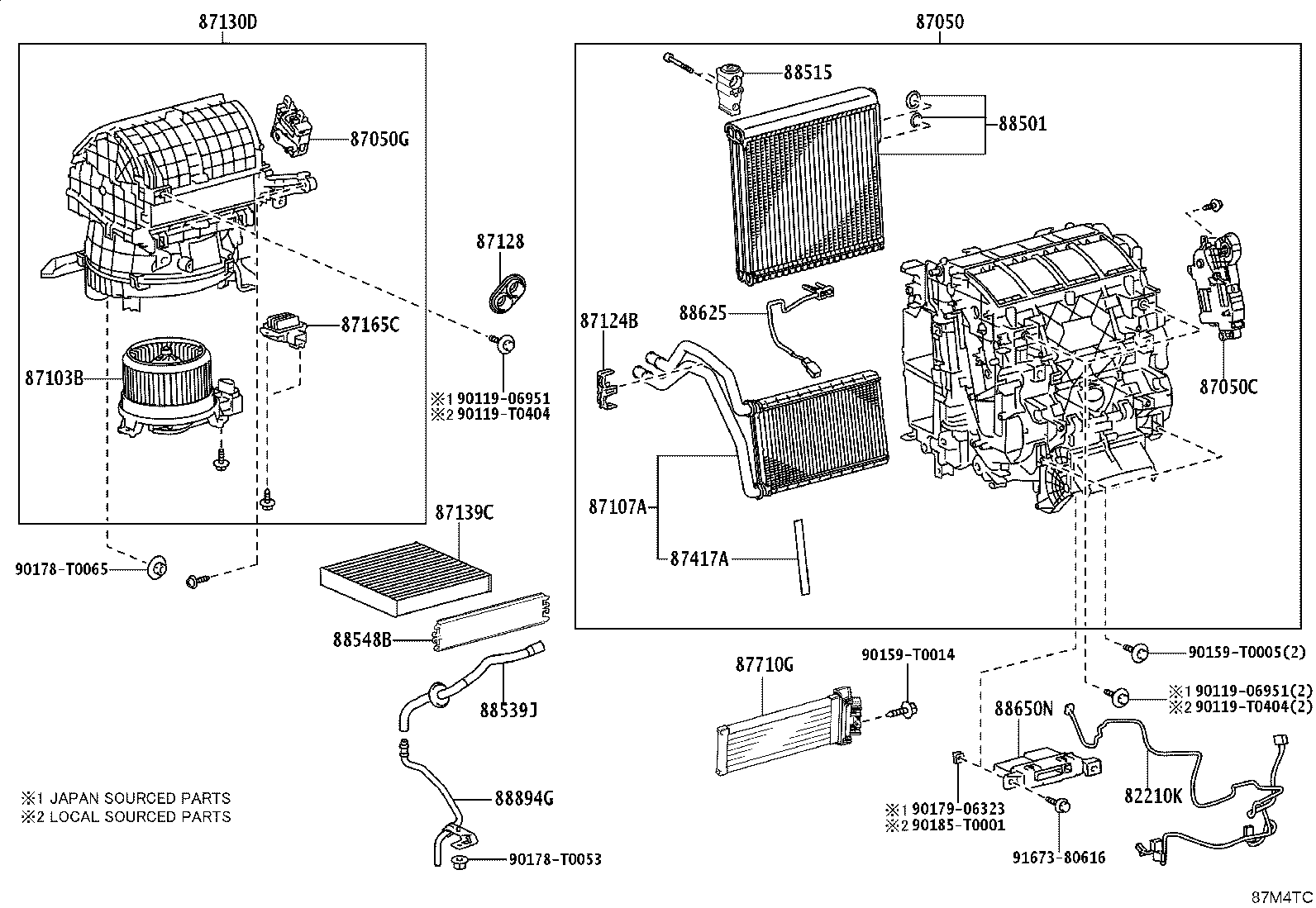

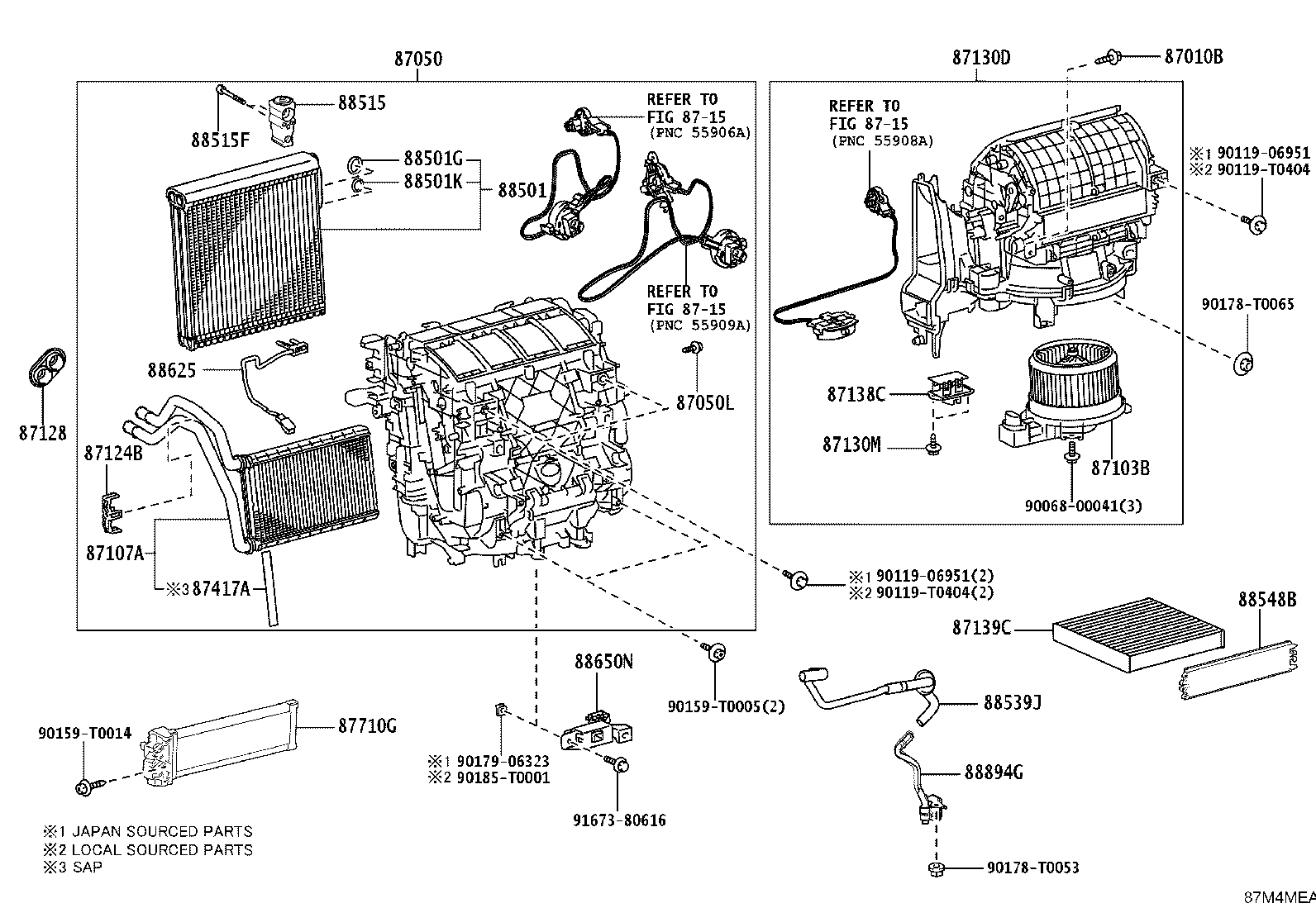

Heating & Air Conditioning - Cooler Unit
28 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 82210K | Harness Assy, Air Conditioner |
| 87010B | Screw(FOR AIR CONDITIONER UNIT) |
| 87050 | Radiator Assy, Air Conditioner |
| 87050C | Damper Servo Sub-assy, Air Conditioner Radiator, NO.1 |
| 87050G | Damper Servo Sub-assy, Air Conditioner Radiator, NO.5 |
| 87050L | Screw(FOR AIR CONDITIONER RADIATOR) |
| 87103B | Motor Sub-assy, Blower W/Fan |
| 87107A | Unit Sub-assy, Heater Radiator |
| 87124B | Clamp, Heater |
| 87128 | Grommet, Heater |
| 87130D | Blower Assy |
| 87130M | Screw(FOR BLOWER) |
| 87138C | Resistor, Blower |
| 87139C | Filter, Clean Air |
| 87165C | Control, Blower Motor |
| 87417A | Packing, Air Duct |
| 87710G | Quick Heater Assy |
| 88482 | Cap, Cooler |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88501G | O-ring, Cooler Evaporator NO.1(SUCTION) |
| 88501K | O-ring, Cooler Evaporator NO.1(LIQUID) |
| 88515 | Valve, Cooler Expansion |
| 88515F | Bolt(FOR COOLER EXPANSION VALVE) |
| 88539J | Hose, Drain Cooler |
| 88548B | Case, Air Filter |
| 88625 | Thermistor, Cooler, NO.1 |
| 88650N | Amplifier Assy, Air Conditioner |
| 88894G | Connector, Drain Hose |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
