Toyota Hilux (VWP)

1988-08 → 1997-02 · chassis YN85,LN85 · catalogue 673550 · Europe

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

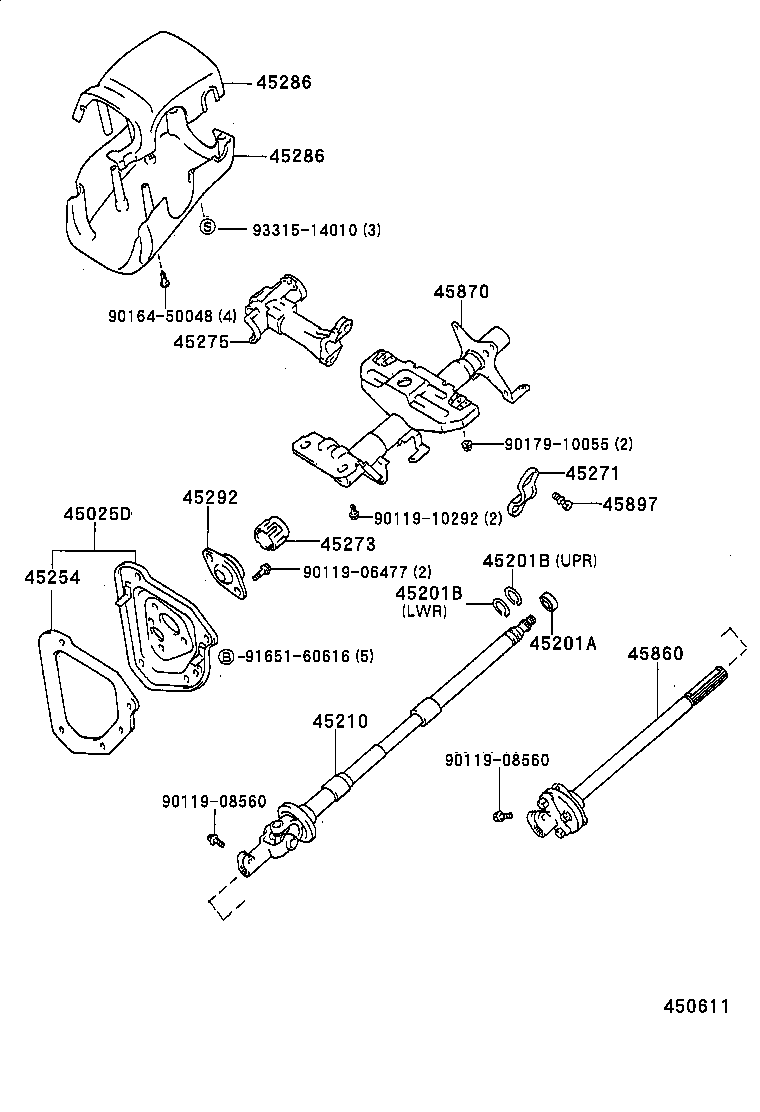

Exploded illustration 450611 45286 — COVER, STEERING COLUMN (10 parts) 45286 — COVER, STEERING COLUMN (10 parts) 9331514010 — not listed in this catalogue 45870 — TUBE ASSY, STEERING COLUMN (5 parts) 9016450048 — not listed in this catalogue 45275 — BRACKET, STEERING COLUMN, UPPER (2 parts) 9017910055 — not listed in this catalogue 45271 — CLAMP, STEERING COLUMN, UPPER (2 parts) 45292 — SEAL, MAIN SHAFT LOWER DUST (1 parts) 45897 — BOLT, STEERING LOCK SET (1 parts) 45025D — COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 (2 parts) 9011910292 — not listed in this catalogue 45273 — BUSH, STEERING MAIN SHAFT (1 parts) 45201B — RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) (4 parts) 9011906477 — not listed in this catalogue 45254 — SHIELD, STEERING COLUMN HOLE (2 parts) 45201B — RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) (4 parts) 45201A — BEARING(FOR STEERING MAIN SHAFT) (6 parts) 45860 — SHAFT ASSY, STEERING INTERMEDIATE, NO.2 (5 parts) 9165160616 — not listed in this catalogue 45210 — SHAFT ASSY, STEERING MAIN (3 parts) 9011908560 — not listed in this catalogue 9011908560 — not listed in this catalogue
450611 · 15 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
44 parts on this figure
Part number Description Fitment Price
45025D — Cover Sub-assy, Steering Column Hole, NO.1
45025-35220 Cover Sub-assy, Steering Column Hole, NO.1
1989-07 → 1997-02 ended
LN85,YN85 VWP RHD —
45025-35230 Cover Sub-assy, Steering Column Hole, NO.1
1989-01 → 1997-02 ended
LN85,YN85 VWP LHD —
45201A — Bearing(FOR STEERING MAIN SHAFT)
90363-18005 Bearing(FOR STEERING MAIN SHAFT)
1989-01 → 1989-11 ended
LN85,YN85 VWP —
90363-18007 Bearing(FOR STEERING MAIN SHAFT)
1989-11 → 1990-01 ended
LN85,YN85 VWP —
90363-18009 note Bearing(FOR STEERING MAIN SHAFT)
1994-03 → 1997-02 ended
LN85,YN85 VWP LHD —
90363-18010 Bearing(FOR STEERING MAIN SHAFT)
1990-01 → 1993-03 ended
LN85,YN85 VWP —
90363-18011 Bearing(FOR STEERING MAIN SHAFT)
1993-03 → 1997-02 ended
LN85,YN85 VWP —
90363-18011 note Bearing(FOR STEERING MAIN SHAFT)
1994-03 → 1997-02 ended
LN85,YN85 VWP LHD —
45201B — Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
90520-17042 note Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1989-01 → 1997-02 ended
LN85,YN85 VWP —
90520-17042 note Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1994-03 → 1997-02 ended
LN85,YN85 VWP LHD —
90520-17196 note Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1989-01 → 1991-10 ended
LN85,YN85 VWP —
90520-17269 note Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1989-01 → 1997-02 ended
LN85,YN85 VWP —
45210 — Shaft Assy, Steering Main
45210-35140 Shaft Assy, Steering Main
1989-01 → 1991-10 ended
LN85,YN85 VWP —
45210-35160 Shaft Assy, Steering Main
1991-10 → 1997-02 ended
LN85,YN85 VWP —
45210-35170 note Shaft Assy, Steering Main
1994-03 → 1997-02 ended
LN85,YN85 VWP LHD —
45254 — Shield, Steering Column Hole
45254-35080 Shield, Steering Column Hole
1989-07 → 1997-02 ended
LN85,YN85 VWP RHD —
45254-35110 Shield, Steering Column Hole
1989-01 → 1997-02 ended
LN85,YN85 VWP LHD —
45271 — Clamp, Steering Column, Upper
45271-12050 Clamp, Steering Column, Upper
1989-01 → 1997-02 ended
LN85,YN85 VWP —
45271-12060 note Clamp, Steering Column, Upper
1994-03 → 1997-02 ended
LN85,YN85 VWP LHD —
45273 — Bush, Steering Main Shaft
45273-16010 Bush, Steering Main Shaft
1989-01 → 1997-02 ended
LN85,YN85 VWP —
45275 — Bracket, Steering Column, Upper
45280-35190 Bracket, Steering Column, Upper
1989-01 → 1997-02 ended
LN85,YN85 VWP —
45280-35240 note Bracket, Steering Column, Upper
1994-03 → 1997-02 ended
LN85,YN85 VWP LHD —
45286 — Cover, Steering Column
45286-35260-B0 note Cover, Steering Column
1989-01 → 1997-02 ended
LN85,YN85 VWP —
45286-35260-E0 note Cover, Steering Column
1989-01 → 1991-10 ended
LN85,YN85 VWP —
45286-35260-J0 note Cover, Steering Column
1989-01 → 1994-10 ended
LN85,YN85 VWP —
45286-35280-03 note Cover, Steering Column
1994-03 → 1997-02 ended
LN85,YN85 VWP LHD —
45286-35280-04 note Cover, Steering Column
1994-03 → 1994-10 ended
LN85,YN85 VWP LHD —
45287-35200-B0 note Cover, Steering Column
1989-01 → 1997-02 ended
LN85,YN85 VWP —
45287-35200-E0 note Cover, Steering Column
1989-01 → 1991-10 ended
LN85,YN85 VWP —
45287-35200-J0 note Cover, Steering Column
1989-01 → 1994-10 ended
LN85,YN85 VWP —
45287-35210-03 note Cover, Steering Column
1994-03 → 1997-02 ended
LN85,YN85 VWP LHD —
45287-35210-04 note Cover, Steering Column
1994-03 → 1994-10 ended
LN85,YN85 VWP LHD —
45292 — Seal, Main Shaft Lower Dust
45292-35050 Seal, Main Shaft Lower Dust
1989-01 → 1997-02 ended
LN85,YN85 VWP —
45860 — Shaft Assy, Steering Intermediate, NO.2
45860-35030 Shaft Assy, Steering Intermediate, NO.2
1989-01 → 1991-10 ended
LN85,YN85 VWP —
45860-35040 note Shaft Assy, Steering Intermediate, NO.2
1989-01 → 1991-10 ended
LN85,YN85 VWP LHD —
45860-35050 Shaft Assy, Steering Intermediate, NO.2
1991-10 → 1997-02 ended
YN85 VWP;LN85 VWP LHD —
45860-35060 note Shaft Assy, Steering Intermediate, NO.2
1991-10 → 1997-02 ended
LN85,YN85 VWP LHD —
45860-35060 Shaft Assy, Steering Intermediate, NO.2
1992-10 → 1997-02 ended
LN85 VWP RHD —
45870 — Tube Assy, Steering Column
45870-35111 Tube Assy, Steering Column
1989-07 → 1991-10 ended
YN85 VWP RHD —
45870-35121 Tube Assy, Steering Column
1989-01 → 1991-10 ended
LN85,YN85 VWP LHD —
45870-35250 Tube Assy, Steering Column
1991-10 → 1997-02 ended
LN85,YN85 VWP RHD —
45870-35260 note Tube Assy, Steering Column
1994-03 → 1997-02 ended
LN85,YN85 VWP LHD —
45870-35280 Tube Assy, Steering Column
1991-10 → 1997-02 ended
LN85,YN85 VWP LHD —
45897 — Bolt, Steering Lock Set
45897-12020 Bolt, Steering Lock Set
1989-01 → 1997-02 ended
LN85,YN85 VWP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
