Toyota Hilux (VWP)

1988-08 → 1997-02 · chassis YN85,LN85 · catalogue 673550 · Europe

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

33 part groups · 2 illustrations

Illustrations

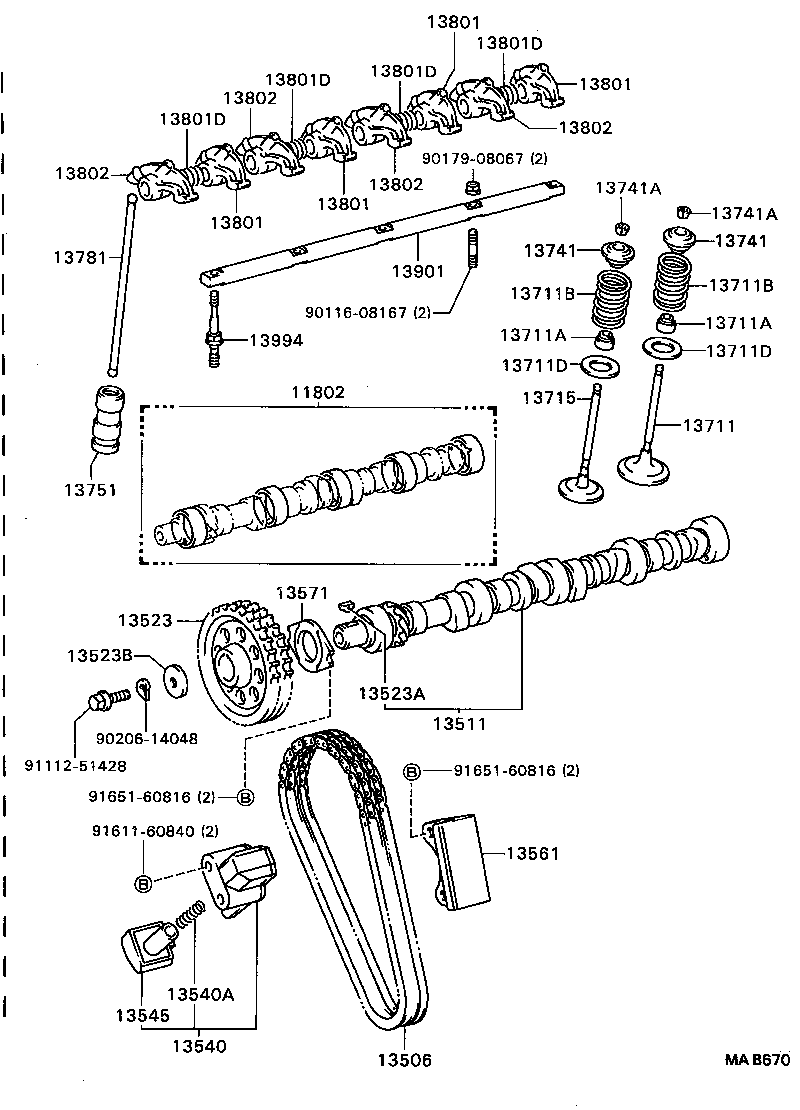

Figure MAB227F MAB227F 1989-01 → 1997-02 Figure MAB670 MAB670 1989-01 → 1994-10

Part groups

PNCDescription
11802 Bearing Set, Camshaft
13502 Idler Sub-assy, Timing Belt, NO.2
13505 Idler Sub-assy, Timing Belt, NO.1
13505A Spring, Tension(FOR IDLER)
13506 Chain Sub-assy
13511 Camshaft
13523 Gear OR Sprocket, Camshaft Timing
13523A Key, Woodruff(FOR TIMING GEAR)
13523B Washer, Plate(FOR TIMING GEAR)
13523P Pulley, Camshaft Timing
13540 Tensioner Assy, Chain, NO.1
13540A Spring, Compression(FOR CHAIN TENSIONER)
13545 Plunger, Chain Tensioner
13558 Bracket, Spring(FOR IDLER)
13561 Damper, Chain Vibration, NO.1
13568 Belt, Timing
13571 Plate, Camshaft Thrust
13613P Pulley, Injection Pump Drive
13711 Valve, Intake
13711A Seal OR Ring, O(FOR VALVE STEM OIL)
13711B Spring, Compression(FOR INNER)
13711D Washer, Plate(FOR VALVE SPRING SEAT)
13715 Valve, Exhaust
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13751 Lifter, Valve
13753 Shim, Valve Adjusting
13781 Rod, Valve Push
13801 Arm Sub-assy, Valve Rocker, NO.1
13801D Spring, Compression(FOR ROCKER ARM)
13802 Arm Sub-assy, Valve Rocker, NO.2
13901 Shaft Sub-assy, Valve Rocker, NO.1
13994 Bolt, Rocker Shaft Stud
