Toyota Hilux (VWP)

1988-08 → 1997-02 · chassis YN85,LN85 · catalogue 673550 · Europe

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

13 part groups · 2 illustrations

Illustrations

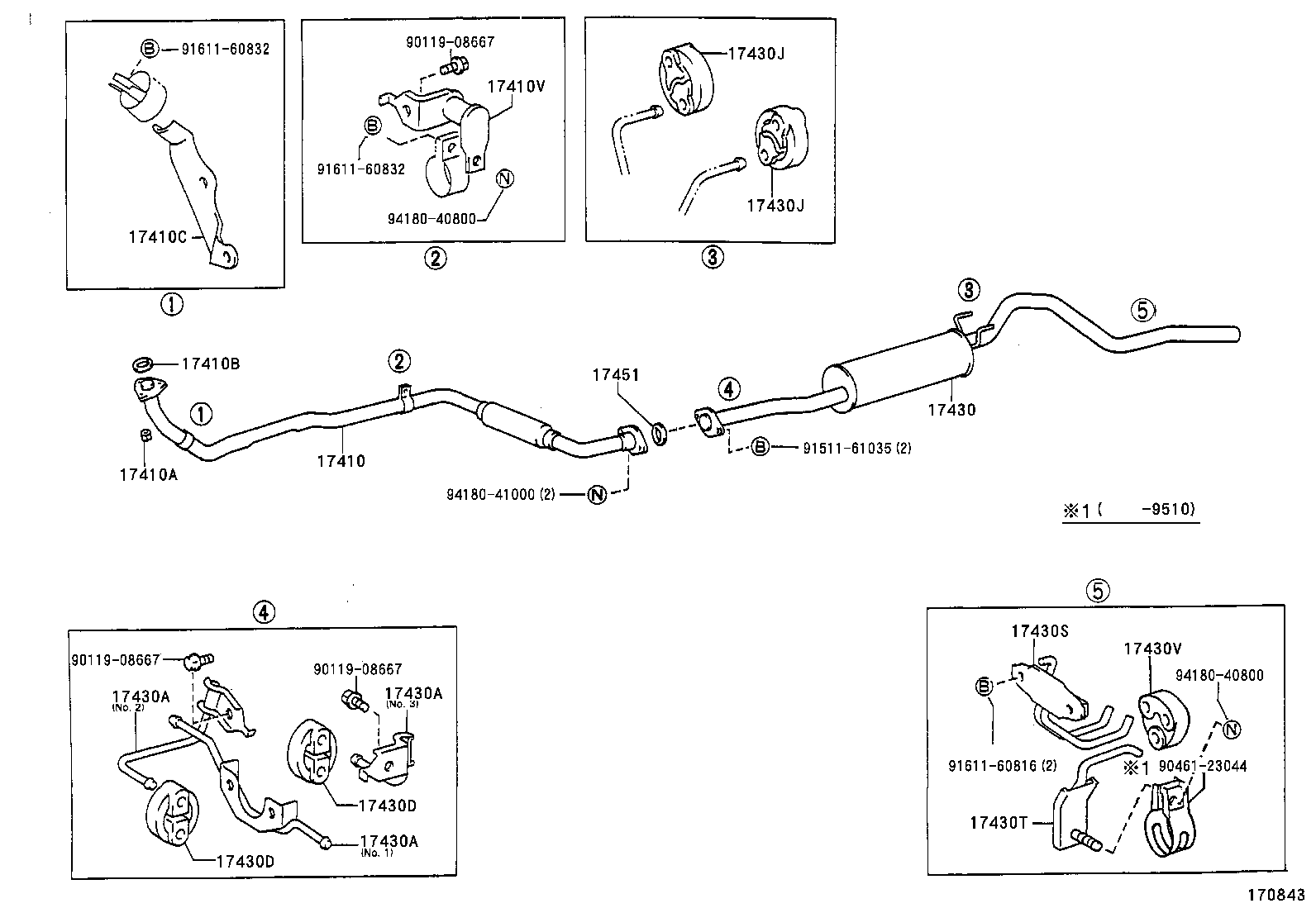

Figure 170842 170842 1989-01 → 1994-09 Figure 170843 170843 1989-01 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410C Bracket, Exhaust Pipe Front (FOR FRONT)
17410V Bracket, Exhaust Pipe Front (FOR REAR)
17430 Pipe Assy, Exhaust, Tail
17430A Bracket, Exhaust Tailpipe(FOR FRONT)
17430D Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
17430J Bolt OR Ring, Exhaust Tailpipe(FOR CENTER)
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17430T Cushion, Exhaust Tailpipe (FOR REAR)
17430V Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
17451 Gasket, Exhaust Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
