Toyota Hilux (VWP)

1988-08 → 1997-02 · chassis YN85,LN85 · catalogue 673550 · Europe

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

24 part groups · 2 illustrations

Illustrations

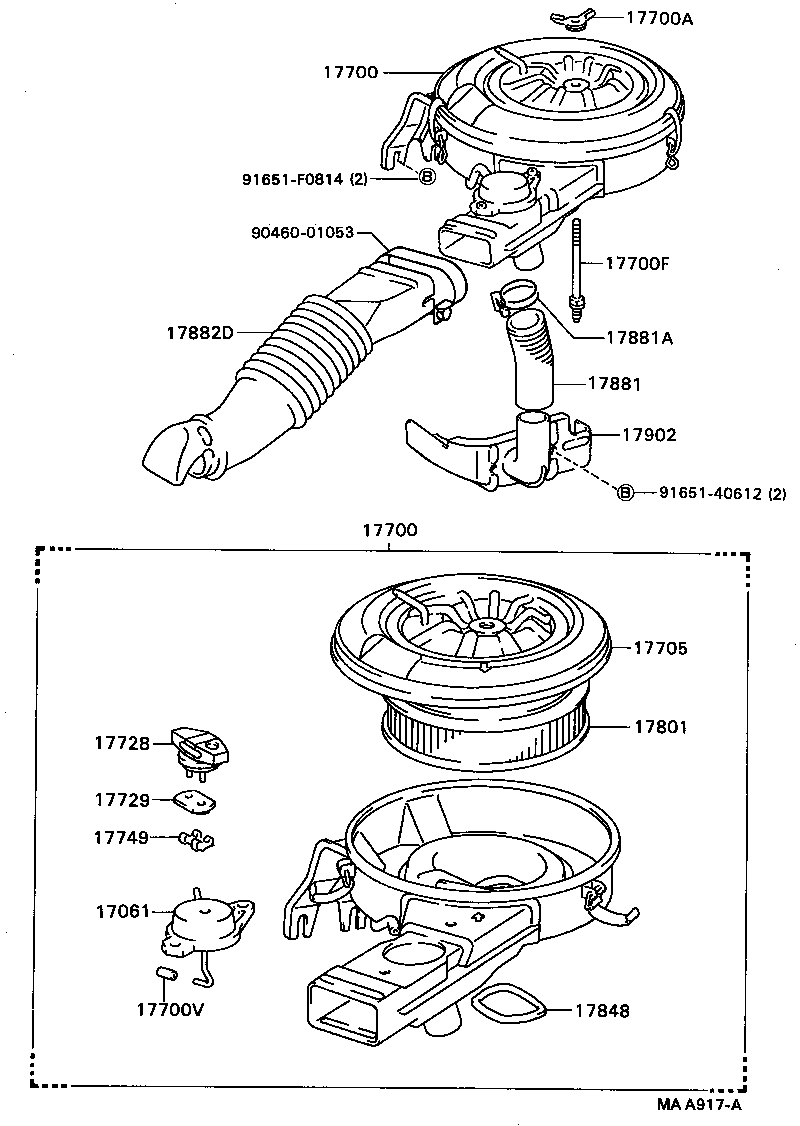

Figure 170833 170833 1989-01 → 1997-02 Figure MAA917A MAA917A 1989-01 → 1994-10

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17700V Bush(FOR AIR CLEANER)
17705 Cap Sub-assy, Air Cleaner
17728 Valve, Thermostatic
17729 Gasket, Thermostat Valve
17749 Support, Thermostat Valve
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17848 Gasket, Air Cleaner TO Carburetor
17849 Gasket, Intake Air Connector
17875 Pipe, Intake Air Connector
17878 Pipe, Intake Air Connector, NO.3
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17882D Hose, Cool Air Intake
17883 Hose, Air Cleaner, NO.3
17885 Pipe, Air Cleaner
17902 Inlet Sub-assy, Hot Air Intake, NO.1
53207B Duct Sub-assy, Cool Air
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
