Toyota Hilux (VWP)

1988-08 → 1997-02 · chassis YN85,LN85 · catalogue 673550 · Europe

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

12 part groups · 4 illustrations

Illustrations

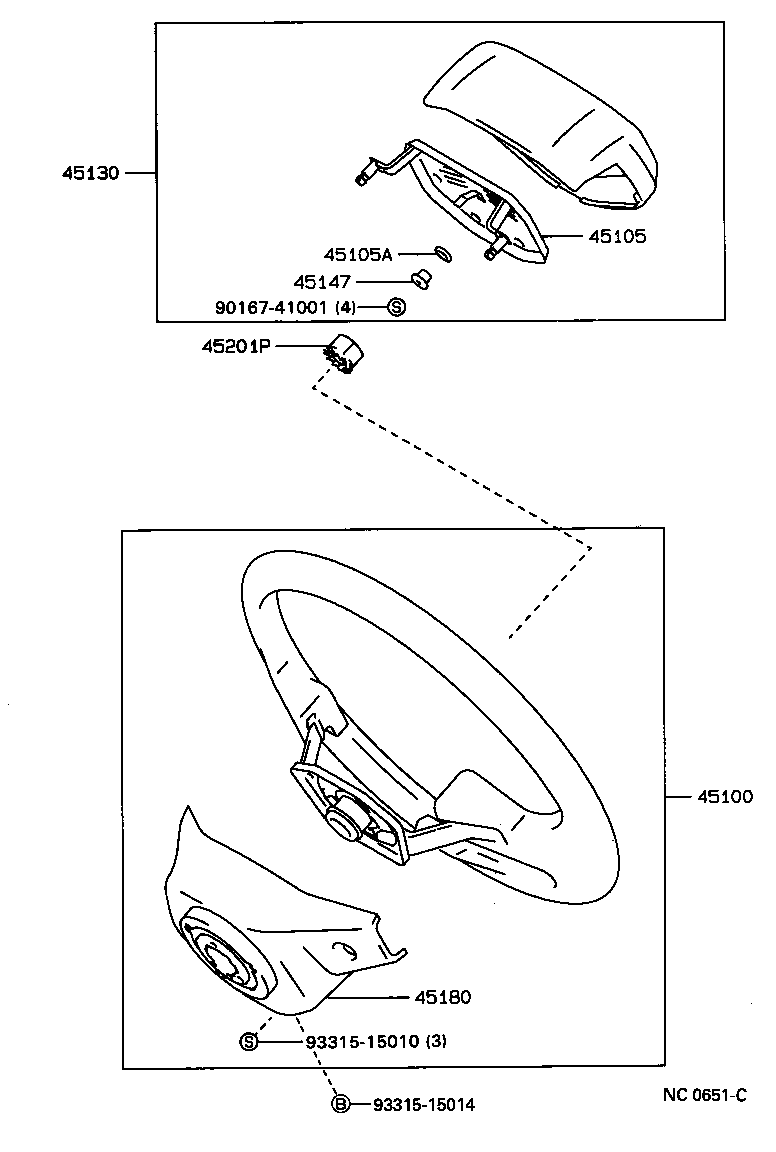

Figure 450618 450618 1989-01 → 1991-10 Figure MCN410A MCN410A 1991-10 → — Figure NC0651C NC0651C 1989-01 → 1991-10 Figure MCN925 MCN925 1991-10 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105A Cushion(FOR HORN BUTTON CONTACT PLATE)
45112 Pad, Steering Wheel
45125 Mark, Steering Wheel Pad
45130 Button Assy, Horn
45136 Plate, Horn Button Contact
45142 Seat, Horn Button Contact, NO.1
45142E Piece, Horn Contact
45147 Spacer, Horn Button
45180 Cover Sub-assy, Steering Wheel
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
