Toyota Hilux (VWP)

1988-08 → 1997-02 · chassis YN85,LN85 · catalogue 673550 · Europe

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Floor Panel & Front Floor Member

21 part groups · 2 illustrations

Illustrations

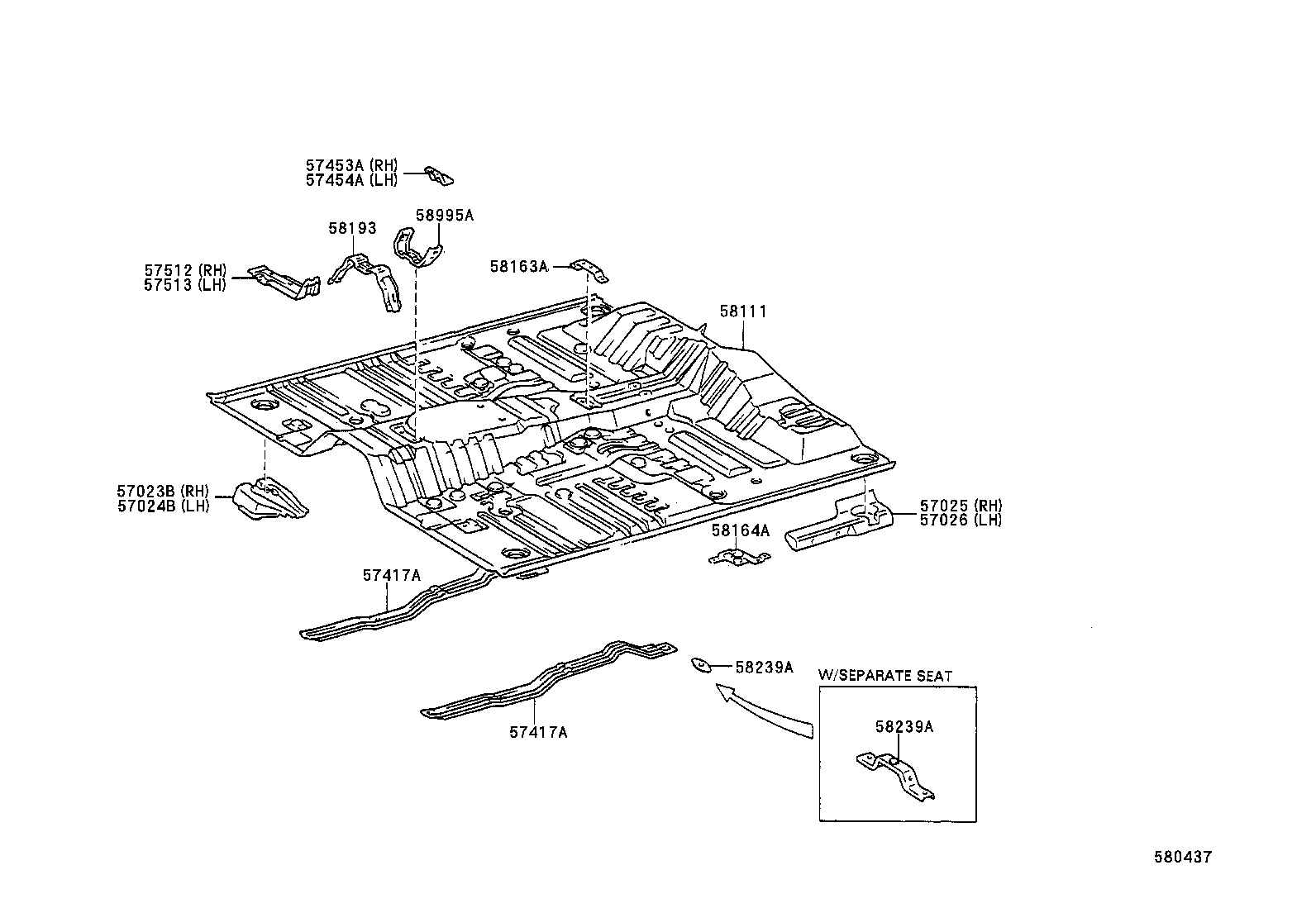

Figure 580436 580436 1989-01 → — Figure 580437 580437 1989-01 → —

Part groups

PNCDescription
57023B Bracket Sub-assy, Body Mounting, NO.2 RH
57024B Bracket Sub-assy, Body Mounting, NO.2 LH
57025 Bracket Sub-assy, Body Mounting, NO.3 RH
57026 Bracket Sub-assy, Body Mounting, NO.3 LH
57411B Member, Floor Side, Inner RH
57412B Member, Floor Side, Inner LH
57417A Reinforcement, Front Floor Under
57453A Reinforcement, Front Floor Crossmember, RH
57454A Reinforcement, Front Floor Crossmember, LH
57486A Reinforcement, Floor Side Member, NO.1 RH
57487B Reinforcement, Floor Side Member, NO.1 LH
57512 Reinforcement, Front Floor, RH
57513 Reinforcement, Front Floor, LH
58111 Pan, Front Floor
58163A Retainer, Console Box Mounting, NO.1
58164A Retainer, Console Box Mounting
58193 Bracket, Instrument Panel Brace Mounting
58239A Plate, Belt Anchor Nut
58286 Boot, Shift & Select Lever, NO.1
58287 Retainer, Shift Lever Boot
58995A Bracket, Console Box Mounting, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
