Toyota Hilux (VWP)

1988-08 → 1997-02 · chassis YN85,LN85 · catalogue 673550 · Europe

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

14 part groups · 2 illustrations

Illustrations

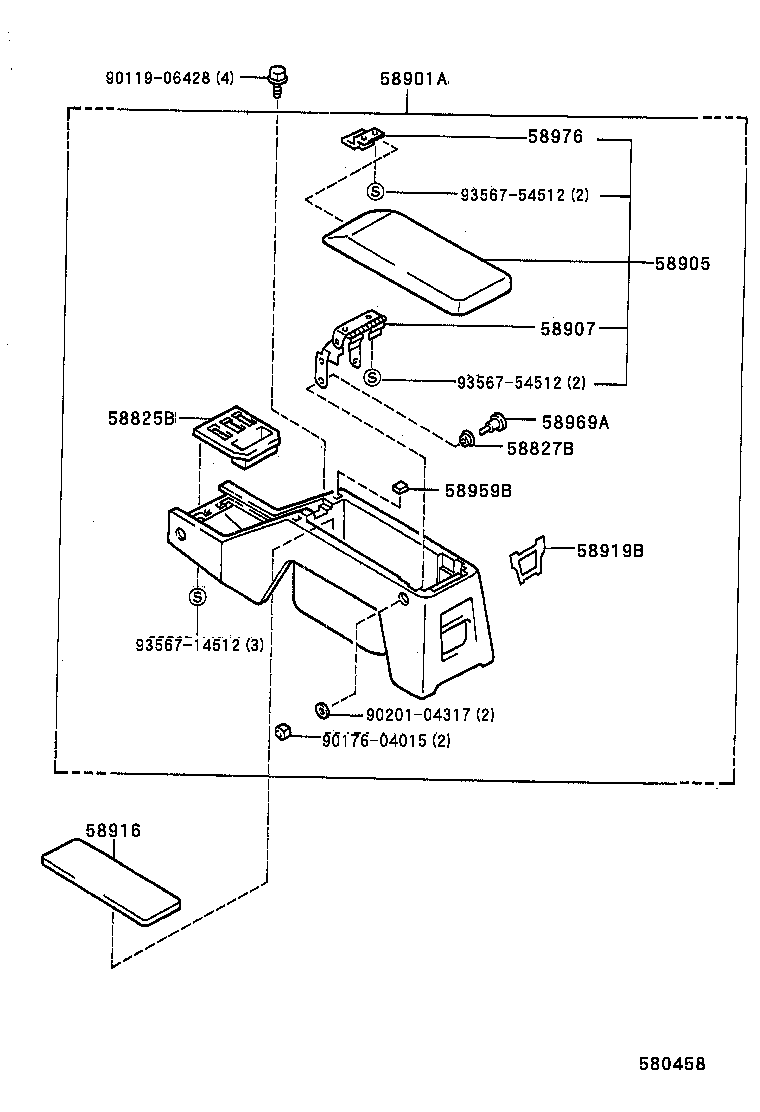

Figure 580457 580457 1989-01 → — Figure 580458 580458 1990-08 → —

Part groups

PNCDescription
58808 Cover Sub-assy, Shifting Hole
58811A Box, Console, Front
58825A Pocket, Console Box
58825B Pocket, Console Box
58827B Spacer, Console Compartment Door Stopper
58901A Box Sub-assy, Console, Rear
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58916 Mat, Box Bottom
58919B Plate, Console Box
58959B Cushion, Console Compartment Door
58969A Retainer, Console Compartment Door Stopper
58976 Striker, Console Compartment Door Lock
58991 Bracket, Console Box Mounting, Upper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
