Toyota Hilux (VWP)

1988-08 → 1997-02 · chassis YN85,LN85 · catalogue 673550 · Europe

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

28 part groups · 3 illustrations

Illustrations

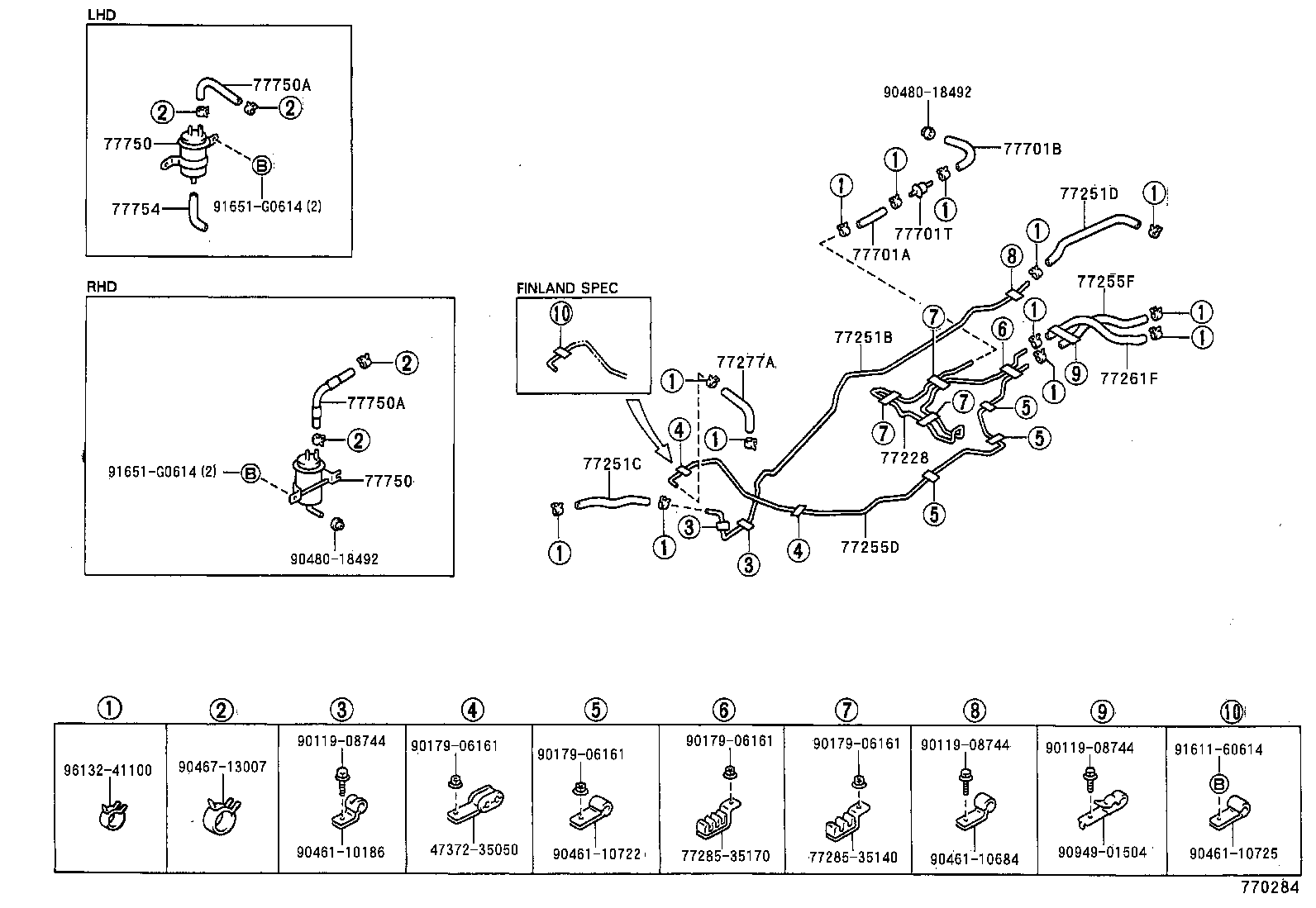

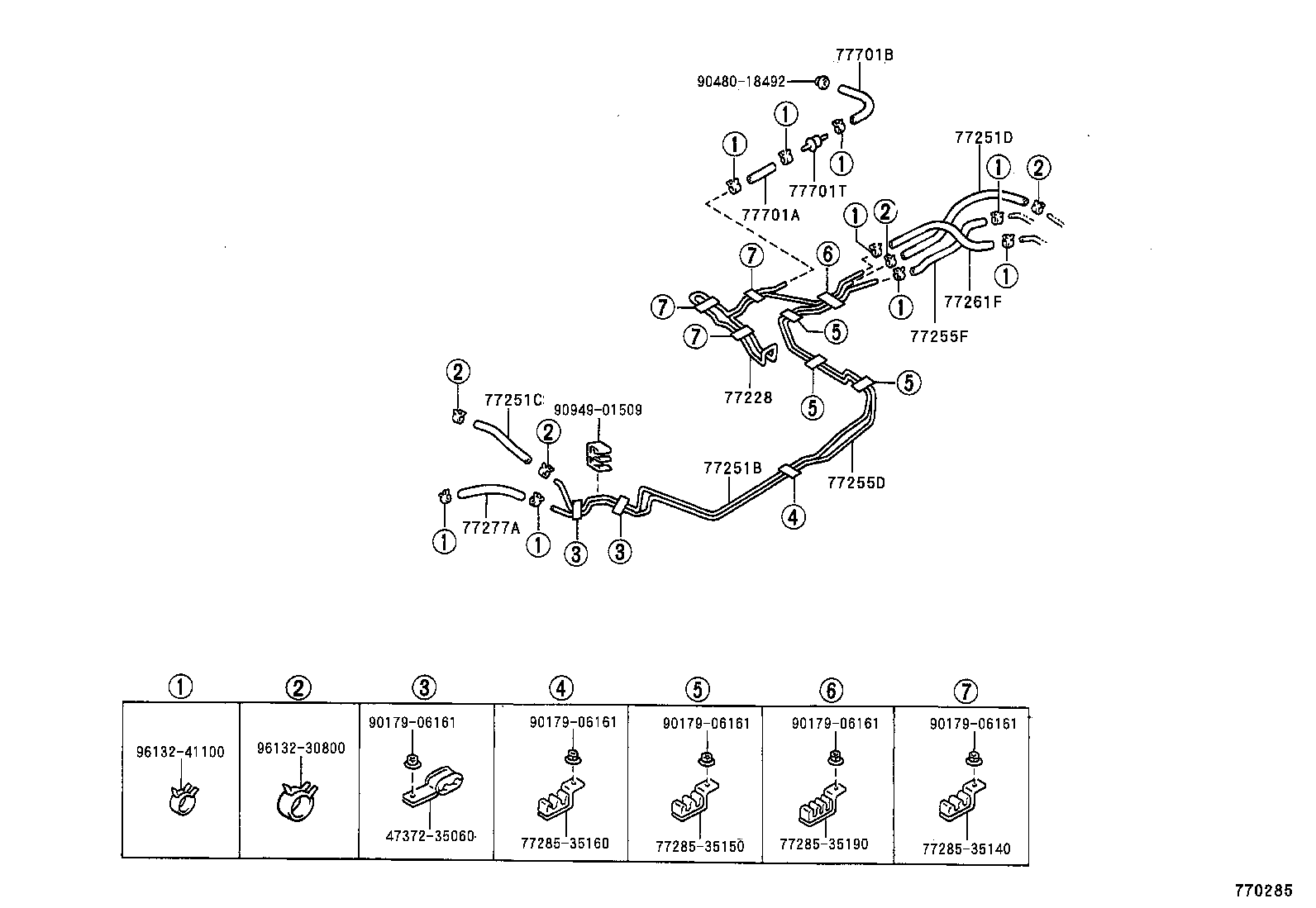

Figure 770283 770283 1989-01 → — Figure 770284 770284 1989-01 → — Figure 770285 770285 1989-01 → —

Part groups

PNCDescription
77023 Filter Sub-assy, Fuel Suction Tube
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77100D Hose, Fuel, NO.1(FOR FUEL TANK)
77161C Protector, Fuel Tank, Lower
77169A Gasket, Fuel Suction Tube Set
77201 Pipe Sub-assy, Fuel Tank Inlet
77203A Tube Sub-assy, Fuel Suction
77213B Hose, Fuel Tank TO Filler Pipe
77228 Tube, Fuel Tank Evaporation Vent, NO.2
77251B Tube, Fuel Main
77251C Hose, Fuel, NO.1(FOR FUEL MAIN TUBE)
77251D Hose, Fuel, NO.2(FOR FUEL MAIN TUBE)
77255D Tube, Fuel Return
77255F Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
77261F Hose, Fuel, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77305A Lid Sub-assy, Fuel Filler Opening
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77358A Stopper, Fuel Filler Opening Lid
77701A Hose, Fuel, NO.1 (FOR BREATHER VALVE)
77701B Hose, Fuel, NO.2 (FOR BREATHER VALVE)
77701T Valve, Check (FOR MAIN FUEL TANK)
77750 Canister Assy, Charcoal
77750A Hose, Fuel, NO.1 (FOR CHARCOAL CANISTER)
77754 Hose, Charcoal Canister Outlet, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
