Toyota Hilux (VWP)
1988-08 → 1997-02 · chassis YN85,LN85 · catalogue 673550 · Europe
Discontinued model
Data version 1998-04

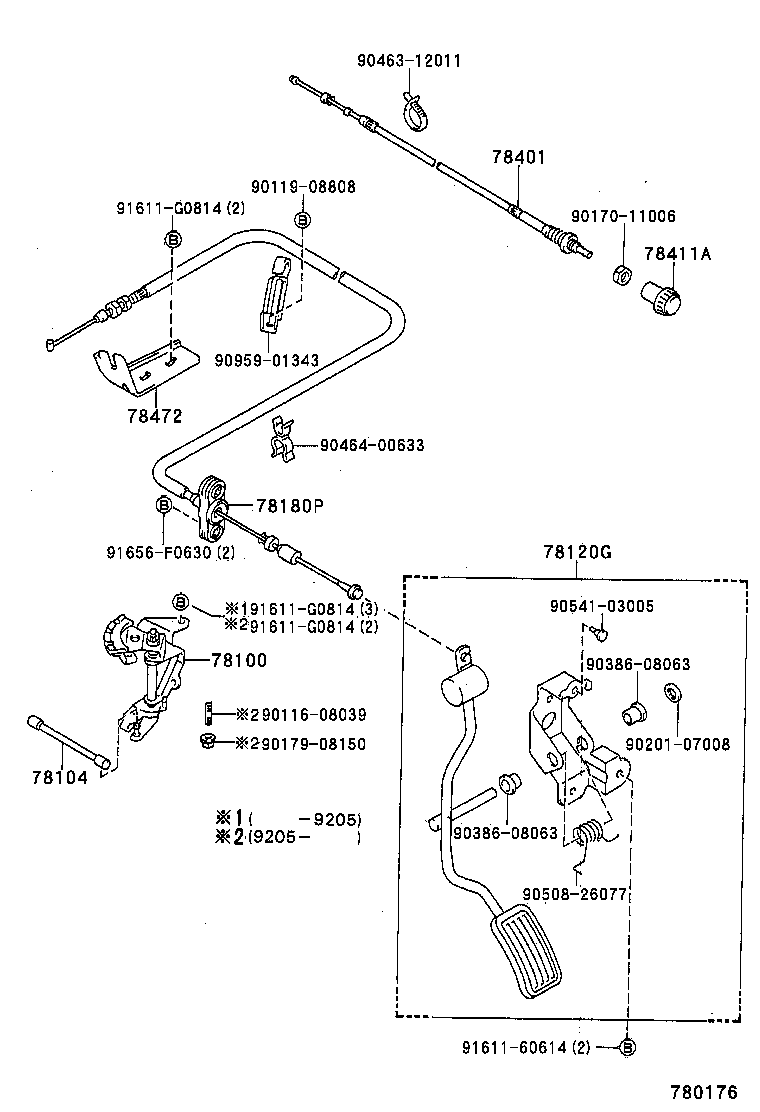

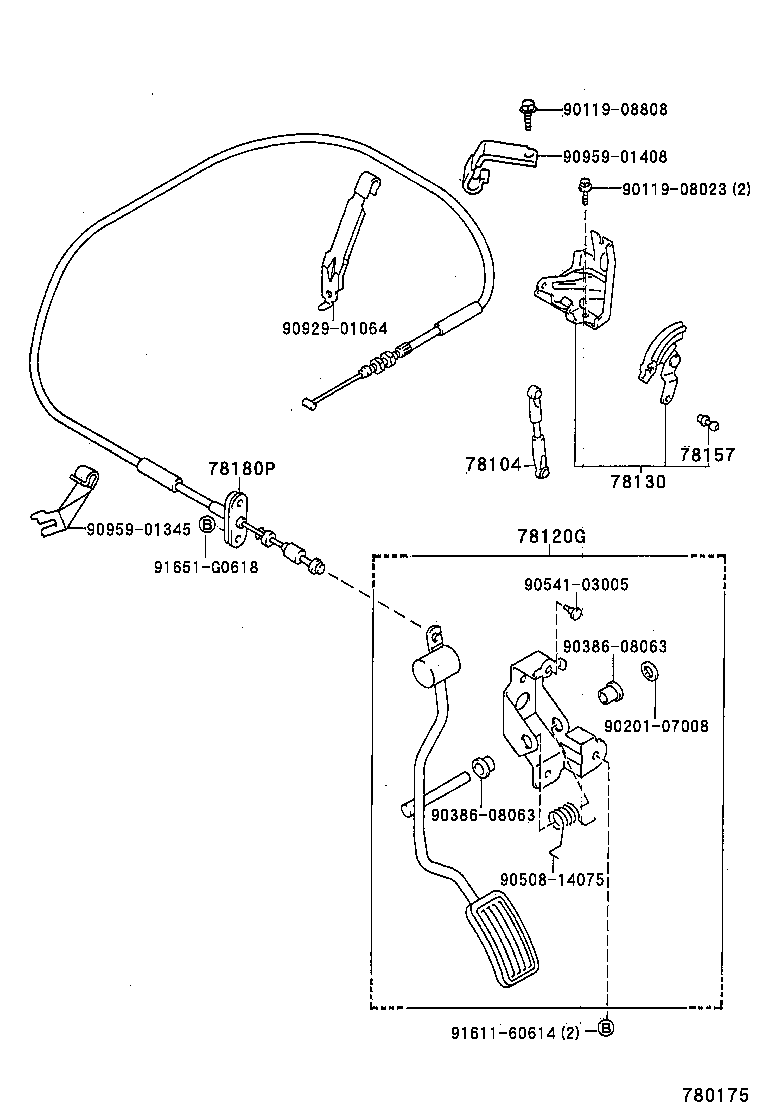

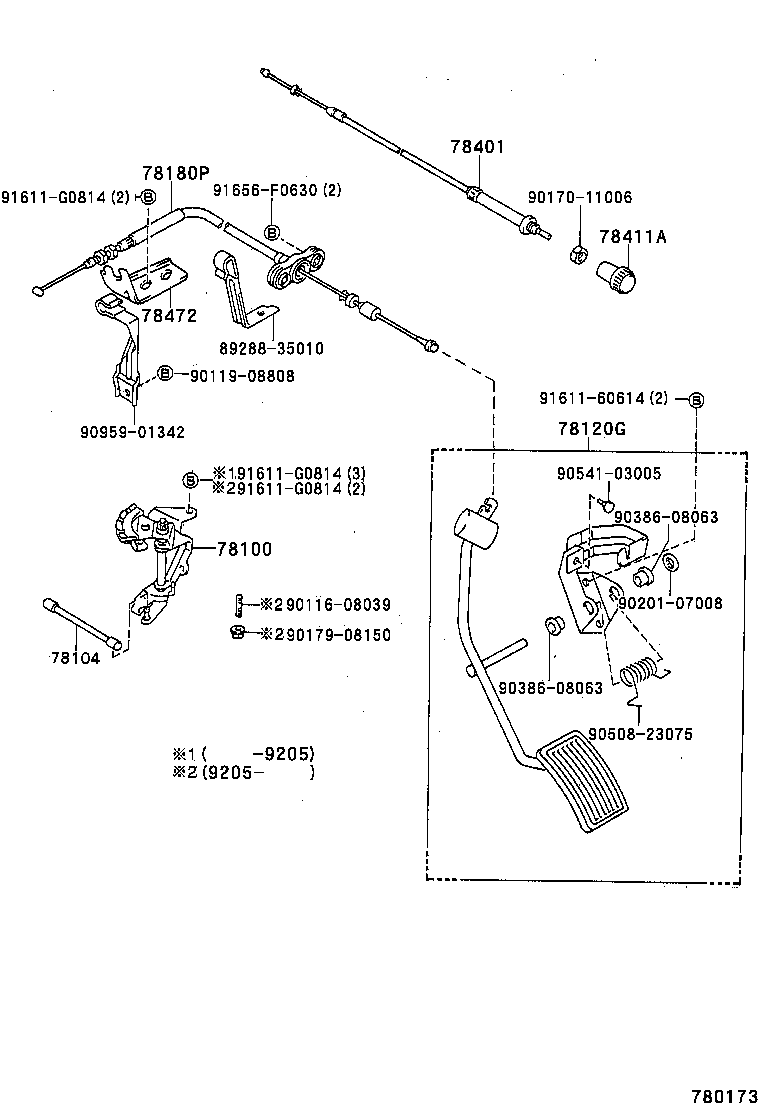

Accelerator Link
9 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 78100 | Link Assy, Accelerator |
| 78104 | Rod Sub-assy, Accelerator Connecting, NO.2 |
| 78120G | Rod Assy, Accelerator Pedal |
| 78130 | Bellcrank Assy, Accelerator |
| 78157 | Ball, Accelerator Joint |
| 78180P | Cable Assy, Accelerator Control |
| 78401 | Cable Sub-assy, Throttle Control |
| 78411A | Knob, Throttle Control Cable |
| 78472 | Support, Throttle Control Cable |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
