Toyota Hilux (VWP)

1988-08 → 1997-02 · chassis YN85,LN85 · catalogue 673550 · Europe

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

19 part groups · 14 illustrations

Illustrations

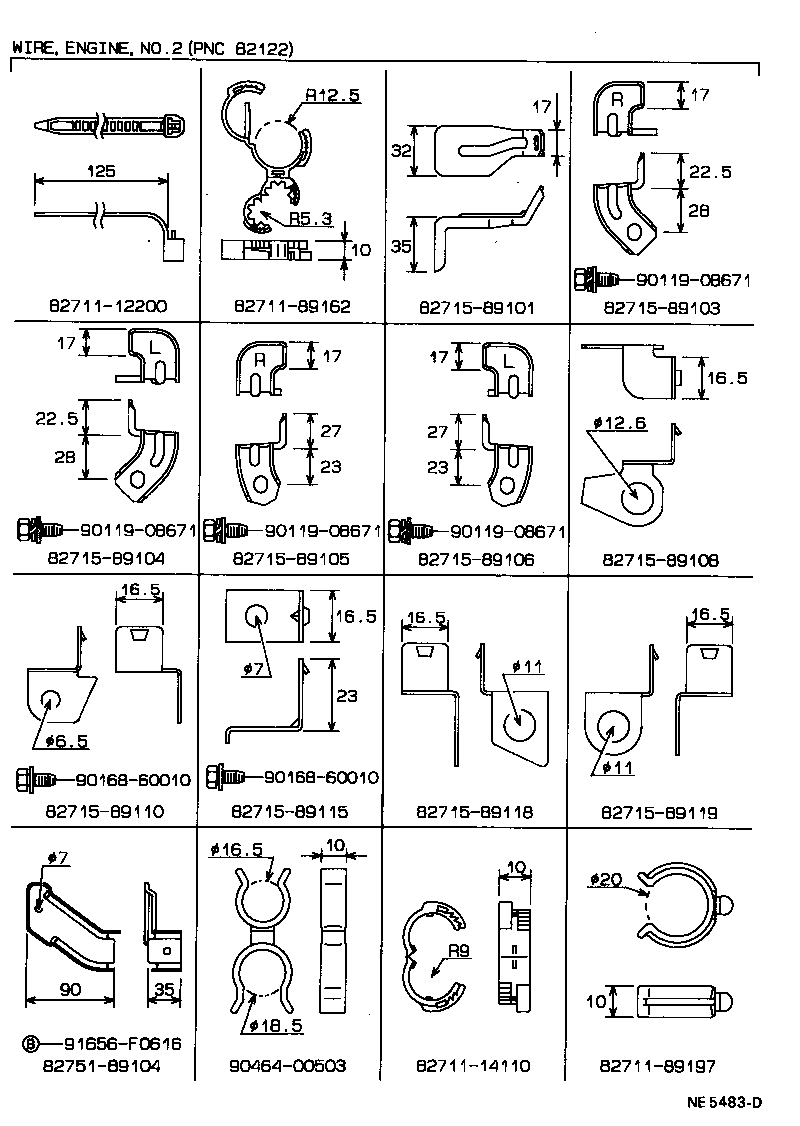

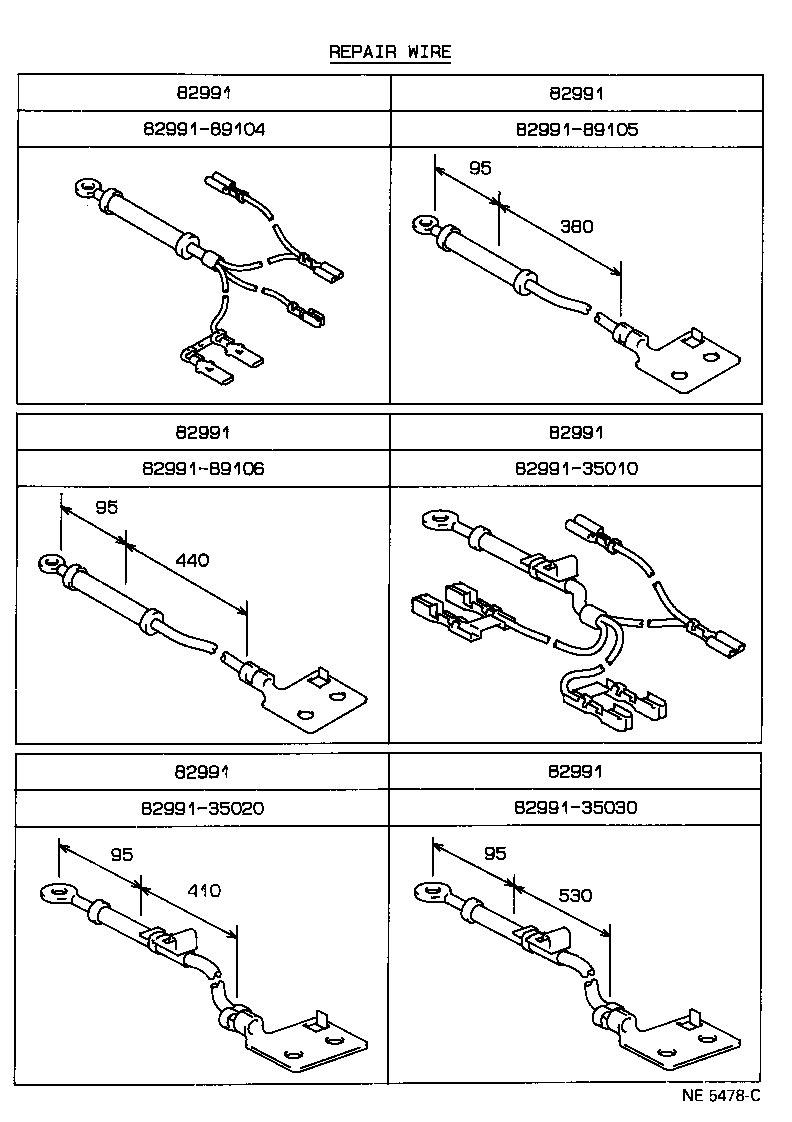

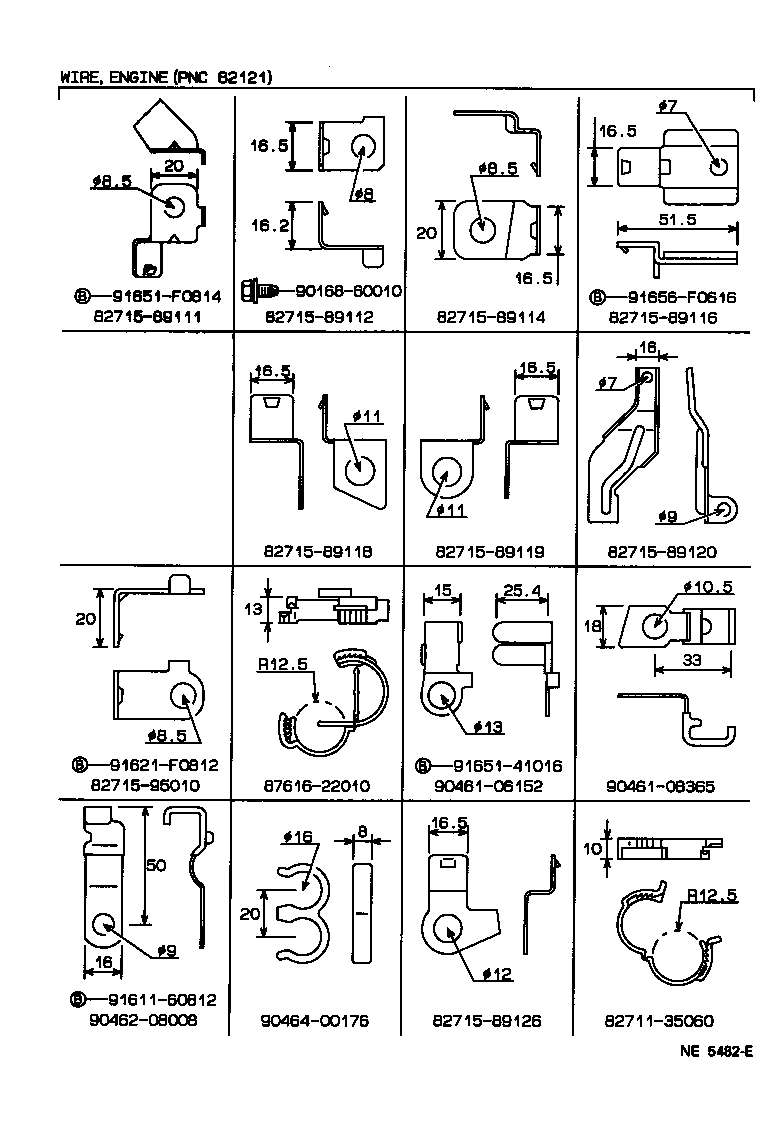

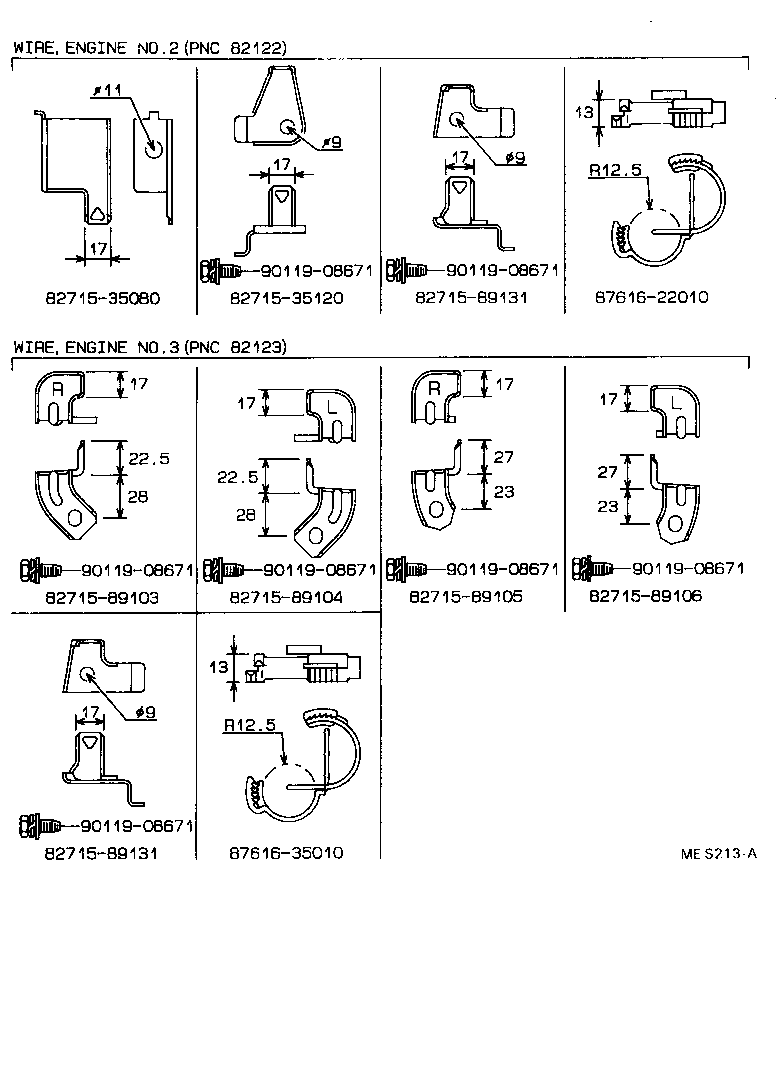

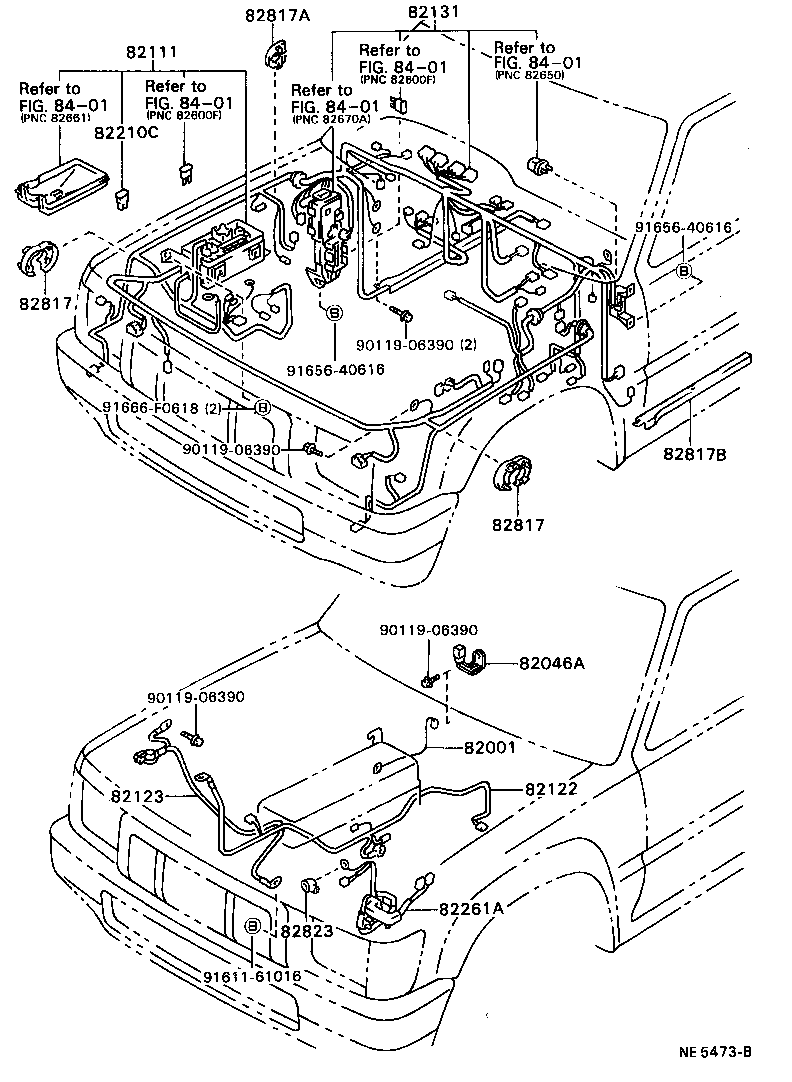

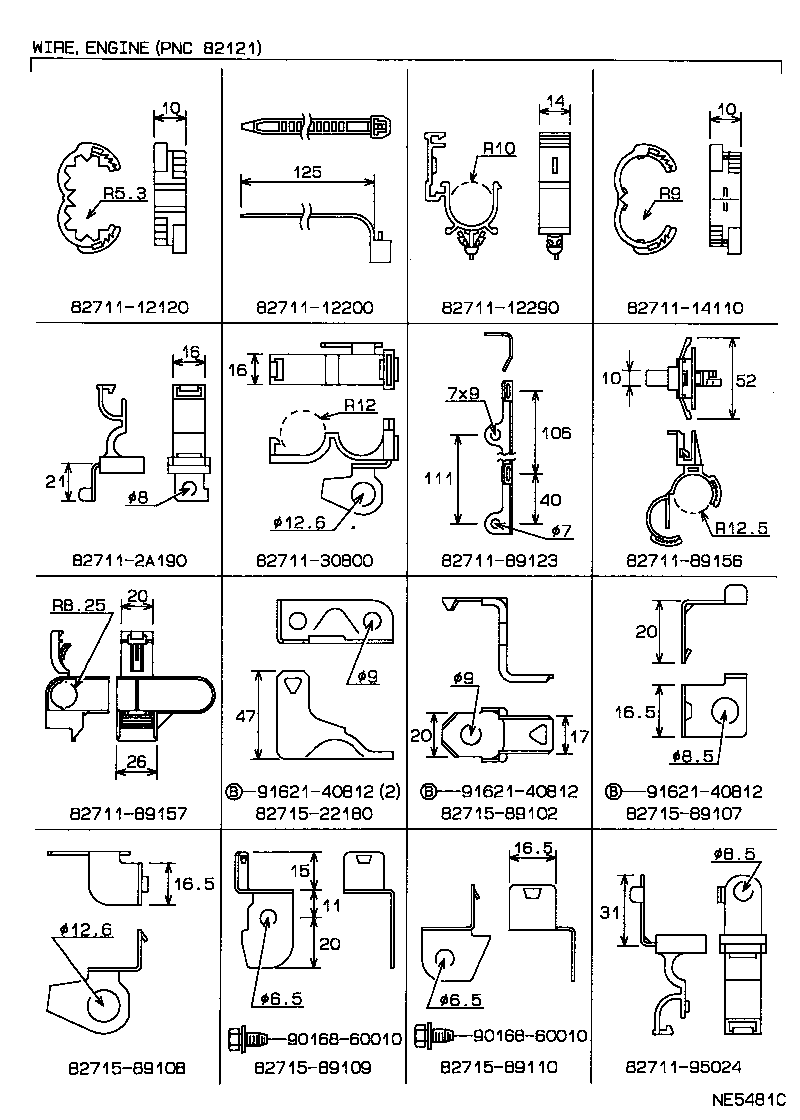

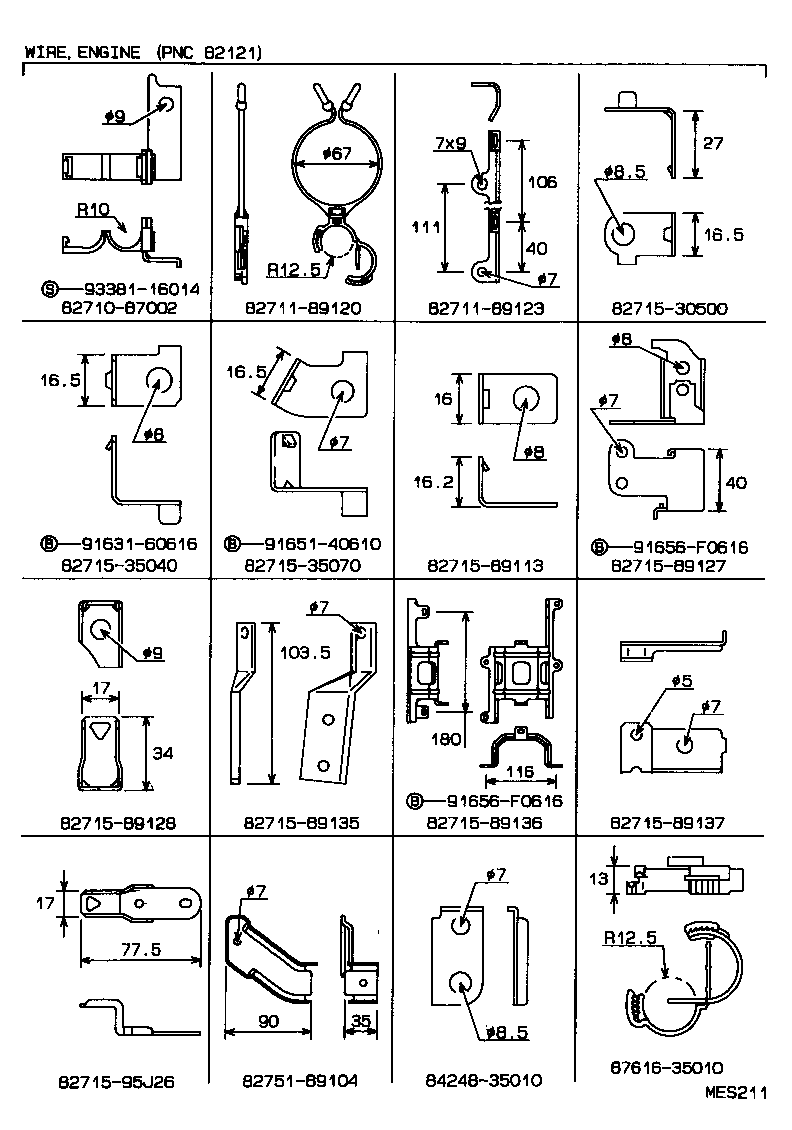

Figure 820822 820822 1989-01 → — Figure NE5473B NE5473B 1989-01 → — Figure 820823 820823 1989-01 → — Figure NE5478C NE5478C 1989-01 → — Figure MEY224 MEY224 1989-01 → — Figure MES210 MES210 1989-01 → — Figure NE5481C NE5481C 1989-01 → — Figure NE5482E NE5482E 1989-01 → — Figure MES211 MES211 1989-01 → — Figure NE5483D NE5483D 1989-01 → — Figure MES213A MES213A 1989-01 → — Figure MET801 MET801 1989-01 → — Figure MES215 MES215 1989-01 → — Figure 820824 820824 1989-01 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82046A Wire Sub-assy, Body Ground, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82131 Wire, Cowl
82164 Wire, Frame
82171 Wire, Roof, NO.1
82210C Fusible Link
82261A Wire, Alternator
82620 Block Assy, Fusible Link
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82823 Cap, Terminal, NO.1
82991 Wire, Fusible Link Repair
82991A Wire, Fusible Link
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
