Toyota Hilux (VWP)
1988-08 → 1997-02 · chassis YN85,LN85 · catalogue 673550 · Europe
Discontinued model
Data version 1998-04

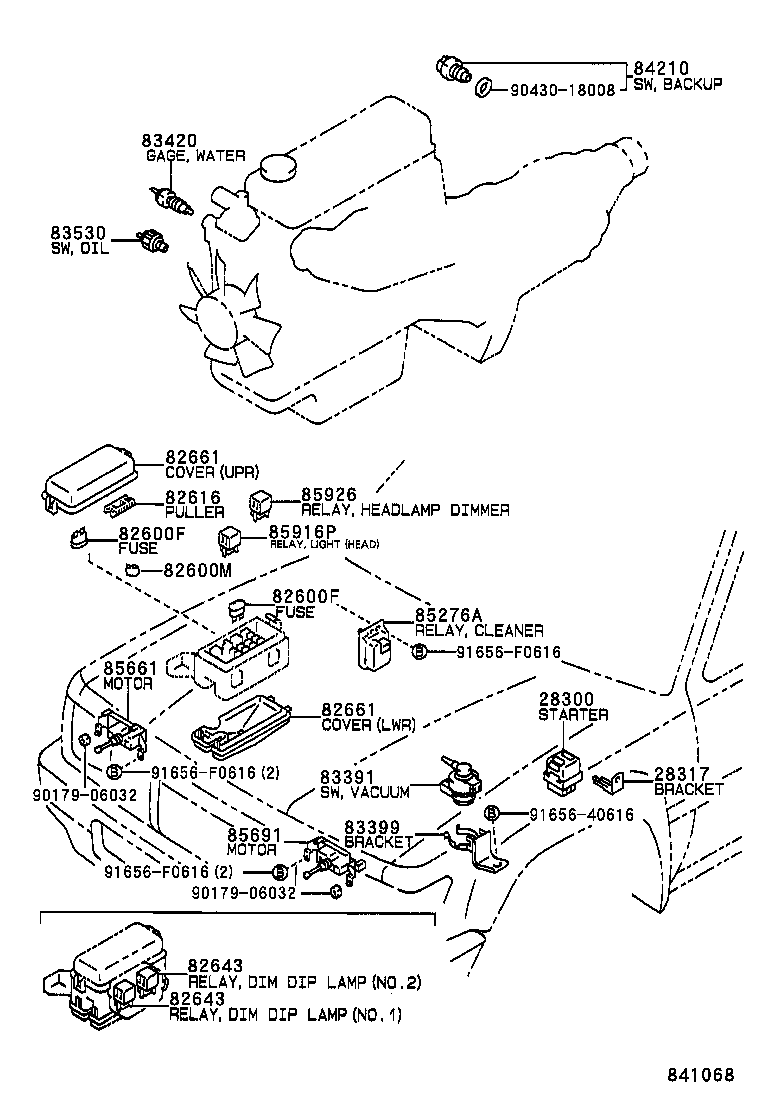

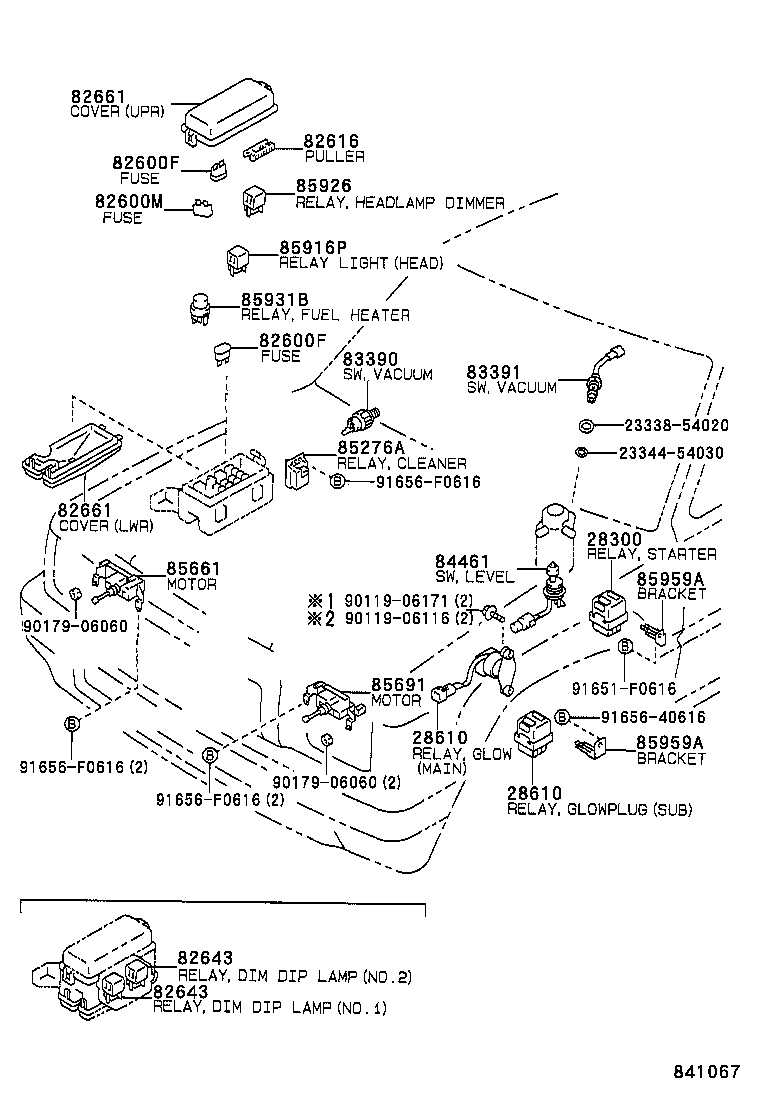

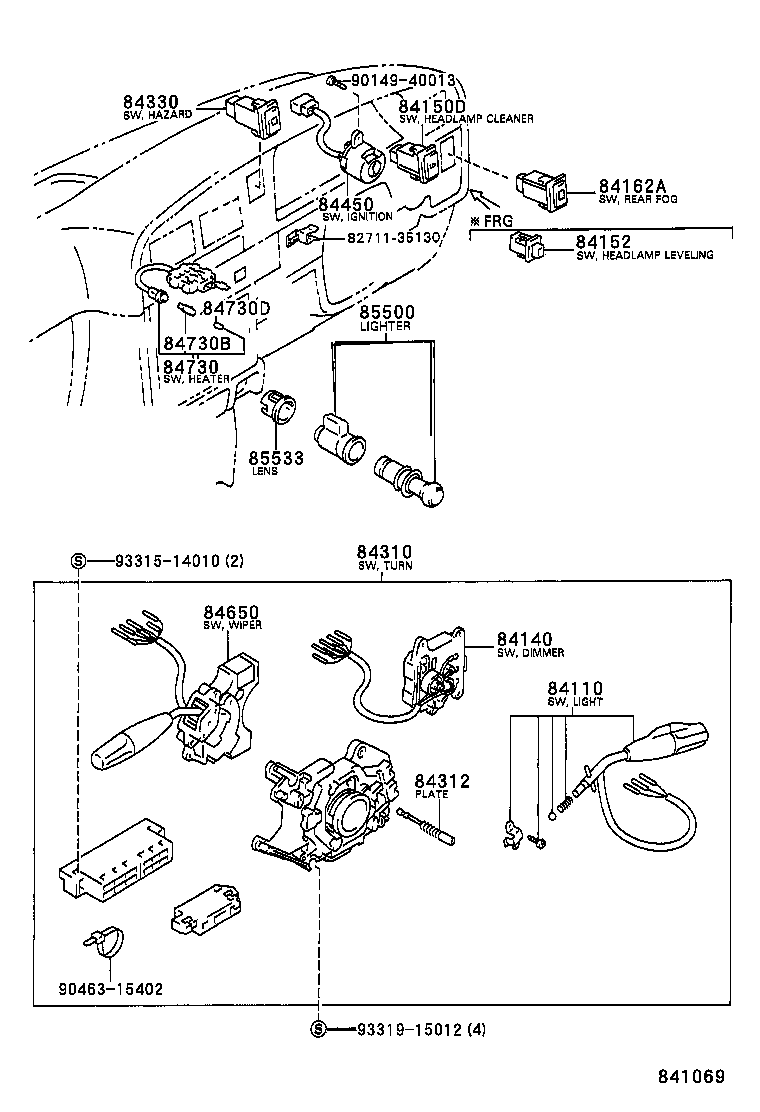

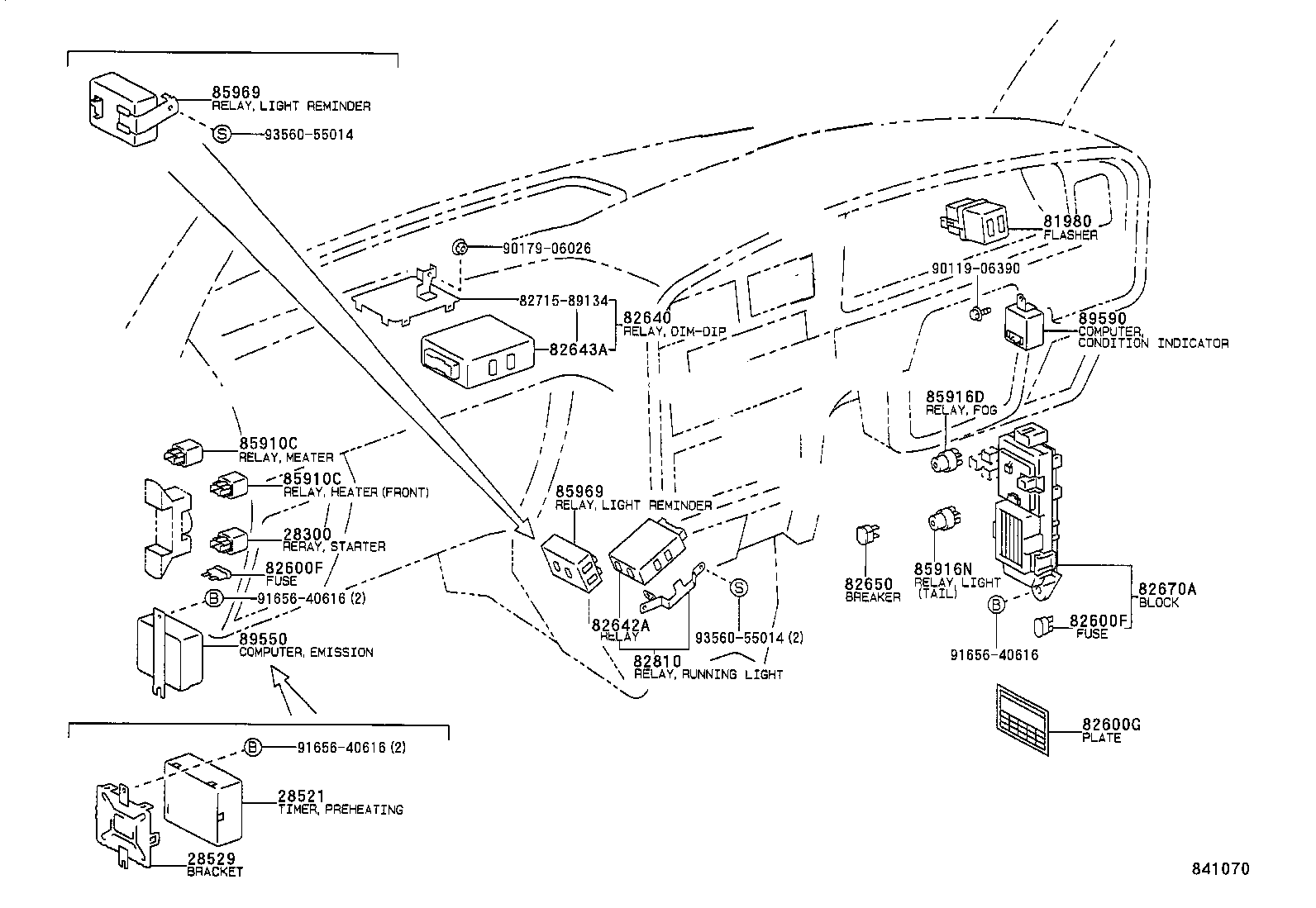

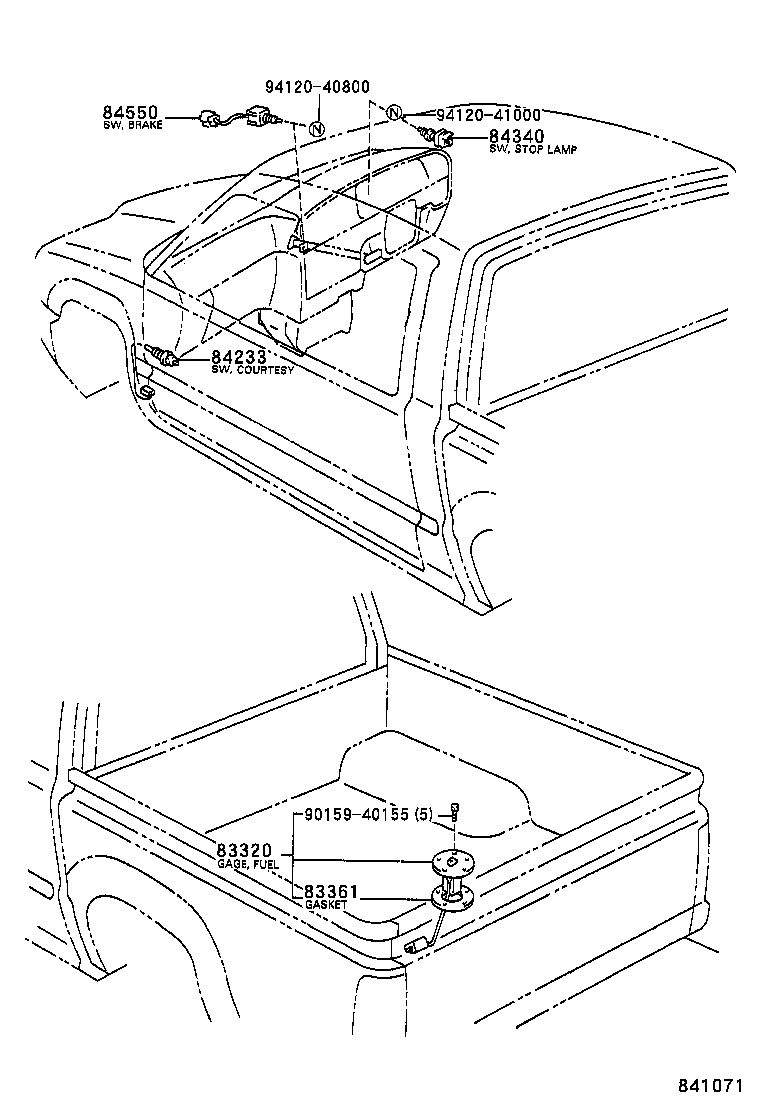

Switch & Relay & Computer
61 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28317 | Bracket, Starter Relay |
| 28521 | Timer, Preheating |
| 28529 | Bracket, Preheating Timer, NO.1 |
| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 28621 | Resistor, Glow Plug |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82600G | Plate, Caution(FOR FUSE) |
| 82600M | Fuse, Medium Current |
| 82616 | Puller, Fuse |
| 82640 | Relay Assy,Dim-dip |
| 82642A | Relay, Running Light |
| 82643 | Relay, Dim-dip Lamp |
| 82643A | Relay, Dim-dip Lamp |
| 82650 | Breaker Assy, Wiring Circuit, NO.1 |
| 82661 | Cover, Relay Block, NO.1 |
| 82670A | Block Assy, Junction, NO.1 |
| 82810 | Relay Assy, Running Light |
| 83320 | Gage Assy, Fuel Sender |
| 83361 | Gasket, Fuel Sender Gage |
| 83390 | Switch Assy, Vacuum Warning |
| 83391 | Switch, Vacuum |
| 83399 | Bracket, Vacuum Switch |
| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84110 | Switch Assy, Light Control, NO.1 |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84150D | Switch Assy, Headlamp Cleaner |
| 84152 | Switch, Headlamp Leveling |
| 84162A | Switch, Rear Fog Lamp |
| 84210 | Switch Assy, Back-up Lamp |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84461 | Switch, Level Warning |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84730 | Switch Assy, Heater Blower |
| 84730B | Bulb, Heater Blower Switch |
| 84730D | Cap, Heater Blower Switch Bulb |
| 85276A | Relay, Cleaner Control |
| 85500 | Lighter Assy, Cigarette |
| 85533 | Lens, Cigarette Lighter Indicator |
| 85661 | Motor, Headlamp Leveling, RH |
| 85691 | Motor, Headlamp Leveling, LH |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85916D | Relay, Fog Lamp |
| 85916N | Relay, Taillamp |
| 85916P | Relay, Headlamp |
| 85926 | Relay, Headlamp Dimmer |
| 85931B | Relay, Fuel Heater |
| 85959A | Holder, Relay |
| 85969 | Relay, Light Reminder |
| 89429 | Sensor, Oil Temperature |
| 89491 | Sensor, Engine Oil Level |
| 89550 | Computer Assy, Emission Control |
| 89590 | Computer Assy, Condition Indicator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
