Toyota Hilux (VWP)

1988-08 → 1997-02 · chassis YN85,LN85 · catalogue 673550 · Europe

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

14 part groups · 3 illustrations

Illustrations

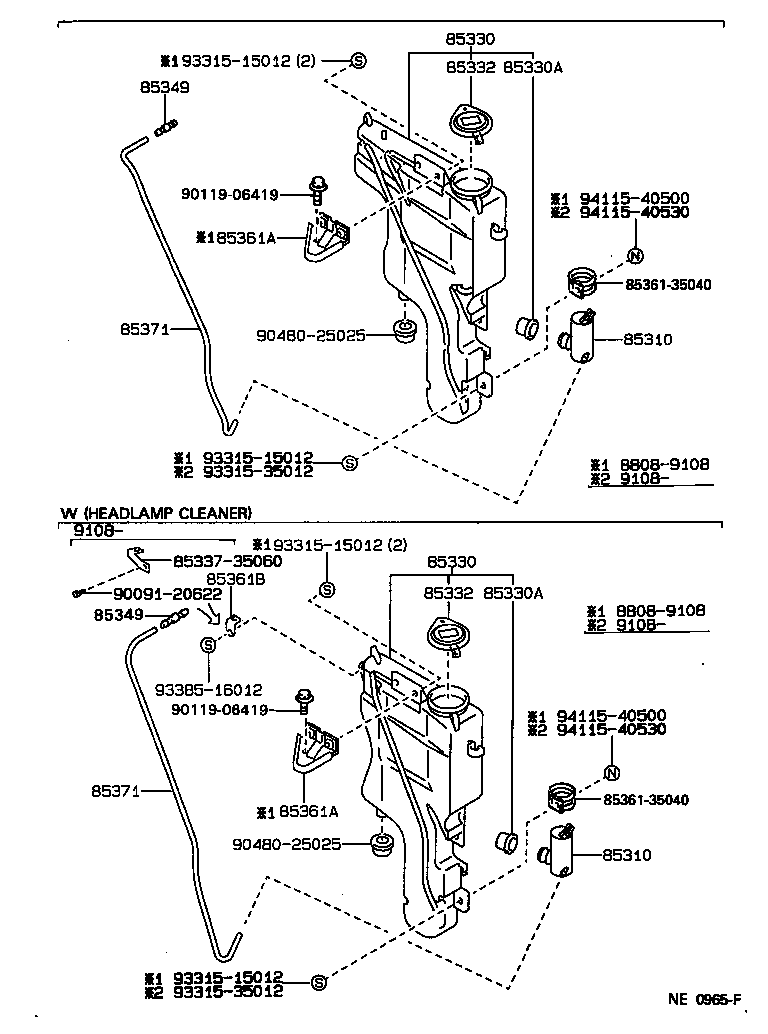

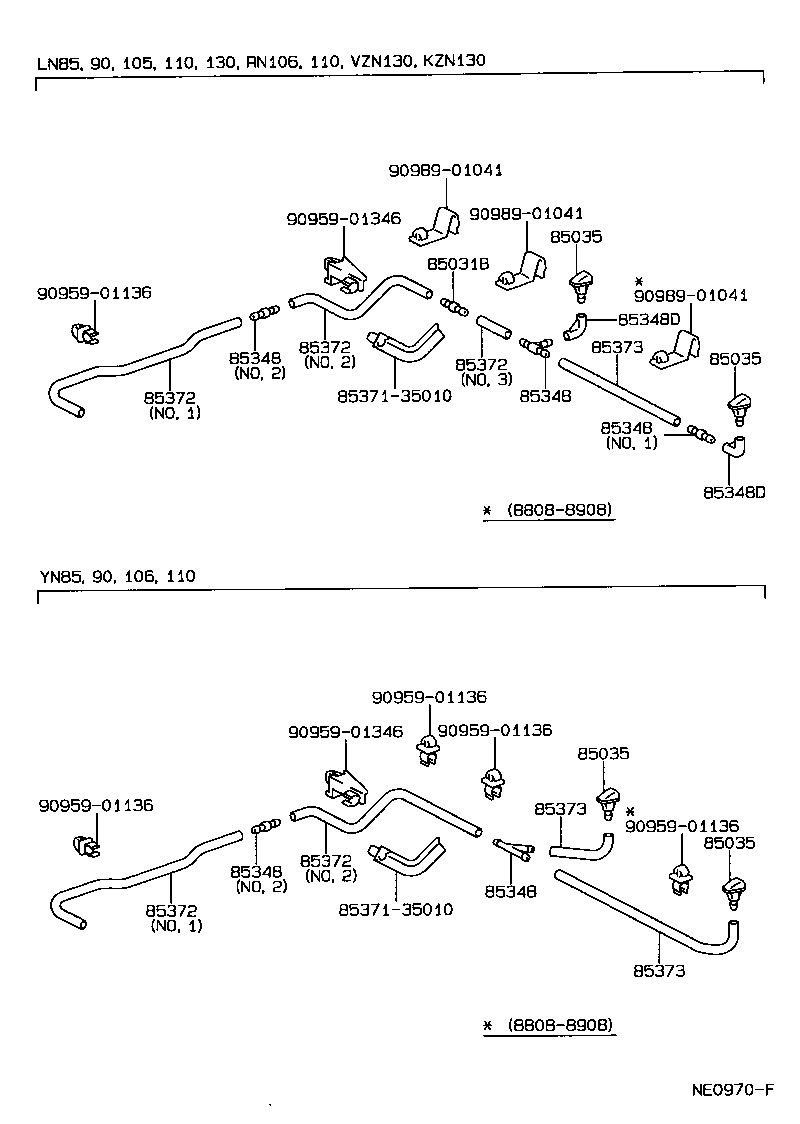

Figure NE0964C NE0964C 1989-07 → — Figure NE0965F NE0965F 1989-01 → — Figure NE0970F NE0970F 1989-01 → —

Part groups

PNCDescription
85031B Valve Sub-assy, Washer
85035 Nozzle Sub-assy, Washer
85310 Motor And Pump Assy, Windshield Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85332 Cap, Windshield Washer Jar
85348 Joint, Windshield Washer Hose, NO.1
85348D Joint, Windshield Washer Elbow, NO.1
85349 Joint, Windshield Washer Hose, NO.1
85361A Bracket, Windshield Washer, NO.1
85361B Bracket, Windshield Washer, NO.2
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
