Toyota Hilux (VWP)

1988-08 → 1997-02 · chassis YN85,LN85 · catalogue 673550 · Europe

Discontinued model Data version 1998-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

12 part groups · 2 illustrations

Illustrations

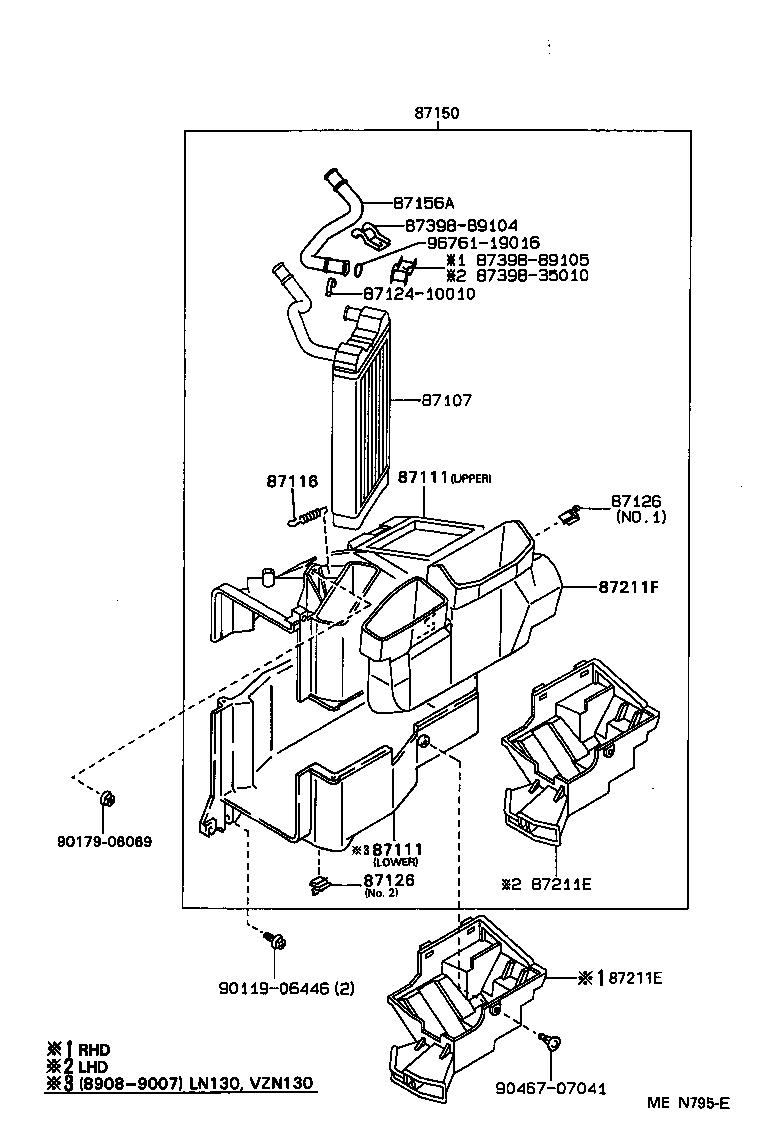

Figure MES630 MES630 1989-01 → — Figure MEN795E MEN795E 1989-01 → —

Part groups

PNCDescription
87103 Motor Sub-assy, Heater Blower, W/Fan
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87111 Case, Heater
87116 Spring, Heater Case Fastening
87126 Clamp, Heater Control
87130 Blower Assy, Heater, Front
87138 Resistor, Heater Blower
87150 Radiator Assy, Heater
87156A Connector, Heater Water Hose
87211E Duct, Air
87211F Duct, Air
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
