Toyota Stout
1979-03 → 2000-02 · chassis RK110,YK110 · catalogue 681220 · Europe
Discontinued model
Data version 2001-01

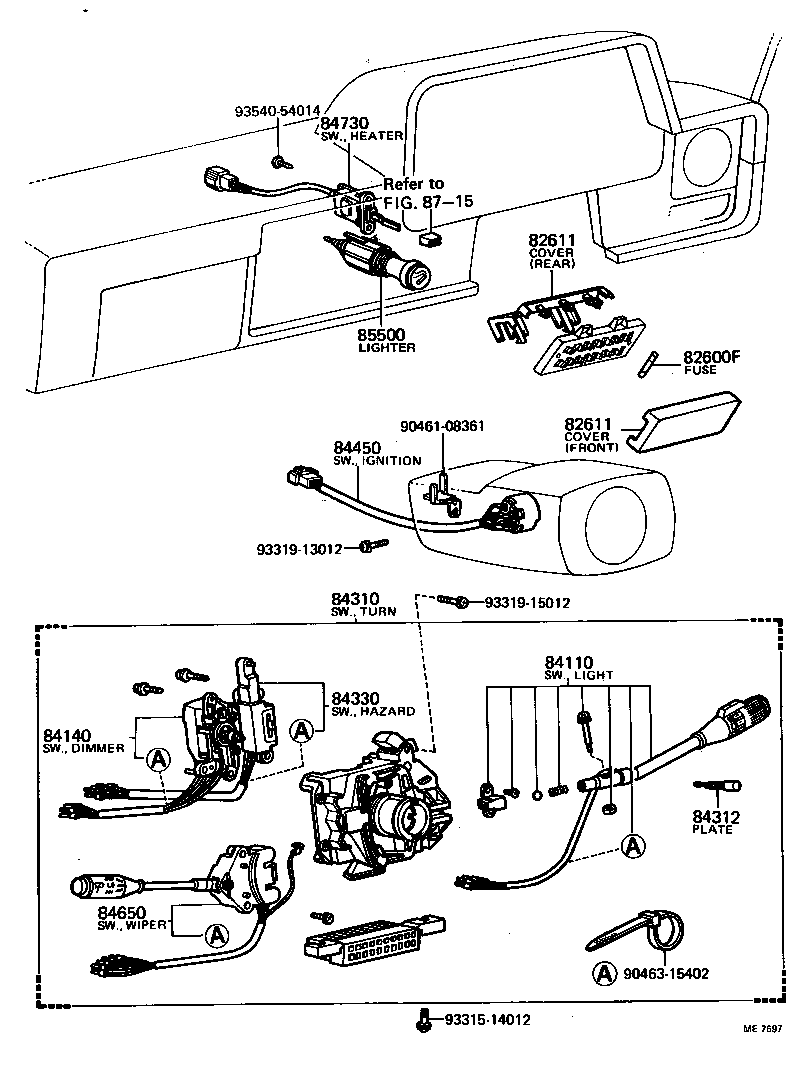

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82600F — Fuse, Fuse Block | ||||
| 90982-09002 note |
Fuse, Fuse Block
1981-08 → 1988-04
ended
|
RK110 | — | |
| 90982-09002 note |
Fuse, Fuse Block
1988-04 → 1993-08
ended
|
YK110 RHD GEN | — | |
| 90982-09002 note |
Fuse, Fuse Block
1988-04 → 1993-08
ended
|
YK110 LHD 4F 175 +1 | — | |
| 90982-09002 note |
Fuse, Fuse Block
1993-08 → 1996-04
ended
|
YK110 | — | |
| 90982-09002 note |
Fuse, Fuse Block
1988-04 → 2000-02
ended
|
YK110 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1981-08 → 1988-04
ended
|
RK110 | — | |
| 90982-09003 note |
Fuse, Fuse Block
1988-04 → 2000-02
ended
|
YK110 | — | |
| 90982-09004 note |
Fuse, Fuse Block
1981-08 → 1988-04
ended
|
RK110 | — | |
| 90982-09004 note |
Fuse, Fuse Block
1988-04 → 2000-02
ended
|
YK110 | — | |
| 90982-09005 note |
Fuse, Fuse Block
1988-04 → 2000-02
ended
|
YK110 | — | |
| 90982-09005 note |
Fuse, Fuse Block
1981-08 → 1988-04
ended
|
RK110 | — | |
| 99118-62005 note |
Fuse, Fuse Block
1979-03 → 1981-08
ended
|
RK110 | — | |
| 99118-62910 note |
Fuse, Fuse Block
1979-03 → 1981-08
ended
|
RK110 | — | |
| 99118-62915 note |
Fuse, Fuse Block
1979-03 → 1981-08
ended
|
RK110 | — | |
| 82611 — Cover, Fuse Block | ||||
| 82611-89105 note |
Cover, Fuse Block
1979-03 → 1981-08
ended
|
RK110 | — | |
| 82611-89106 note |
Cover, Fuse Block
1979-03 → 1981-08
ended
|
RK110 | — | |
| 82611-89108 note |
Cover, Fuse Block
1981-08 → 1986-09
ended
|
RK110 | — | |
| 82611-89109 note |
Cover, Fuse Block
1981-08 → 1988-04
ended
|
RK110 | — | |
| 82611-89109 note |
Cover, Fuse Block
1988-04 → 2000-02
ended
|
YK110 | — | |
| 82611-92300 note |
Cover, Fuse Block
1988-04 → 2000-02
ended
|
YK110 | — | |
| 84110 — Switch Assy, Light Control, NO.1 | ||||
| 84112-19075 |
Switch Assy, Light Control, NO.1
1979-03 → 1980-08
ended
|
RK110 RHD | — | |
| 84112-19076 |
Switch Assy, Light Control, NO.1
1980-08 → 1981-08
ended
|
RK110 RHD | — | |
| 84112-19085 |
Switch Assy, Light Control, NO.1
1979-03 → 1980-08
ended
|
RK110 LHD | — | |
| 84112-19086 |
Switch Assy, Light Control, NO.1
1980-08 → 1981-08
ended
|
RK110 LHD | — | |
| 84112-39135 |
Switch Assy, Light Control, NO.1
1981-08 → 1988-04
ended
|
RK110 RHD | — | |
| 84112-39135 |
Switch Assy, Light Control, NO.1
1988-04 → 1993-08
ended
|
YK110 RHD | — | |
| 84112-39145 |
Switch Assy, Light Control, NO.1
1981-08 → 1988-04
ended
|
RK110 LHD | — | |
| 84112-39145 |
Switch Assy, Light Control, NO.1
1988-04 → 2000-02
ended
|
YK110 LHD | — | |
| 84140 — Switch Assy, Headlamp Dimmer | ||||
| 84140-19015 |
Switch Assy, Headlamp Dimmer
1979-03 → 1981-08
ended
|
RK110 RHD | — | |
| 84140-19025 |
Switch Assy, Headlamp Dimmer
1979-03 → 1981-08
ended
|
RK110 LHD | — | |
| 84140-39055 |
Switch Assy, Headlamp Dimmer
1981-08 → 1988-04
ended
|
RK110 RHD | — | |
| 84140-39055 |
Switch Assy, Headlamp Dimmer
1988-04 → 1993-08
ended
|
YK110 RHD | — | |
| 84140-39065 |
Switch Assy, Headlamp Dimmer
1981-08 → 1988-04
ended
|
RK110 LHD | — | |
| 84140-39065 |
Switch Assy, Headlamp Dimmer
1988-04 → 2000-02
ended
|
YK110 LHD | — | |
| 84310 — Switch Assy, Turn Signal | ||||
| 84310-10210 |
Switch Assy, Turn Signal
1979-03 → 1980-08
ended
|
RK110 RHD | — | |
| 84310-10211 |
Switch Assy, Turn Signal
1980-08 → 1981-08
ended
|
RK110 RHD | — | |
| 84310-10230 |
Switch Assy, Turn Signal
1979-03 → 1980-08
ended
|
RK110 LHD | — | |
| 84310-10231 |
Switch Assy, Turn Signal
1980-08 → 1981-08
ended
|
RK110 LHD | — | |
| 84310-35120 |
Switch Assy, Turn Signal
1981-08 → 1988-04
ended
|
RK110 RHD | — | |
| 84310-35120 |
Switch Assy, Turn Signal
1988-04 → 1993-08
ended
|
YK110 RHD | — | |
| 84310-35150 |
Switch Assy, Turn Signal
1981-08 → 1988-04
ended
|
RK110 LHD | — | |
| 84310-35150 |
Switch Assy, Turn Signal
1988-04 → 2000-02
ended
|
YK110 LHD | — | |
| 84312 — Plate, Horn Contact | ||||
| 84312-20011 |
Plate, Horn Contact
1979-03 → 1988-04
ended
|
RK110 | — | |
| 84312-20011 |
Plate, Horn Contact
1988-04 → 2000-02
ended
|
YK110 | — | |
| 84330 — Switch Assy, Hazard Warning Signal | ||||
| 84332-19015 |
Switch Assy, Hazard Warning Signal
1979-03 → 1981-08
ended
|
RK110 RHD | — | |
| 84332-19025 |
Switch Assy, Hazard Warning Signal
1979-03 → 1981-08
ended
|
RK110 LHD | — | |
| 84332-39115 |
Switch Assy, Hazard Warning Signal
1981-08 → 1988-04
ended
|
RK110 RHD | — | |
| 84332-39115 |
Switch Assy, Hazard Warning Signal
1988-04 → 1993-08
ended
|
YK110 RHD | — | |
| 84332-39125 |
Switch Assy, Hazard Warning Signal
1981-08 → 1988-04
ended
|
RK110 LHD | — | |
| 84332-39125 |
Switch Assy, Hazard Warning Signal
1988-04 → 2000-02
ended
|
YK110 LHD | — | |
| 84450 — Switch Assy, Ignition OR Starter | ||||
| 84450-14021 |
Switch Assy, Ignition OR Starter
1979-03 → 1988-04
ended
|
RK110 | — | |
| 84450-14021 |
Switch Assy, Ignition OR Starter
1988-04 → 2000-02
ended
|
YK110 | — | |
| 84650 — Switch Assy, Windshield Wiper | ||||
| 84652-19135 |
Switch Assy, Windshield Wiper
1979-03 → 1980-08
ended
|
RK110 RHD | — | |
| 84652-19136 |
Switch Assy, Windshield Wiper
1980-08 → 1981-08
ended
|
RK110 RHD | — | |
| 84652-19155 |
Switch Assy, Windshield Wiper
1979-03 → 1980-08
ended
|
RK110 LHD | — | |
| 84652-19156 |
Switch Assy, Windshield Wiper
1980-08 → 1981-08
ended
|
RK110 LHD | — | |
| 84652-39165 |
Switch Assy, Windshield Wiper
1981-08 → 1988-04
ended
|
RK110 RHD | — | |
| 84652-39165 |
Switch Assy, Windshield Wiper
1988-04 → 1993-08
ended
|
YK110 RHD | — | |
| 84652-39175 |
Switch Assy, Windshield Wiper
1981-08 → 1988-04
ended
|
RK110 LHD | — | |
| 84652-39175 |
Switch Assy, Windshield Wiper
1988-04 → 2000-02
ended
|
YK110 LHD | — | |
| 84730 — Switch Assy, Heater Blower | ||||
| 84732-89104 |
Switch Assy, Heater Blower
1979-03 → 1981-08
ended
|
RK110 RHD | — | |
| 84732-89105 |
Switch Assy, Heater Blower
1979-03 → 1981-08
ended
|
RK110 LHD | — | |
| 84732-89106 |
Switch Assy, Heater Blower
1981-08 → 1988-04
ended
|
RK110 | — | |
| 84732-89106 |
Switch Assy, Heater Blower
1988-04 → 1993-08
ended
|
YK110 RHD GEN | — | |
| 84732-89106 |
Switch Assy, Heater Blower
1988-04 → 1993-08
ended
|
YK110 SA;YK110 LHD | — | |
| 84732-89106 |
Switch Assy, Heater Blower
1996-04 → 2000-02
ended
|
YK110 | — | |
| 84732-89106 |
Switch Assy, Heater Blower
1993-08 → 1996-04
ended
|
YK110 | — | |
| 84732-89107 note |
Switch Assy, Heater Blower
1981-08 → 1988-04
ended
|
RK110 GEN | — | |
| 84732-89107 note |
Switch Assy, Heater Blower
1993-08 → 1996-04
ended
|
YK110 | — | |
| 84732-89107 note |
Switch Assy, Heater Blower
1988-04 → 1993-08
ended
|
YK110 RHD GEN | — | |
| 85500 — Lighter Assy, Cigarette | ||||
| 85500-20042 |
Lighter Assy, Cigarette
1979-03 → 1980-08
ended
|
RK110 | — | |
| 85500-30340 |
Lighter Assy, Cigarette
1980-08 → 1988-04
ended
|
RK110 | — | |
| 85500-30340 |
Lighter Assy, Cigarette
1988-04 → 2000-02
ended
|
YK110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
