Timing Gear Cover & Rear End Plate

17 part groups · 2 illustrations

Illustrations

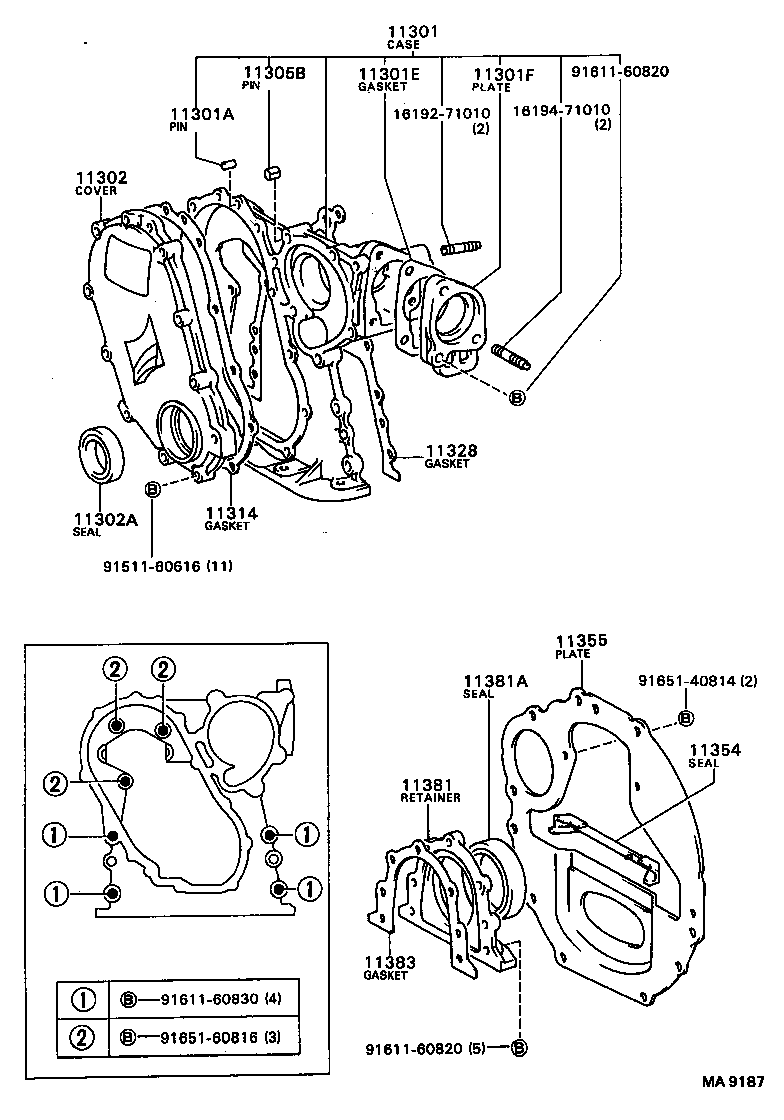

Figure MA3709A MA3709A 1979-03 → 1986-09 Figure MA9187 MA9187 1986-09 → —

Part groups

PNCDescription
11301 Case Sub-assy, Timing Gear
11301A Pin, Straight(FOR TIMING GEAR CASE)
11301E Gasket, Thermostat Guide
11301F Plate, Water Pump Thermostat Guide
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11305B Pin, Ring(FOR OIL SEAL RETAINER, NO.2)
11311 Plate, Front End
11312 Gasket, Front End Plate
11314 Gasket, Timing Chain NO.2 Cover
11328 Gasket, Timing Gear OR Chain Cover
11354 Seal, Flywheel Housing Dust
11355 Plate, Rear End
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11383 Gasket, Engine Rear Oil Seal Retainer
11391 Pointer, Timing
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
