Toyota Stout

1979-03 → 2000-02 · chassis RK110,YK110 · catalogue 681220 · Europe

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

9 part groups · 2 illustrations

Illustrations

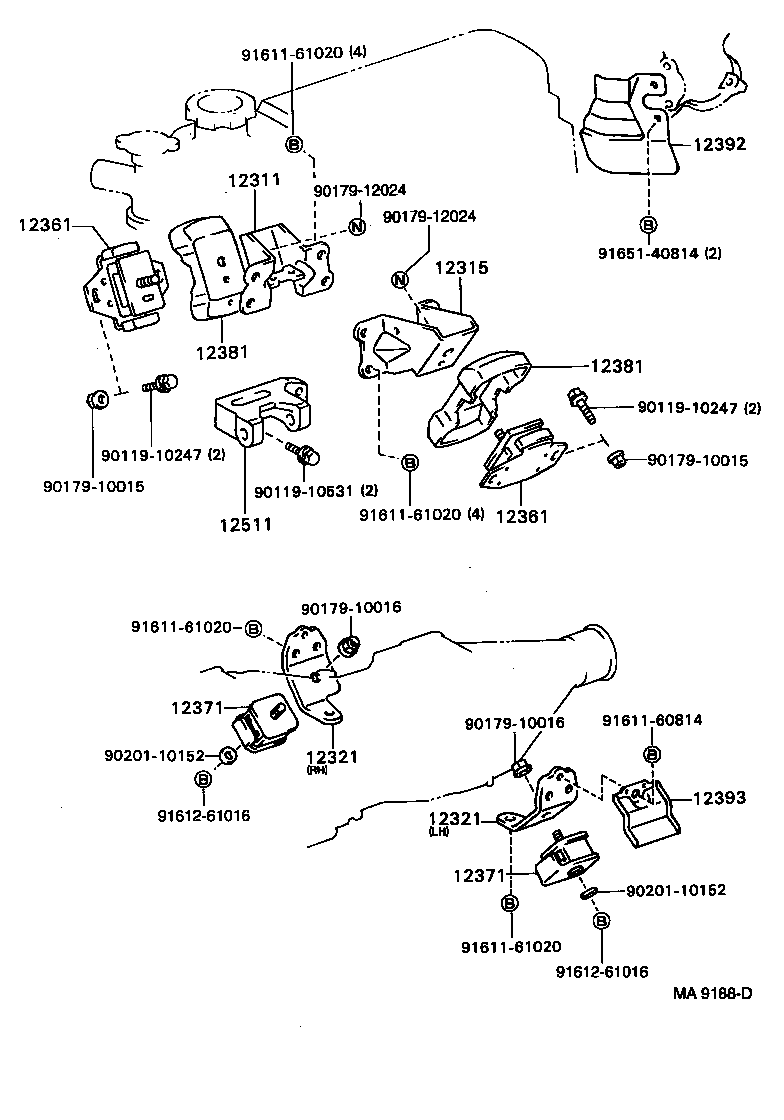

Figure MA5234A MA5234A 1979-03 → 1986-09 Figure MA9188D MA9188D 1986-09 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12392 Insulator, Engine Mounting Heat, Front LH
12393 Insulator, Engine Mounting Heat, Front
12511 Bracket, Alternator, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
