Toyota Stout

1979-03 → 2000-02 · chassis RK110,YK110 · catalogue 681220 · Europe

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

7 part groups · 5 illustrations

Illustrations

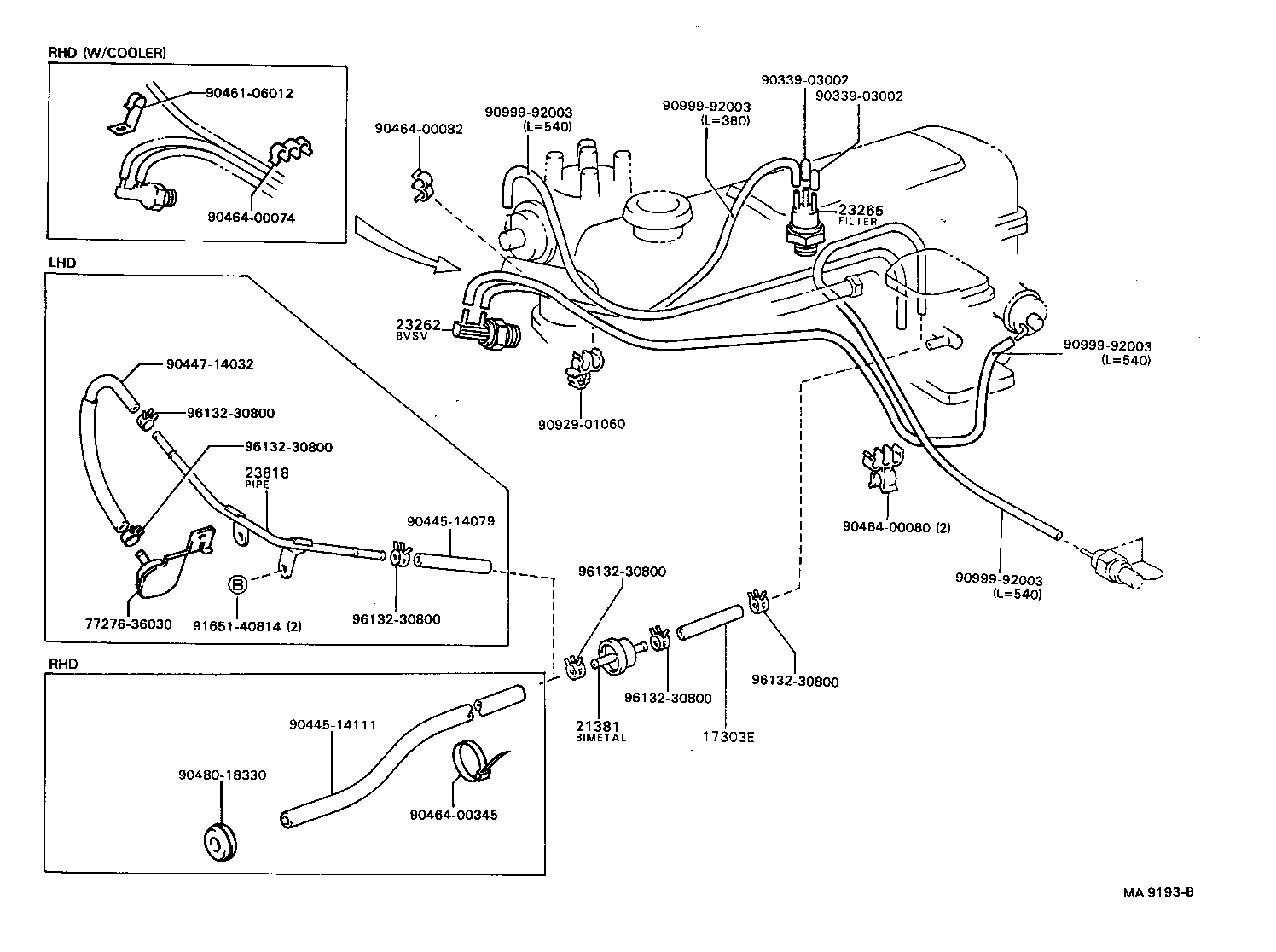

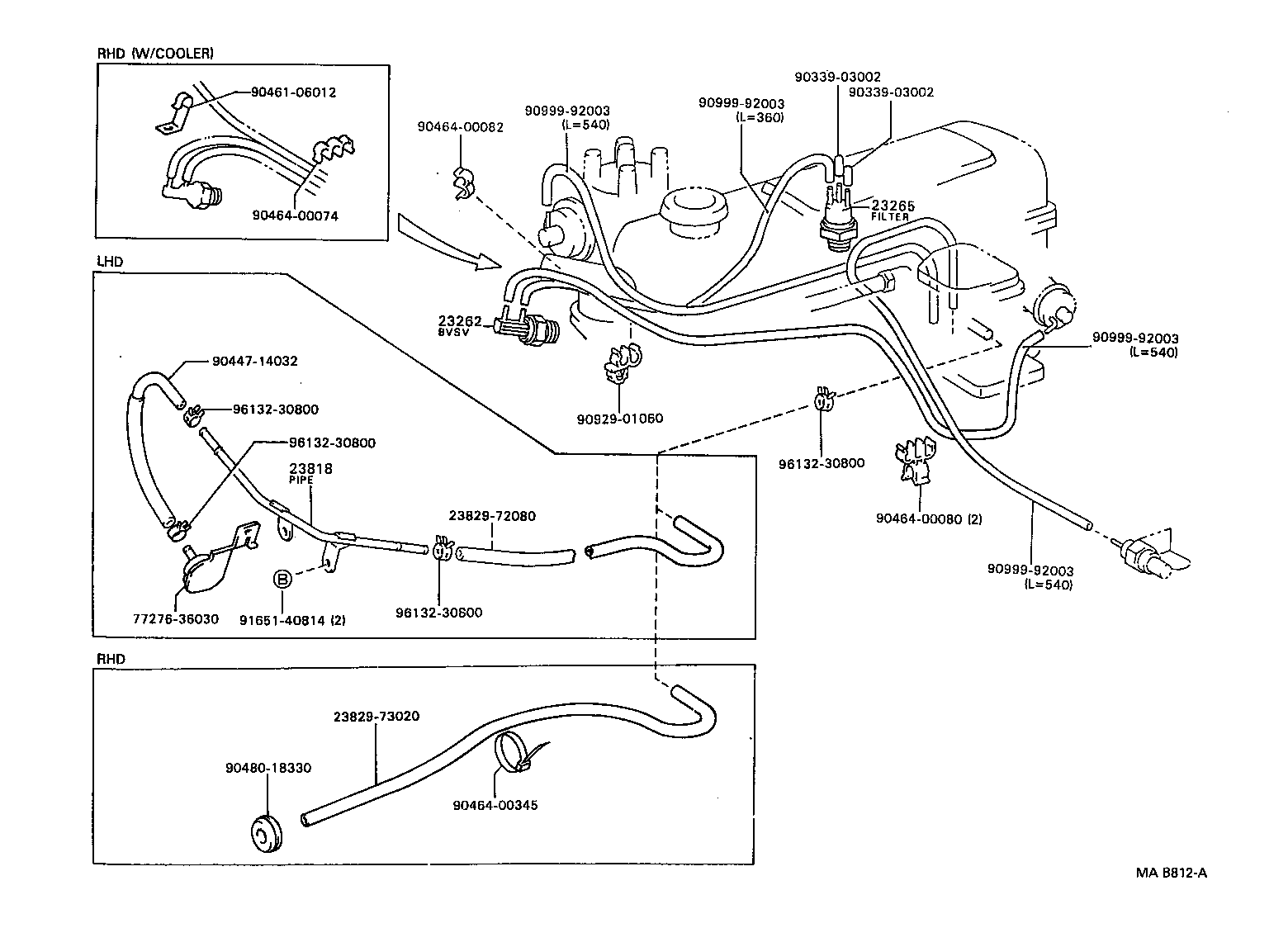

Figure MA9504B MA9504B 1979-03 → — Figure MA3725E MA3725E 1979-03 → 1986-09 Figure MA9504B MA9504B 1979-03 → — Figure MA9193B MA9193B 1986-09 → 1988-08 Figure MAB812A MAB812A 1988-08 → —

Part groups

PNCDescription
17303E Hose, NO.1(FOR AIR PIPE)
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
21381 Bimetal, Thermostatic
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23818 Pipe, Fuel Vapor Feed
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
