Toyota Stout

1979-03 → 2000-02 · chassis RK110,YK110 · catalogue 681220 · Europe

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Carburetor Assembly

7 part groups · 2 illustrations

Illustrations

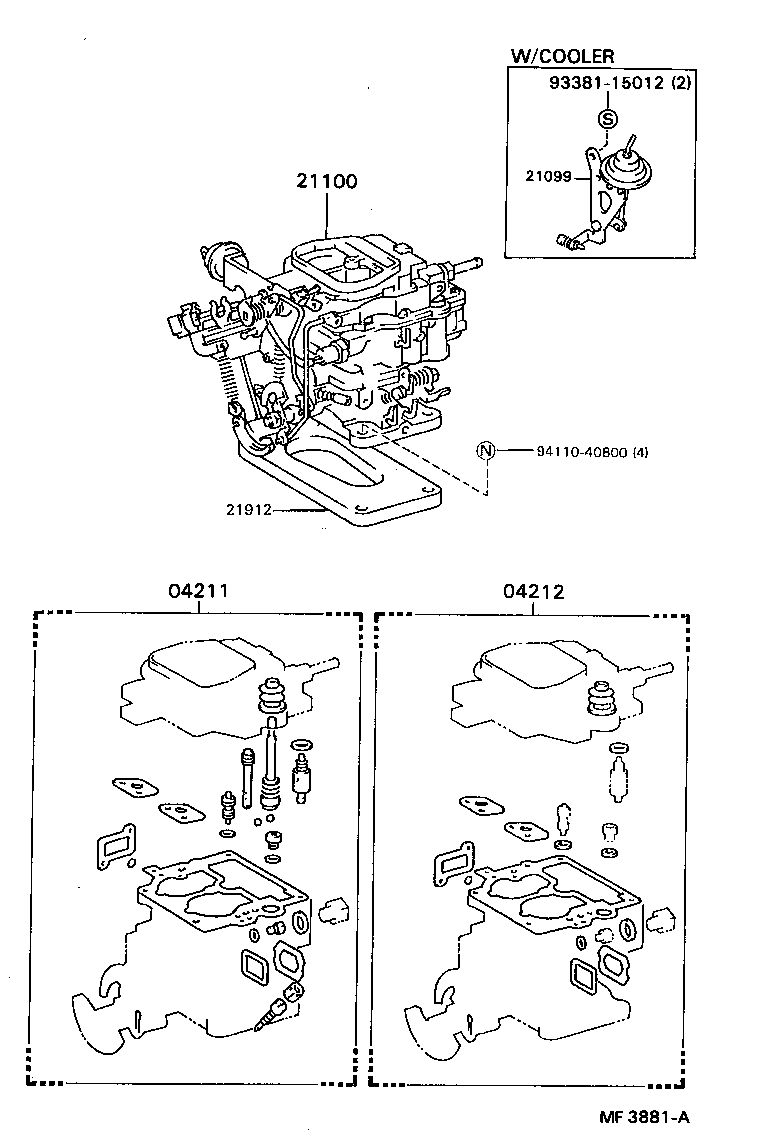

Figure MF2156E MF2156E 1979-03 → 1986-09 Figure MF3881A MF3881A 1986-09 → —

Part groups

PNCDescription
04211 Carburetor Kit
04212 Gasket Kit, Carburetor
21099 Diaphragm Sub-assy, Throttle Opener
21100 Carburetor Assy
21673 Cap, Idle Limit
21912 Insulator, Carburetor Heat
21948 Bracket, Throttle Opener
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
