Toyota Stout

1979-03 → 2000-02 · chassis RK110,YK110 · catalogue 681220 · Europe

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Pump & Pipe

19 part groups · 2 illustrations

Illustrations

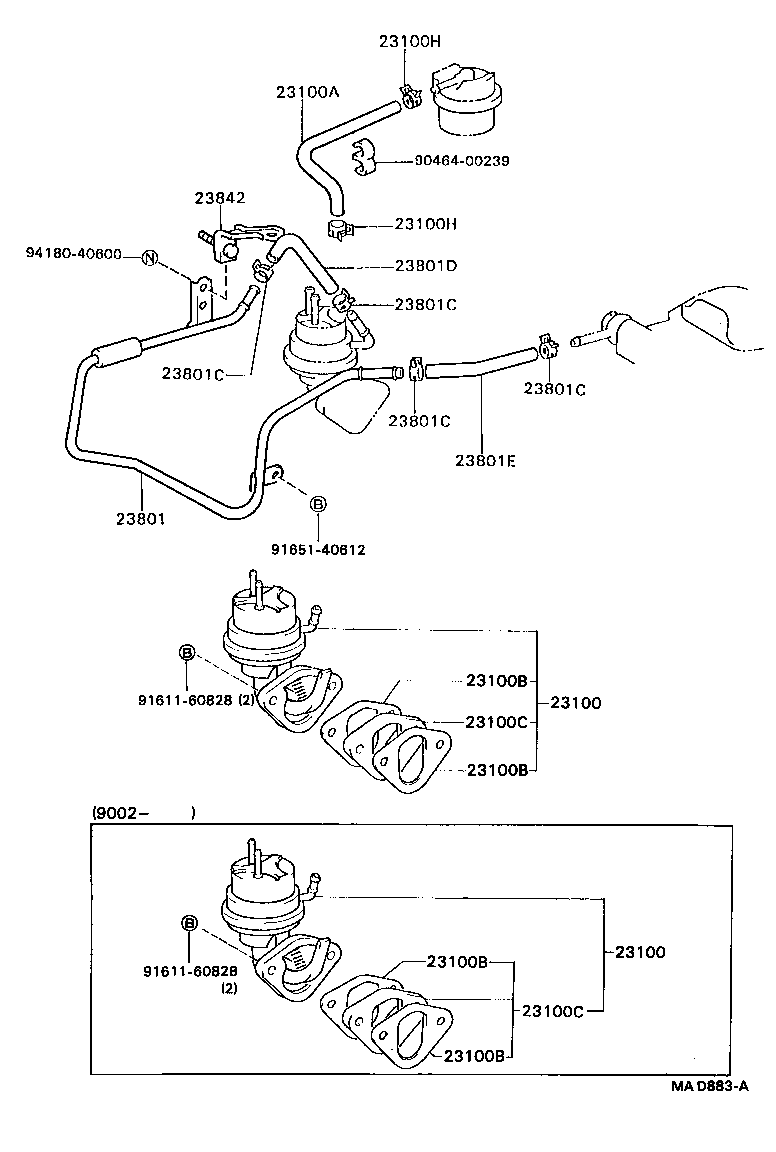

Figure MF2148F MF2148F 1979-03 → 1986-09 Figure MAD883A MAD883A 1986-09 → —

Part groups

PNCDescription
19907 Hose, Vacuum, NO.1
23100 Pump Assy, Fuel
23100A Hose, Fuel
23100B Gasket, Fuel Pump
23100C Insulator, Fuel Pump
23100D Union, Nipple(FOR FUEL OUTLET)
23100E Union, Nipple(FOR FUEL INLET)
23100H Clip(FOR FUEL HOSE)
23115 Stopper, Union Nipple
23123 Screw, Cover Set, NO.1
23801 Pipe OR Hose Sub-assy, Carburetor Fuel, NO.1
23801A Olive(FOR FUEL PIPE)
23801B Nut, Union(FOR FUEL PIPE)
23801C Clip(FOR CARBURETOR FUEL HOSE)
23801D Hose, Fuel Pipe, NO.1
23801E Hose, Fuel Pipe, NO.2
23841 Clamp, Fuel Pipe(HOSE), NO.1
23842 Clamp, Fuel Pipe(HOSE), NO.2
23845 Insulator, Fuel Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
