Toyota Stout
1979-03 → 2000-02 · chassis RK110,YK110 · catalogue 681220 · Europe
Discontinued model
Data version 2001-01

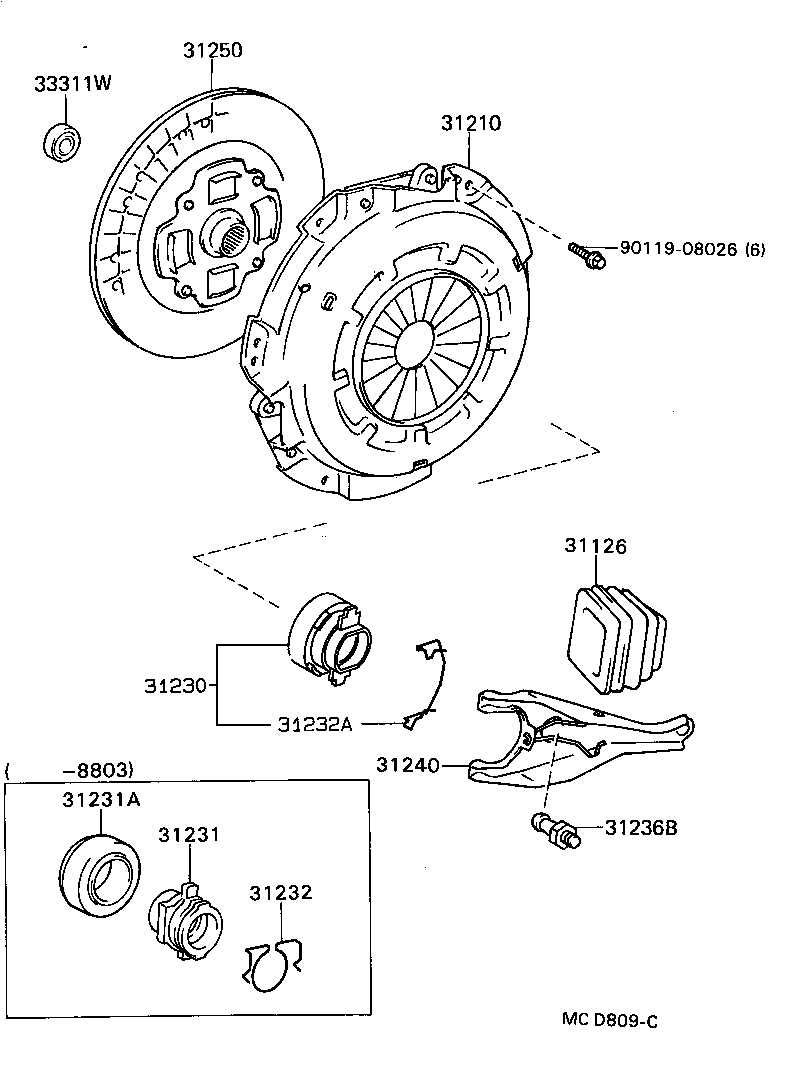

Clutch & Release Fork
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 31126 | Boot, Clutch Release Fork |
| 31201 | Cover Sub-assy, Clutch |
| 31210 | Cover Assy, Clutch |
| 31216 | Spring, Clutch Retracting |
| 31221 | Plate, Clutch Pressure |
| 31230 | Bearing Assy, Clutch Release |
| 31231 | Hub, Clutch Release Bearing |
| 31231A | Bearing, Ball(FOR CLUTCH RELEASE HUB) |
| 31232 | Clip OR Spring, Release Bearing Hub |
| 31232A | Clip, Release Bearing Hub |
| 31236B | Support, Release Fork |
| 31240 | Fork Assy, Clutch Release |
| 31240A | Spring, Tension(FOR CLUTCH RELEASE FORK RETURN) |
| 31250 | Disc Assy, Clutch |
| 33311W | Bearing (FOR INPUT SHAFT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
