Toyota Stout

1979-03 → 2000-02 · chassis RK110,YK110 · catalogue 681220 · Europe

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

23 part groups · 2 illustrations

Illustrations

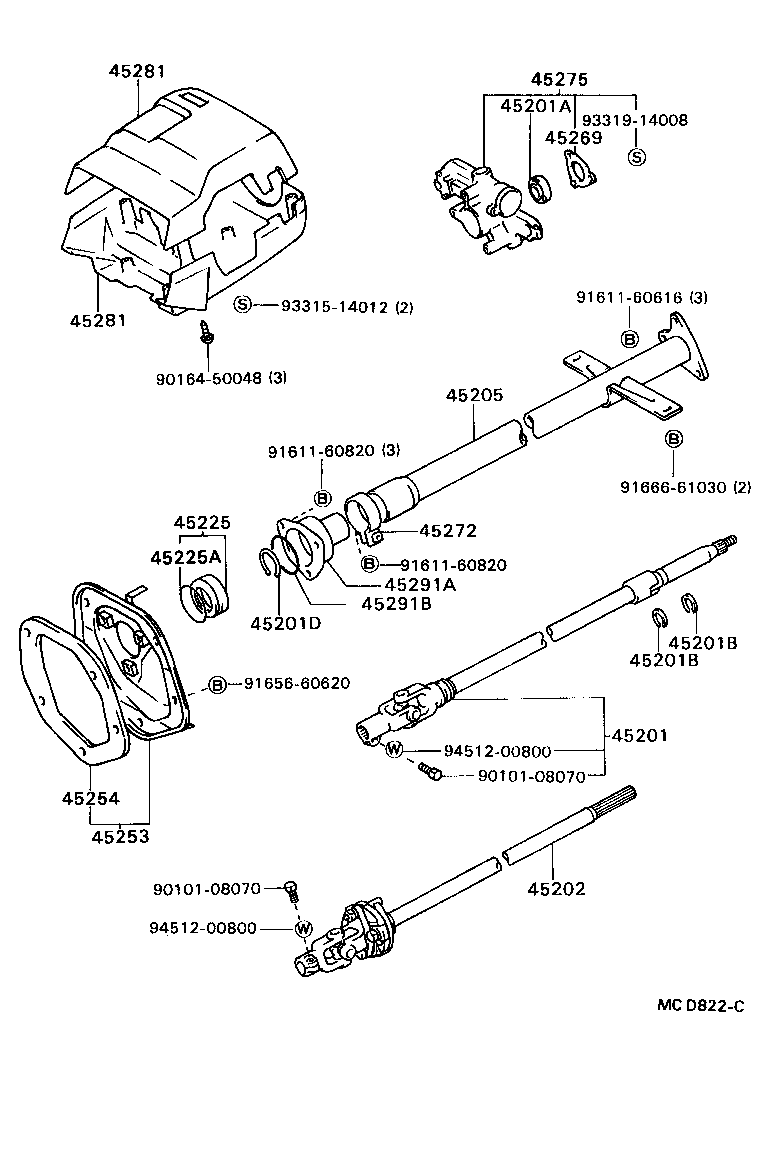

Figure MCD823A MCD823A 1979-03 → 1986-09 Figure MCD822C MCD822C 1986-09 → —

Part groups

PNCDescription
04371F Spider Kit, Universal Joint(FOR STEERING MAIN SHAFT)
45201 Shaft Sub-assy, Steering Main
45201A Bearing(FOR STEERING MAIN SHAFT)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45201D Ring(FOR STEERING MAIN SHAFT)
45202 Shaft Sub-assy, Steering Intermediate
45205 Tube Sub-assy, Steering Column
45219 Yoke, Steering Sliding
45225 Block, Bearing
45225A Ring, O(FOR BEARING BLOCK)
45230 Coupling Assy, Flexible
45231C Bearing, Universal Joint Spider(FOR STEERING MAIN SHAFT)
45231D Ring, Hole Snap(FOR STEERING MAIN SHAFT)
45244 Yoke, Steering Worm
45253 Cover, Steering Column Hole
45254 Shield, Steering Column Hole
45269 Retainer, Main Shaft Bearing
45272 Clamp, Steering Column, Lower
45275 Bracket, Steering Column, Upper
45281 Housing, Steering Column
45291A Support, Steering Column Tube
45291B Ring, O(FOR STEERING COLUMN TUBE SUPPORT)
45292 Seal, Main Shaft Lower Dust
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
