Toyota Stout
1979-03 → 2000-02 · chassis RK110,YK110 · catalogue 681220 · Europe
Discontinued model
Data version 2001-01

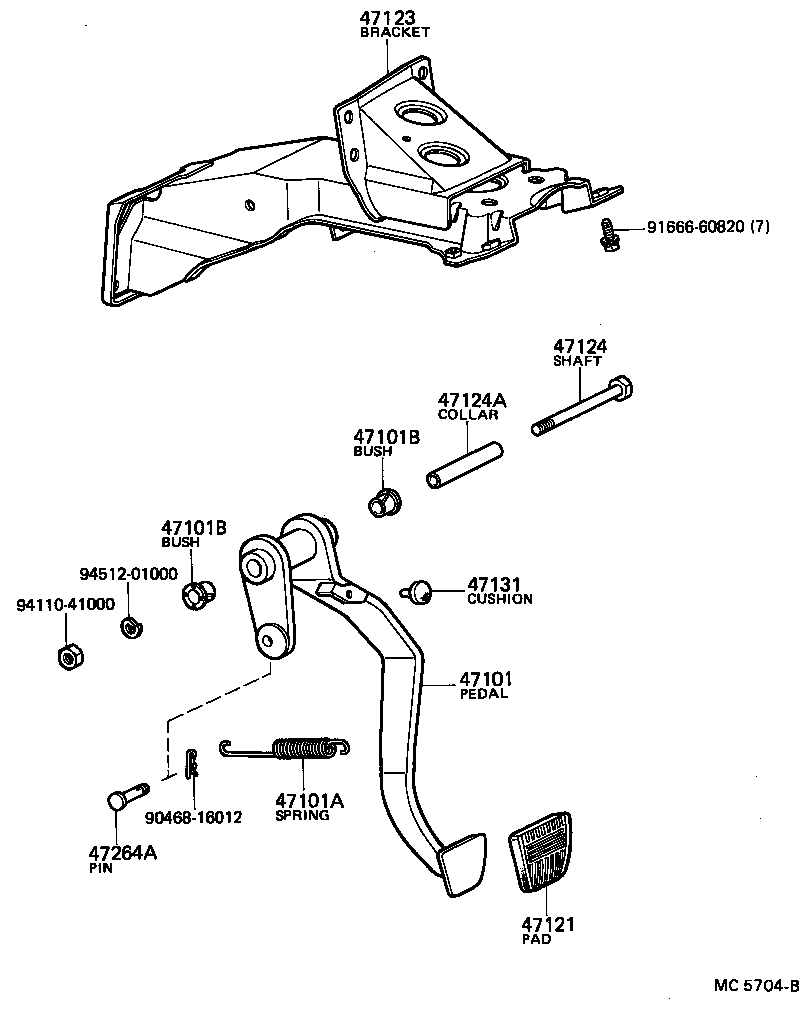

Brake Pedal & Bracket
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 47101 | Pedal Sub-assy, Brake |
| 47101A | Spring(FOR BRAKE PEDAL RETURN) |
| 47101B | Bush(FOR BRAKE PEDAL) |
| 47121 | Pad, Brake Pedal |
| 47123 | Bracket, Brake Pedal |
| 47124 | Shaft, Brake Pedal |
| 47124A | Collar(FOR BRAKE PEDAL SHAFT) |
| 47131 | Cushion(FOR STOP LAMP SWITCH) |
| 47264A | Pin(FOR PUSH ROD) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
