Toyota Stout

1979-03 → 2000-02 · chassis RK110,YK110 · catalogue 681220 · Europe

Discontinued model Data version 2001-01

Front Spring & Shock Absorber

38 part groups · 4 illustrations

PNC	Description

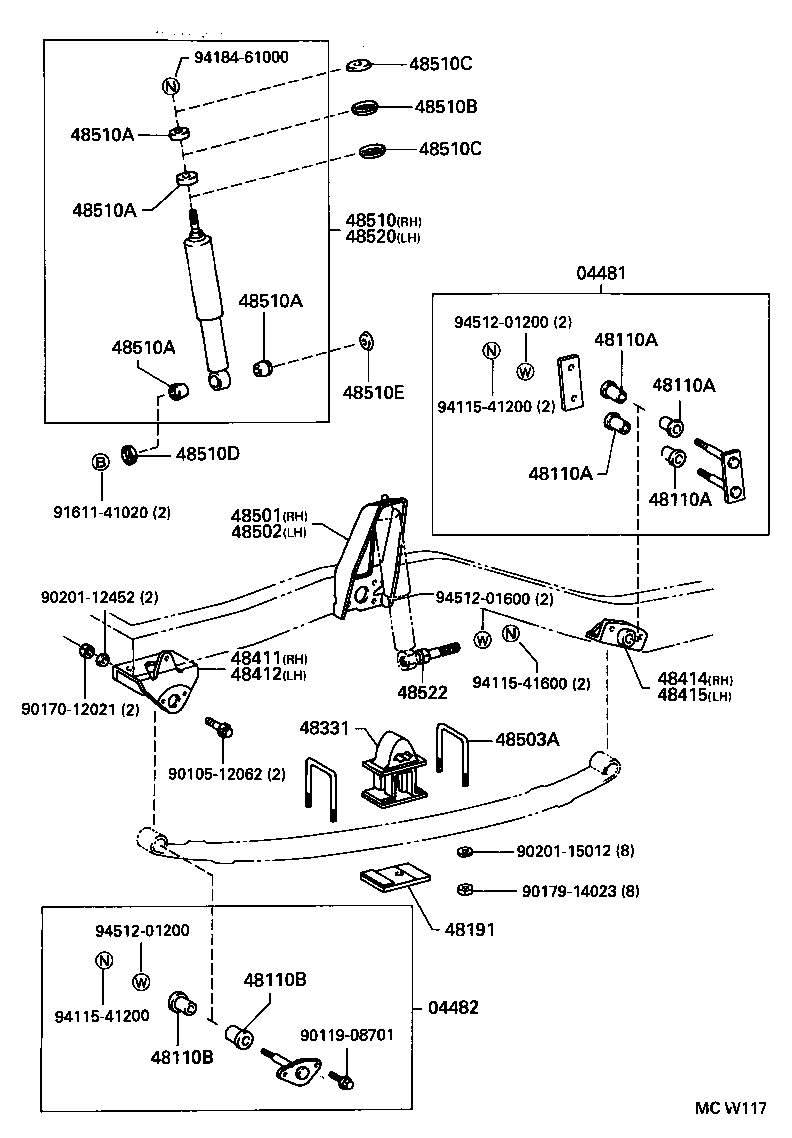

04481	Shackle Kit, Front Spring
04482	Pin Kit, Front Spring
48110	Spring Assy, Front, RH
48110A	Bush(FOR FRONT SPRING SHACKLE)
48110B	Bush(FOR FRONT SPRING PIN)
48111	Leaf, Front Spring, NO.1
48112	Leaf, Front Spring, NO.2
48113	Leaf, Front Spring, NO.3
48114	Leaf, Front Spring, NO.4
48120	Spring Assy, Front, LH
48141	Clip, Front Spring, NO.1
48147	Bolt, Front Spring, Center
48191	Wedge, Caster(FOR FRONT LEAF SPRING)
48331	Bumper, Front Spring, NO.1
48411	Bracket, Front Spring(FOR FRONT RH)
48412	Bracket, Front Spring(FOR FRONT LH)
48414	Bracket, Front Spring(FOR REAR RH)
48415	Bracket, Front Spring(FOR REAR LH)
48501	Bracket Sub-assy, Front Shock Absorber, Upper RH
48502	Bracket Sub-assy, Front Shock Absorber, Upper LH
48503A	Bolt, U(FOR FRONT SHOCK ABSORBER BRACKET)
48510	Absorber Assy, Shock, Front RH
48510A	Cushion, Front Shock Absorber
48510B	Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER)
48510C	Retainer, Cushion, NO.2(FOR FRONT SHOCK ABSORBER)
48510D	Washer, Front Shock Absorber Cushion, NO.1
48510E	Washer, Front Shock Absorber Cushion, NO.2
48520	Absorber Assy, Shock, Front LH
48522	Pin, Front Shock Absorber Lower Pivot

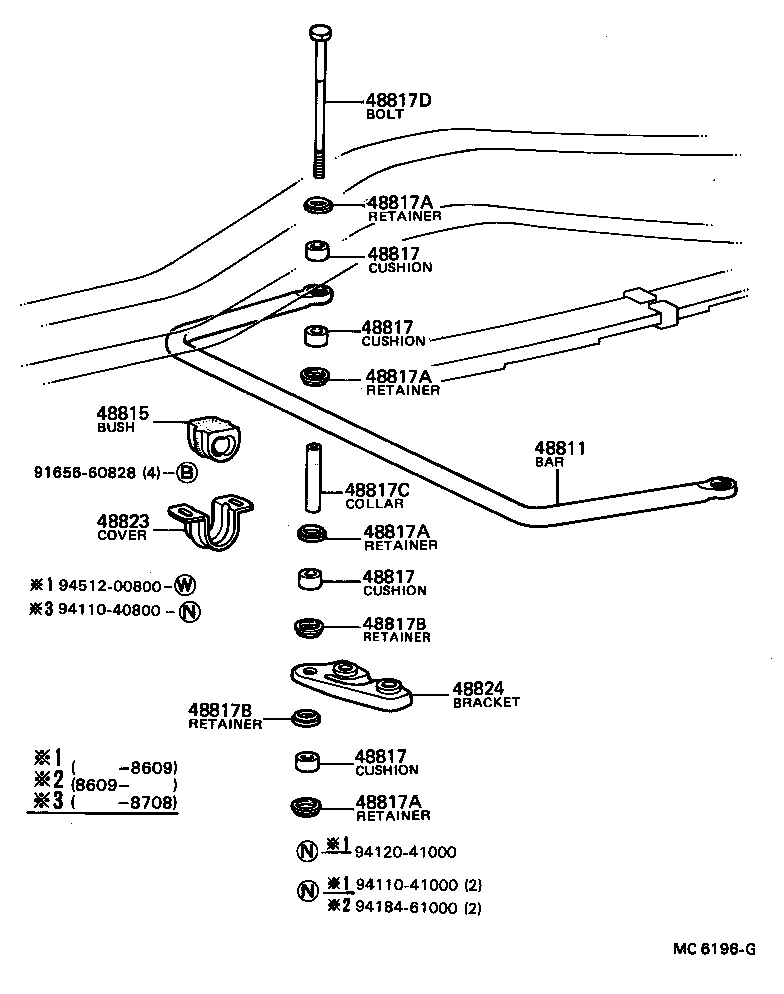

48811	Bar, Stabilizer, Front
48815	Bush, Front Stabilizer Bar, NO.1
48817	Cushion, Front Stabilizer
48817A	Retainer, Cushion, NO.1(FOR FRONT STABILIZER BAR)
48817B	Retainer, Cushion, NO.2(FOR FRONT STABILIZER BAR)
48817C	Collar(FOR STABILIZER BAR)
48817D	Bolt(FOR FRONT STABILIZER)
48823	Cover, Stabilizer Link(FOR FRONT)
48824	Bracket, Stabilizer, Front

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
