Toyota Stout

1979-03 → 2000-02 · chassis RK110,YK110 · catalogue 681220 · Europe

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

37 part groups · 3 illustrations

Illustrations

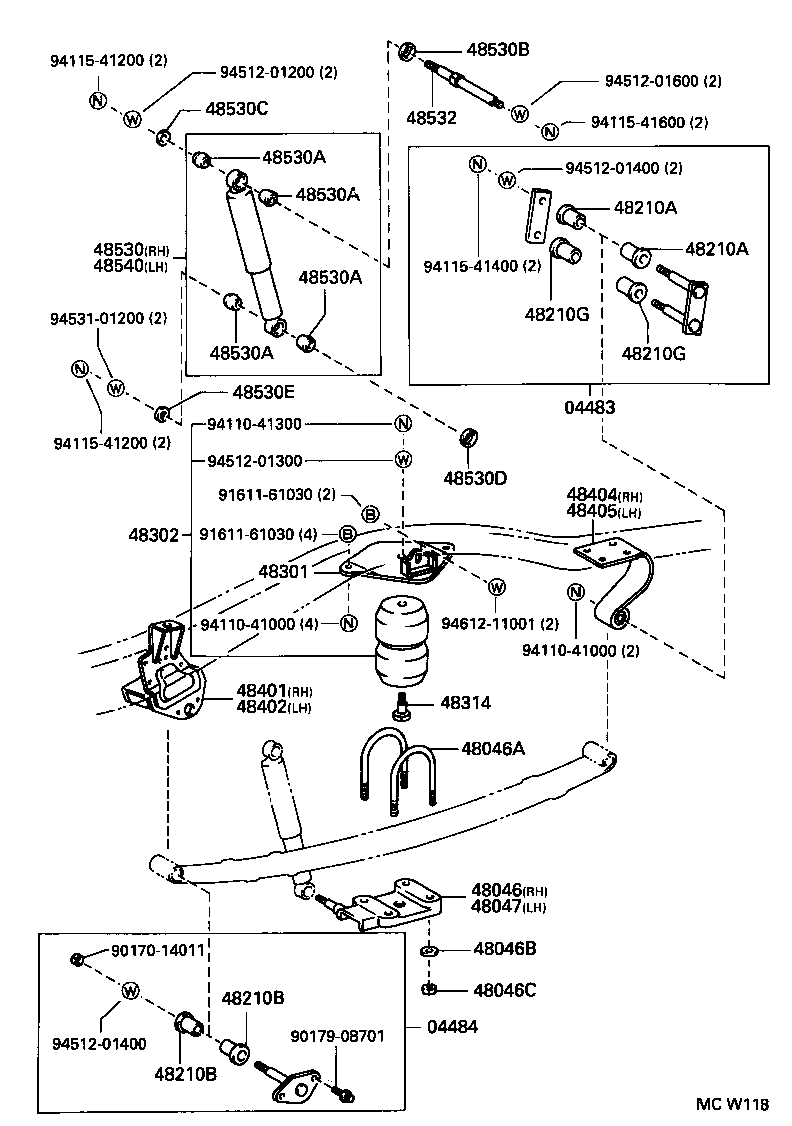

Figure MC6198G MC6198G 1979-03 → 1997-03 Figure MCW118 MCW118 1997-03 → — Figure MC6199C MC6199C 1979-03 → —

Part groups

PNCDescription
04483 Shackle Kit, Rear Spring
04484 Pin Kit, Rear Spring
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48046B Washer(FOR REAR SPRING U BOLT)
48046C Nut(FOR REAR SPRING U BOLT)
48047 Seat Sub-assy, Spring U Bolt, LH
48210 Spring Assy, Rear RH
48210A Bush(FOR REAR SPRING SHACKLE UPPER)
48210B Bush(FOR REAR SPRING PIN)
48210C Bush(FOR REAR SPRING LEAF)
48210G Bush(FOR REAR SPRING SHACKLE LOWER)
48211 Leaf, Rear Spring, NO.1
48212 Leaf, Rear Spring, NO.2
48213 Leaf, Rear Spring, NO.3
48214 Leaf, Rear Spring, NO.4
48215 Leaf, Rear Spring, NO.5
48216 Leaf, Rear Spring, NO.6
48220 Spring Assy, Rear LH
48241 Clip, Rear Spring, NO.1
48242 Clip, Rear Spring, NO.2
48247 Bolt, Rear Spring, Center
48301 Bracket Sub-assy, Hollow Spring
48302 Spring Sub-assy, Hollow
48314 Bolt, Hollow Spring Set
48401 Bracket Sub-assy, Rear Spring, Front RH
48402 Bracket Sub-assy, Rear Spring, Front LH
48404 Bracket Sub-assy, Rear Spring, Rear RH
48405 Bracket Sub-assy, Rear Spring, Rear LH
48530 Absorber Assy, Shock, Rear RH
48530A Bush(FOR REAR SHOCK ABSORBER)
48530B Washer, Rear Shock Absorber Cushion, NO.1
48530C Washer, Rear Shock Absorber Cushion, NO.2
48530D Washer, Rear Shock Absorber Cushion, NO.3
48530E Washer, Rear Shock Absorber Cushion, NO.4
48532 Pin, Rear Shock Absorber Pivot
48540 Absorber Assy, Shock, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
