Toyota Stout

1979-03 → 2000-02 · chassis RK110,YK110 · catalogue 681220 · Europe

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Frame

21 part groups · 2 illustrations

Illustrations

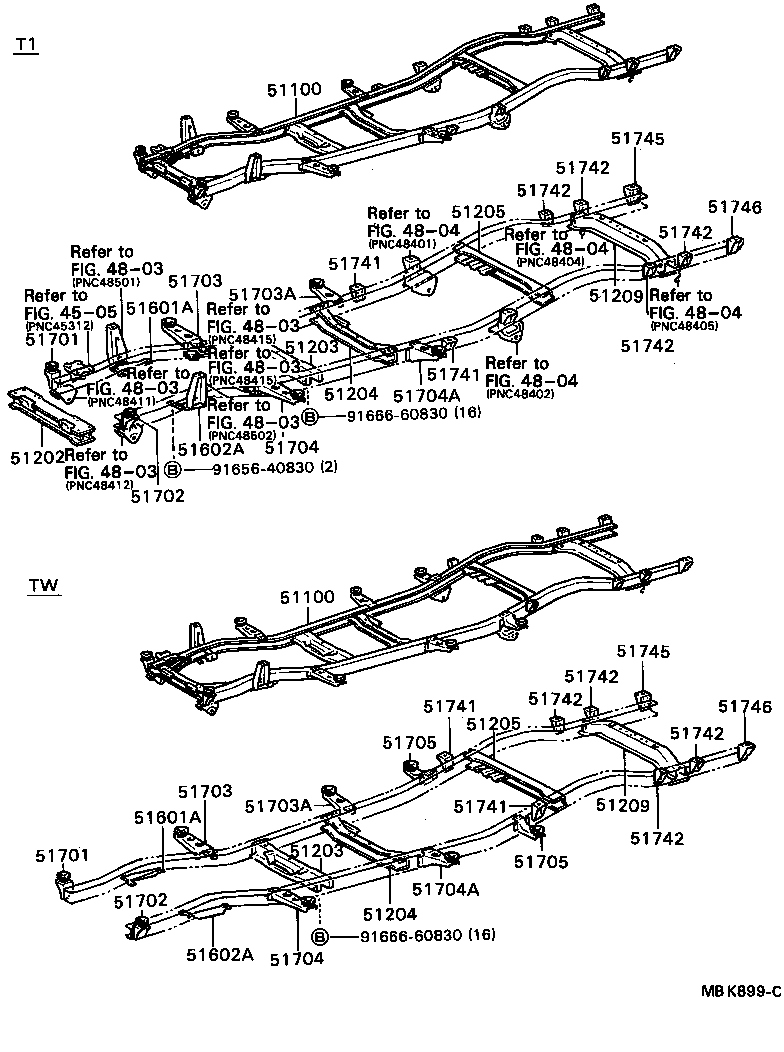

Figure MB8785C MB8785C 1979-03 → 1986-09 Figure MBK899C MBK899C 1986-09 → —

Part groups

PNCDescription
51100 Frame Assy
51202 Crossmember Sub-assy, Frame, NO.1
51203 Crossmember Sub-assy, Frame, NO.2
51204 Crossmember Sub-assy, Frame, NO.3
51205 Crossmember Sub-assy, Frame, NO.4
51209 Crossmember Sub-assy, Frame, NO.8
51401 Bracket Sub-assy, Engine Front Mounting, RH
51402 Bracket Sub-assy, Engine Front Mounting, LH
51601A Stopper Sub-assy, Front Suspension Rebound, RH
51602A Stopper Sub-assy, Front Suspension Rebound, LH
51701 Bracket Sub-assy, Cab Mounting, NO.1 RH
51702 Bracket Sub-assy, Cab Mounting, NO.1 LH
51703 Bracket Sub-assy, Cab Mounting, NO.2, RH
51703A Bracket Sub-assy, Cab Rear Mounting, RH
51704 Bracket Sub-assy, Cab Mounting, NO.2 LH
51704A Bracket Sub-assy, Cab Rear Mounting, LH
51705 Bracket, Rear Body Mounting, NO.5
51741 Bracket, Rear Body Mounting, NO.1
51742 Bracket, Body Mounting, NO.2
51745 Bracket, Body Mounting, NO.5
51746 Bracket, Body Mounting, NO.6
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
