Toyota Stout

1979-03 → 2000-02 · chassis RK110,YK110 · catalogue 681220 · Europe

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

13 part groups · 2 illustrations

Illustrations

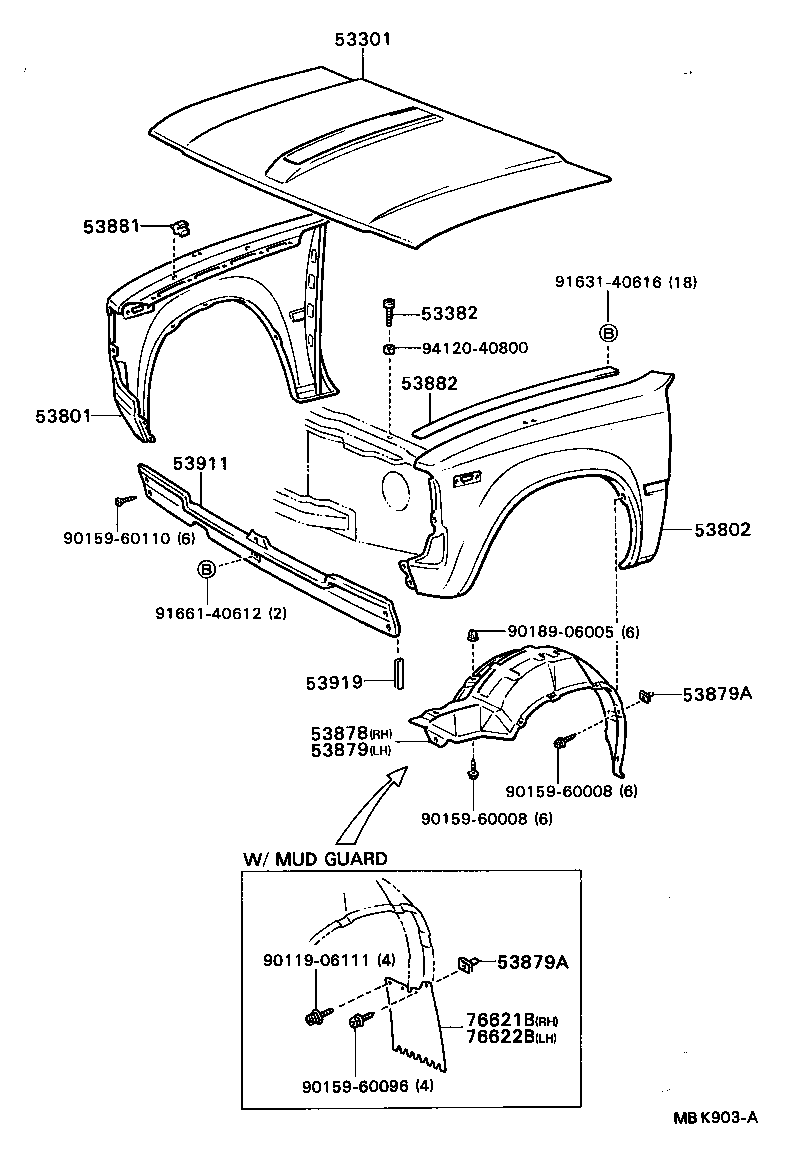

Figure MBD329 MBD329 1979-03 → 1986-09 Figure MBK903A MBK903A 1986-09 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53382 Bumper, Hood, Front
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53878 Liner, Front Fender, RH
53879 Liner, Front Fender, LH
53879A Retainer, Front Fender Liner
53881 Bumper, Fender TO Hood
53882 Packing, Front Fender Main
53911 Panel, Front Valance
53919 Cushion, Valance Panel
76621B Mudguard, Front Body, RH
76622B Mudguard, Front Body, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
