Toyota Stout

1979-03 → 2000-02 · chassis RK110,YK110 · catalogue 681220 · Europe

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

13 part groups · 2 illustrations

Illustrations

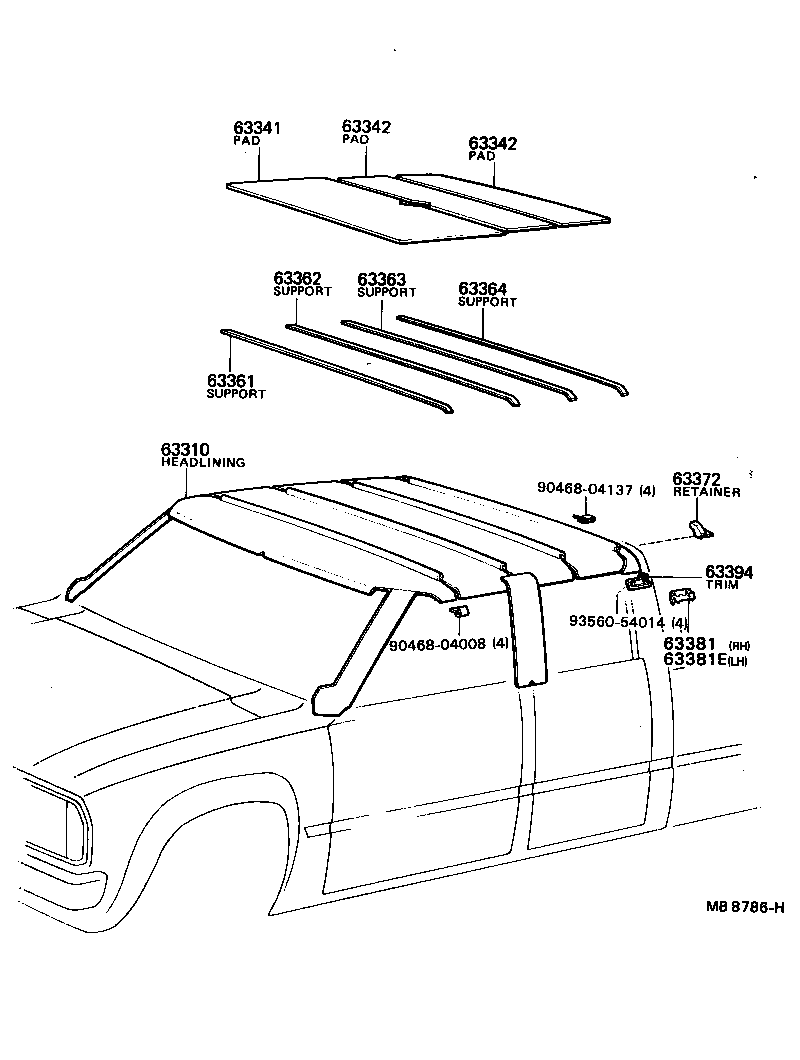

Figure MB8807G MB8807G 1979-03 → — Figure MB8786H MB8786H 1979-03 → —

Part groups

PNCDescription
63310 Headlining Assy, Roof
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63351 Silencer, Roof Side
63354 Pad, Roof Headlining Front Support
63361 Support, Roof Headlining, NO.1
63362 Support, Roof Headlining, NO.2
63363 Support, Roof Headlining, NO.3
63364 Support, Roof Headlining, NO.4
63372 Retainer, Headlining Support
63381 Retainer, Headlining, Front
63381E Retainer, Roof Headlining Trim, Front
63394 Trim, Roof Headlining
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
