Toyota Stout

1979-03 → 2000-02 · chassis RK110,YK110 · catalogue 681220 · Europe

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

13 part groups · 2 illustrations

Illustrations

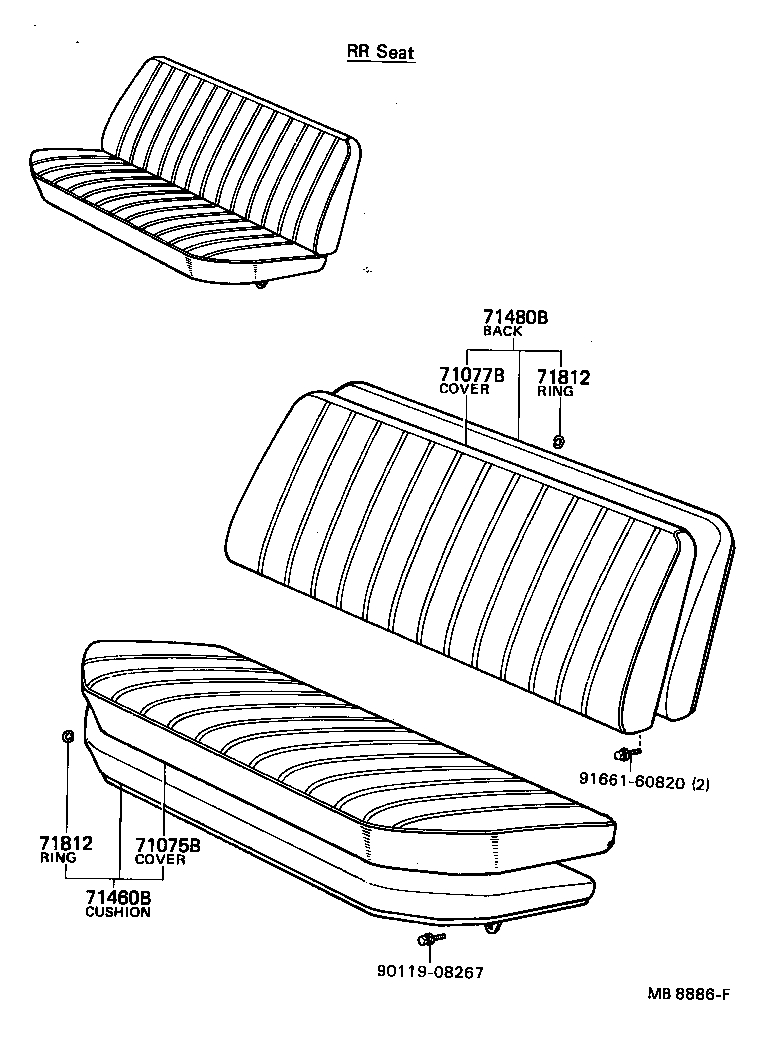

Figure MB8819F MB8819F 1979-03 → — Figure MB8886F MB8886F 1979-03 → —

Part groups

PNCDescription
71071B Cover, Front Seat Cushion(FOR BENCH TYPE)
71073B Cover, Front Seatback(FOR BENCH TYPE)
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71410B Cushion Assy, Front Seat(FOR BENCH TYPE)
71430B Back Assy, Front Seat(FOR BENCH TYPE)
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71812 Clip (FOR FRONT SEAT CUSHION COVER)
71945 Bumper, Seatback
72110B Track Assy, Seat, Outer RH (FOR BENCH SEAT)
72120B Track Assy, Seat, Outer LH (FOR BENCH SEAT)
72301 Wire Sub-assy, Seat Track Equalizing
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
