Toyota Stout

1979-03 → 2000-02 · chassis RK110,YK110 · catalogue 681220 · Europe

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate

9 part groups · 2 illustrations

Illustrations

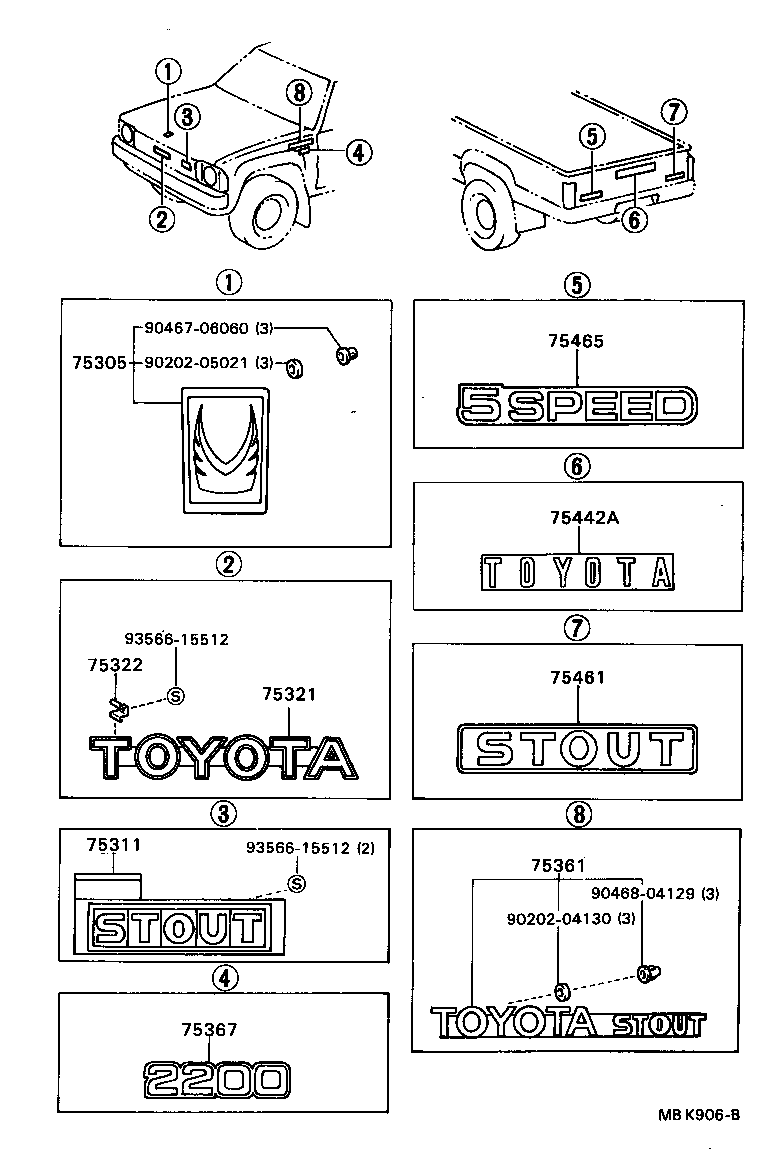

Figure MB8825B MB8825B 1979-03 → 1986-09 Figure MBK906B MBK906B 1986-09 → —

Part groups

PNCDescription
75305 Emblem, Hood
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75321 Plate, Radiator Grille OR Front Panel Name
75322 Retainer, Radiator Grille Name Plate
75361 Plate, Front Fender Name, NO.1 (MODEL MARK)
75367 Plate, Front Fender Name, NO.3 (DISPLACEMENT)
75442A Plate, Back Door Name, NO.2
75461 Plate, Rear Name, NO.2 (MODEL MARK)
75465 Plate, Rear Name, NO.5 (MECHANISM)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
