Toyota Stout

1979-03 → 2000-02 · chassis RK110,YK110 · catalogue 681220 · Europe

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

14 part groups · 4 illustrations

Illustrations

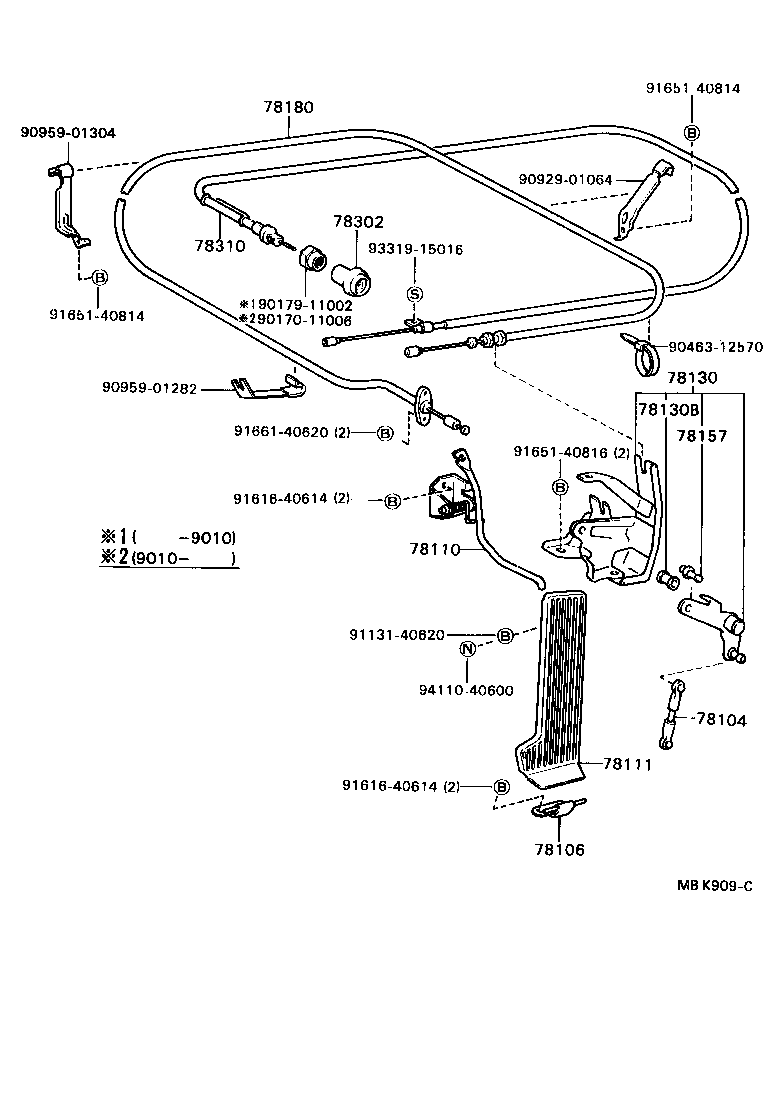

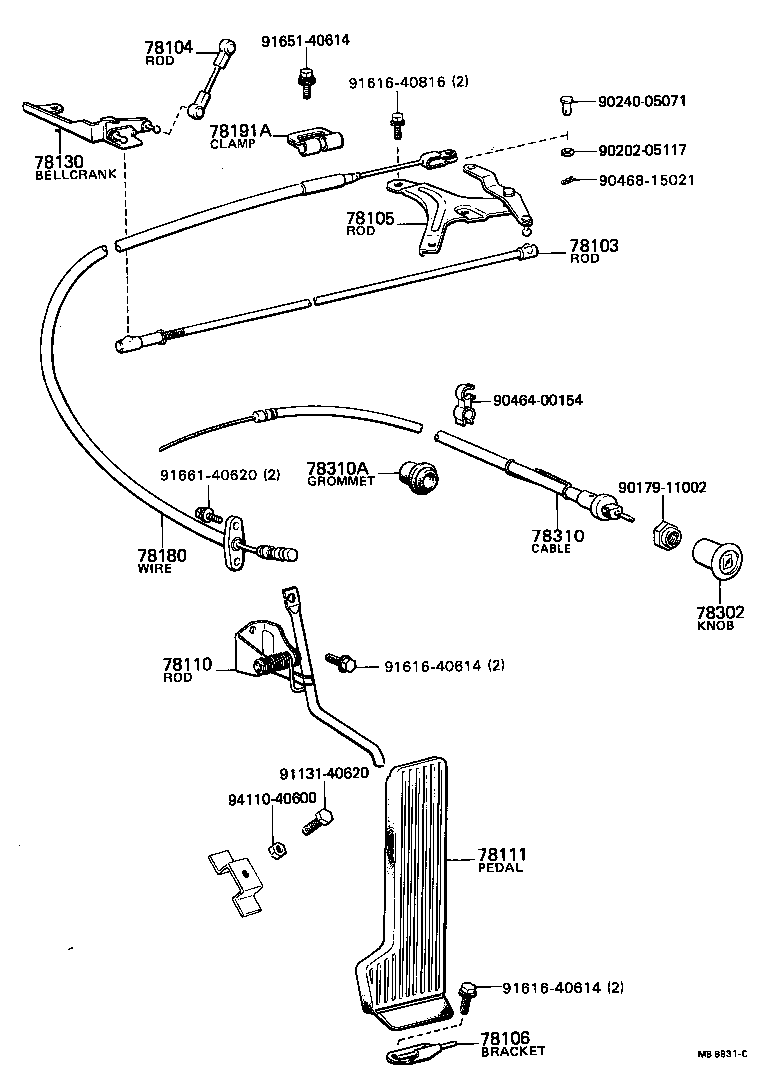

Figure MB8830C MB8830C 1979-03 → 1986-09 Figure MBK908B MBK908B 1986-09 → — Figure MB8831C MB8831C 1979-03 → 1986-09 Figure MBK909C MBK909C 1986-09 → —

Part groups

PNCDescription
78103 Rod Sub-assy, Accelerator Connecting, NO.1
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78105 Rod Sub-assy, Accelerator Connecting, NO.3
78106 Bracket Sub-assy, Accelerator Pedal Support
78110 Rod Assy, Accelerator Pedal
78111 Pedal, Accelerator
78130 Bellcrank Assy, Accelerator
78130B Bush, Accelerator Bellcrank
78157 Ball, Accelerator Joint
78180 Wire Assy, Accelerator
78191A Clamp (FOR ACCELERATOR WIRE SET)
78302 Knob Sub-assy, Choke Rod
78310 Cable Assy, Choke
78310A Grommet, Choke Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
