Toyota Stout

1979-03 → 2000-02 · chassis RK110,YK110 · catalogue 681220 · Europe

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

10 part groups · 5 illustrations

Illustrations

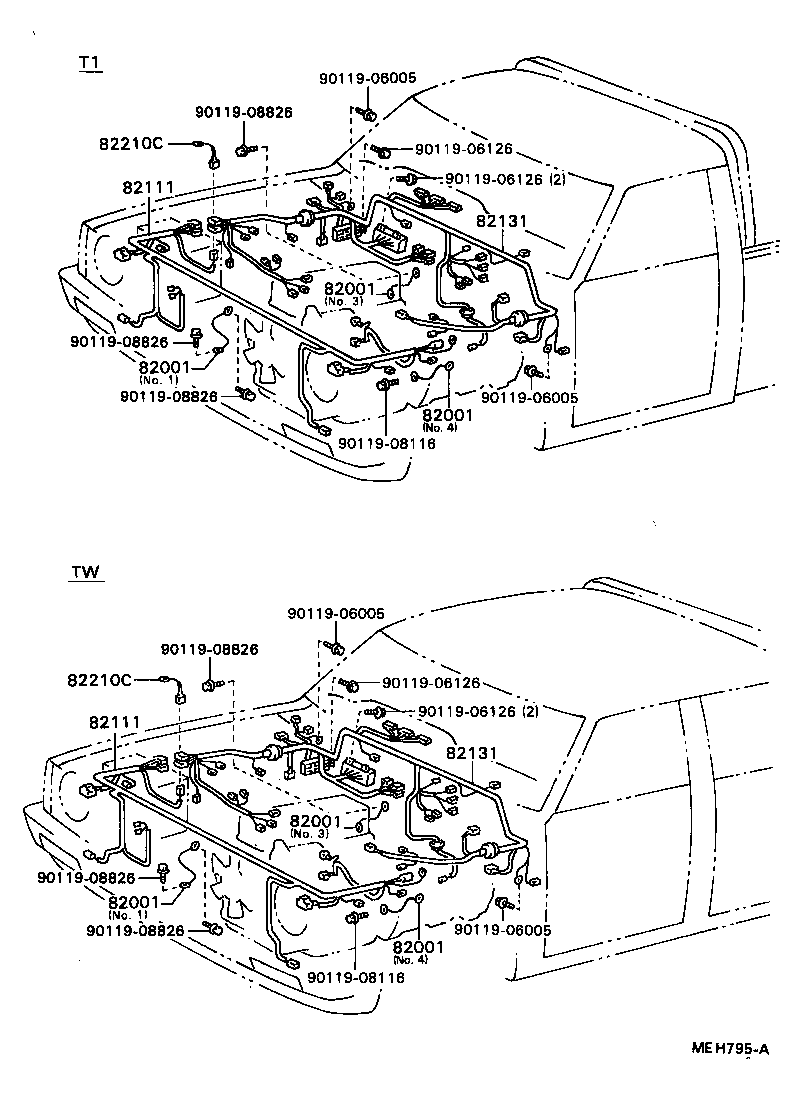

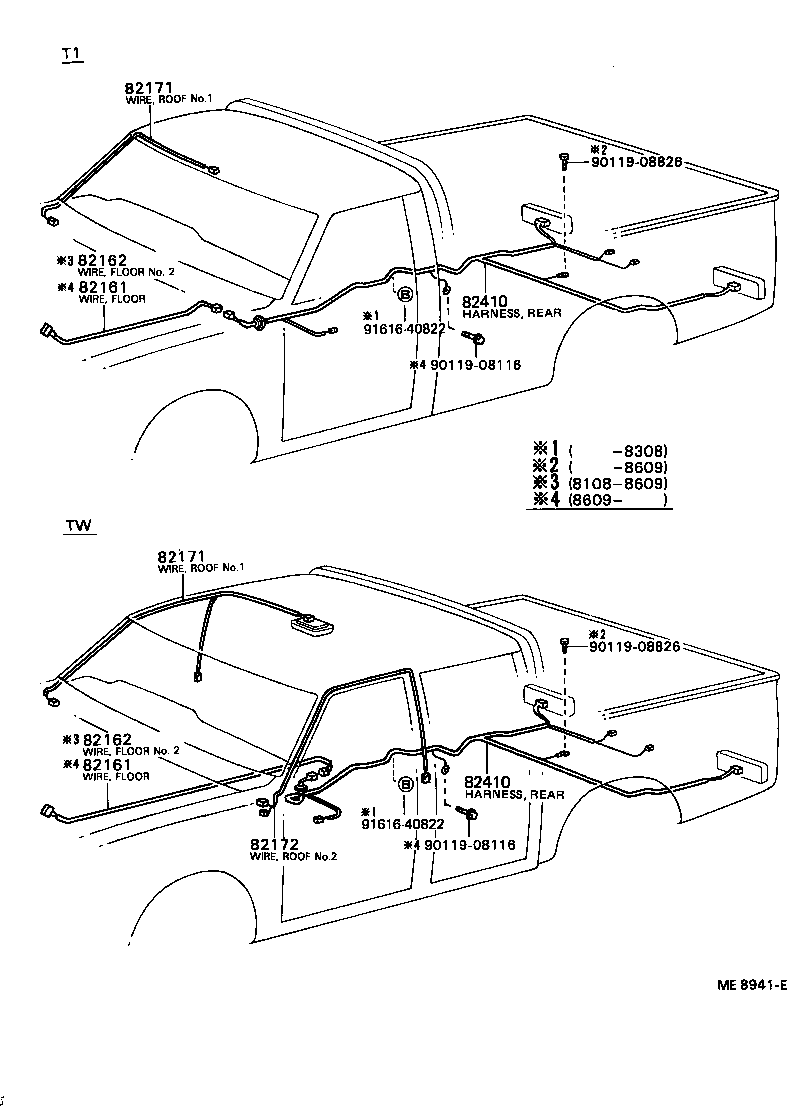

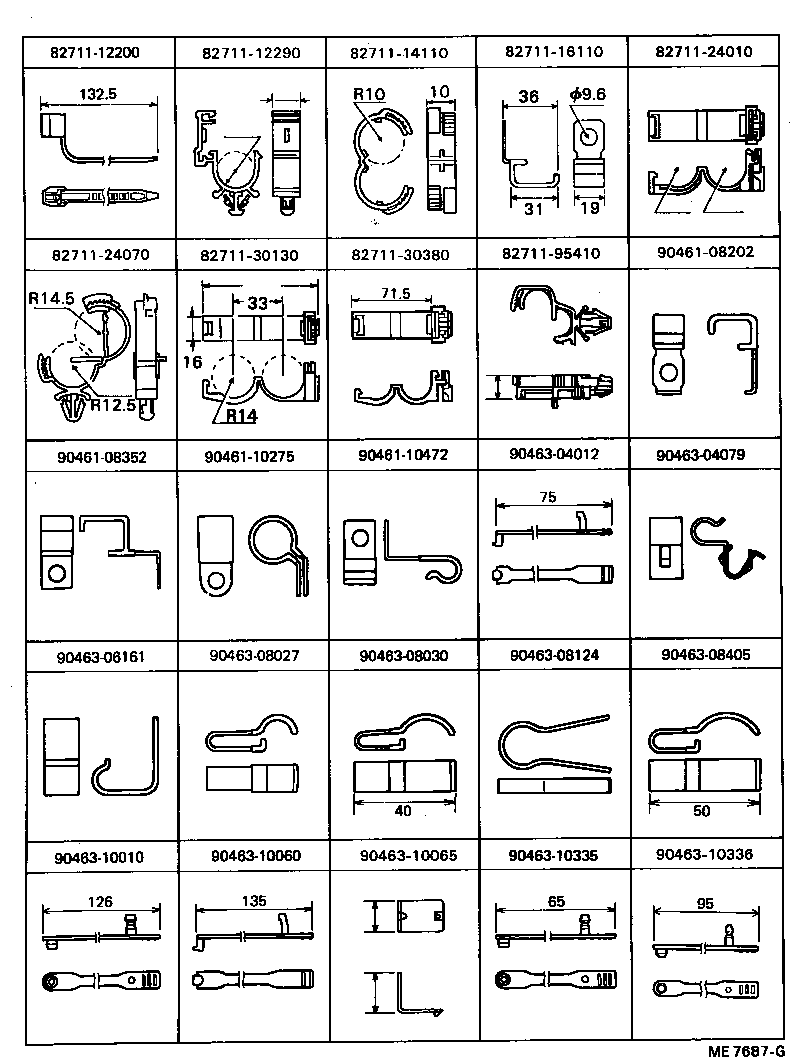

Figure ME8940E ME8940E 1979-03 → 1986-09 Figure MEH795A MEH795A 1986-09 → — Figure ME8941E ME8941E 1979-03 → — Figure ME7687G ME7687G 1979-03 → — Figure MEH807 MEH807 1979-03 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82131 Wire, Cowl
82161 Wire, Floor
82162 Wire, Floor, NO.2
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82210C Fusible Link
82210D Fusible Link
82410 Harness Assy, Wiring TO Rear Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
