Toyota Stout

1979-03 → 2000-02 · chassis RK110,YK110 · catalogue 681220 · Europe

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

14 part groups · 2 illustrations

Illustrations

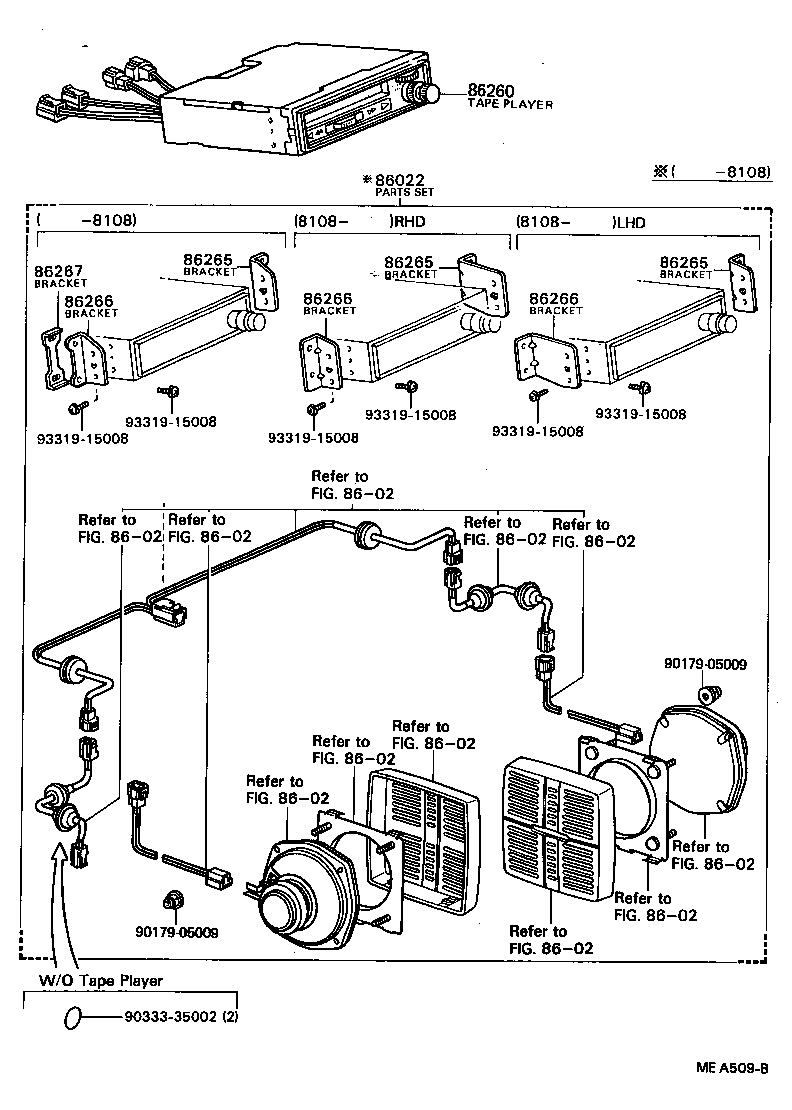

Figure ME7700H ME7700H 1979-03 → — Figure MEA509B MEA509B 1979-03 → —

Part groups

PNCDescription
86011 Radio & Setting Parts Set
86011A Condenser, Radio Setting
86022 Parts Set, Tape Player Setting
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86120B Knob, Radio Receiver Tuning, NO.1
86120C Knob, Radio Receiver Tuning, NO.2
86120D Knob, Radio Receiver Tone
86211 Bracket, Radio, NO.1
86237 Wire, Condenser
86260 Tape Player Assy
86265 Bracket, Tape Player, NO.1
86266 Bracket, Tape Player, NO.2
86267 Bracket, Tape Player, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
