Toyota Stout
1979-03 → 2000-02 · chassis RK110,YK110 · catalogue 681220 · Europe
Discontinued model
Data version 2001-01

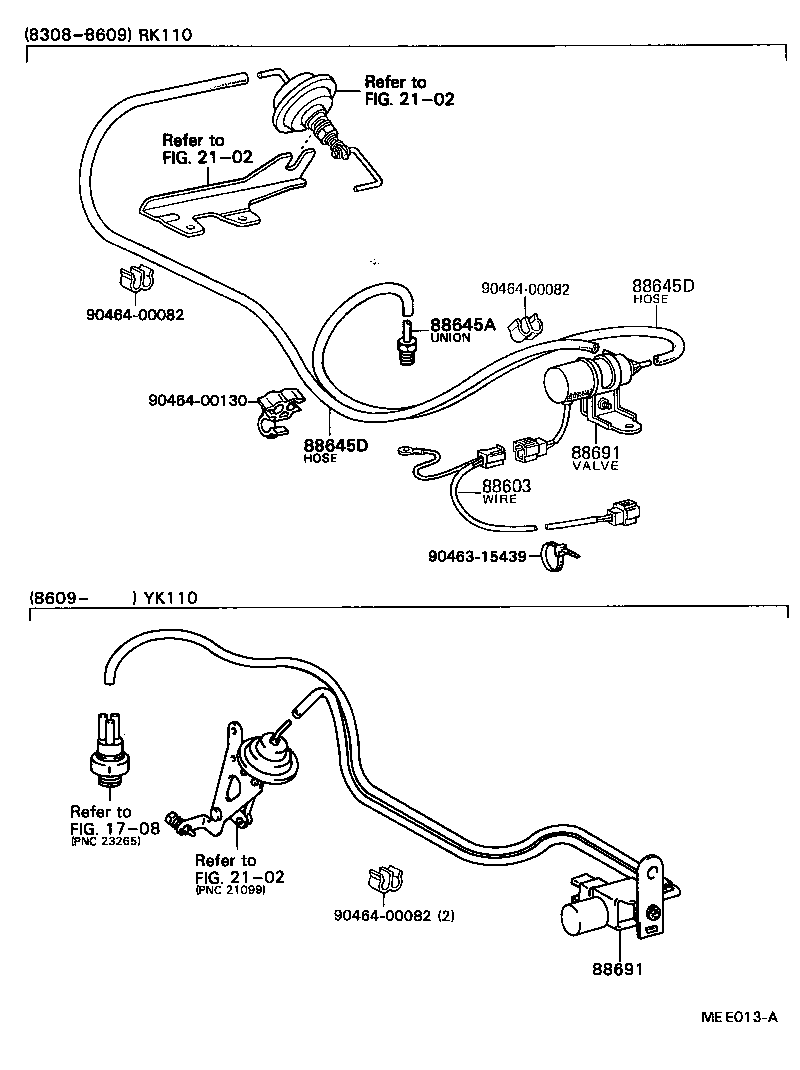

Heating & Air Conditioning - Vacuum Piping
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88031 | Actuator Set, Idle-up |
| 88031F | Link(FOR IDLE-UP ACTUATOR) |
| 88031H | Lever(FOR IDLE-UP ACTUATOR) |
| 88031N | Bracket, Idle-up Actuator |
| 88603 | Wire, Idle UP Device |
| 88645A | Union (FOR IDLE UP DEVICE) |
| 88645D | Hose (FOR IDLE UP DEVICE) |
| 88691 | Valve, Magnet (FOR IDLE UP DEVICE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
