Toyota Stout

1979-03 → 2000-02 · chassis RK110,YK110 · catalogue 681220 · Europe

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

15 part groups · 6 illustrations

Illustrations

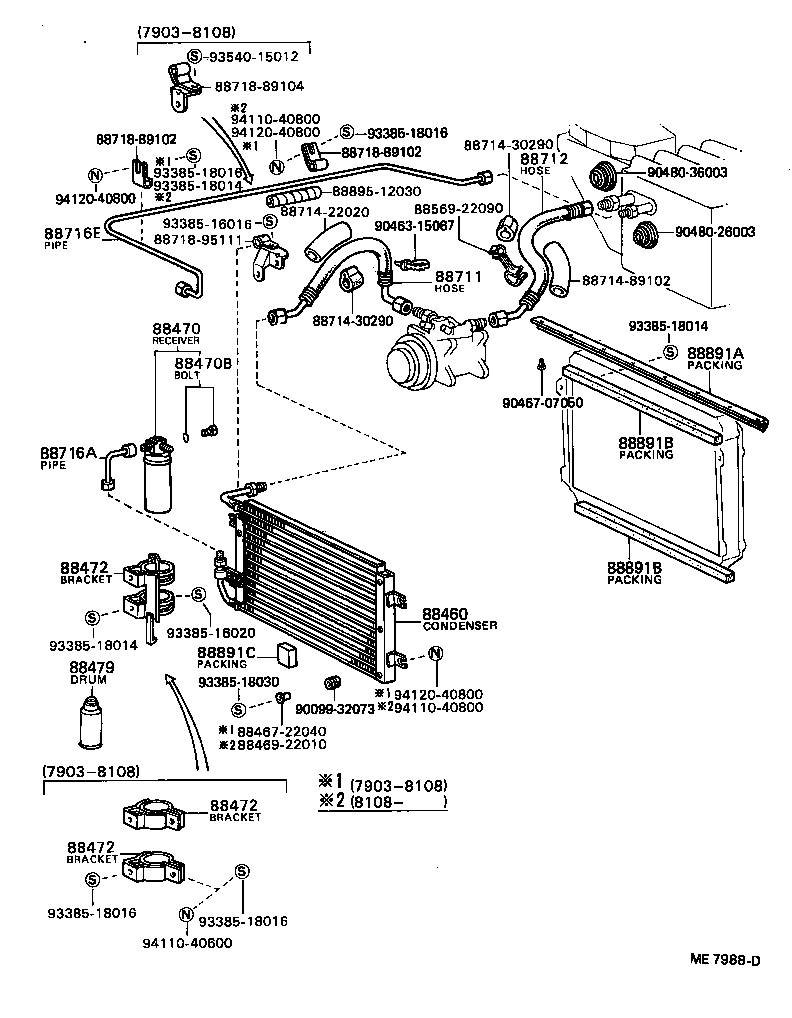

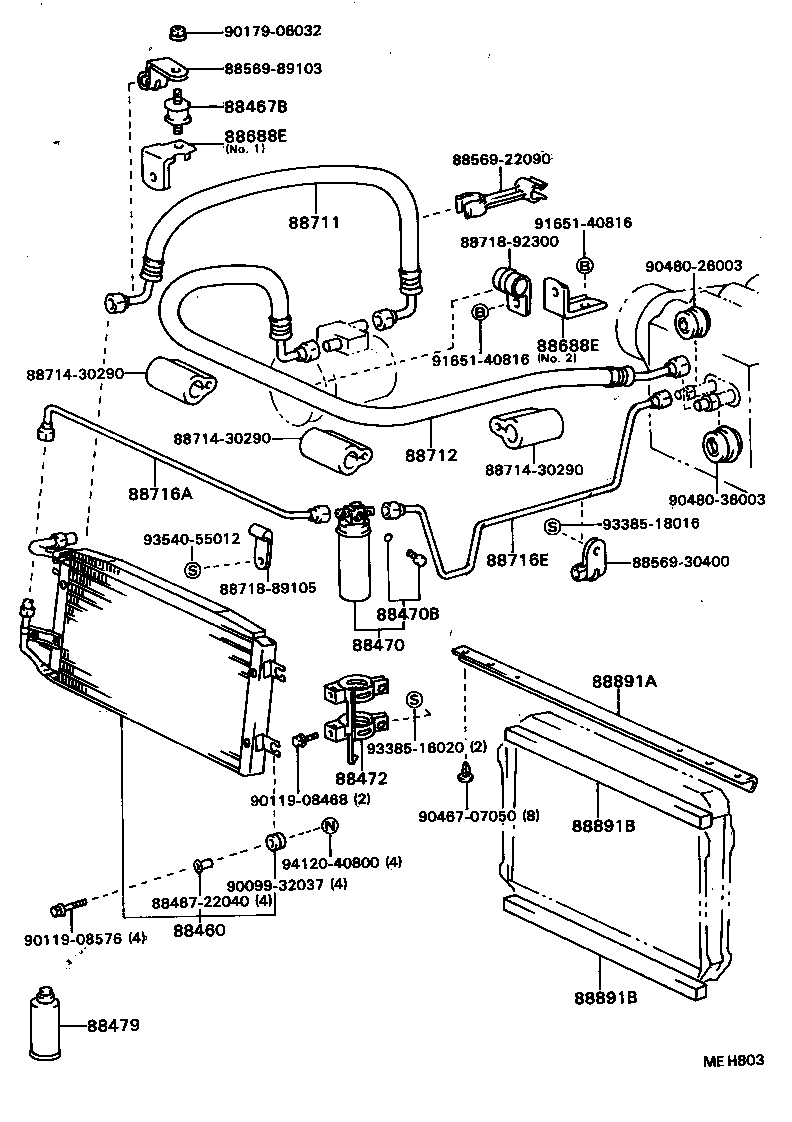

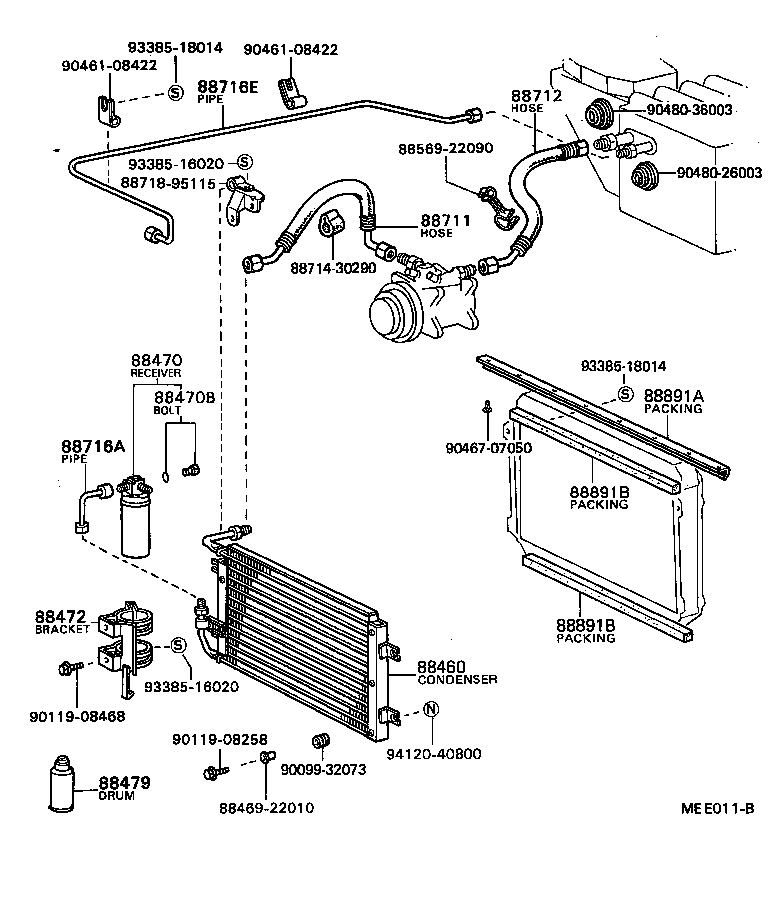

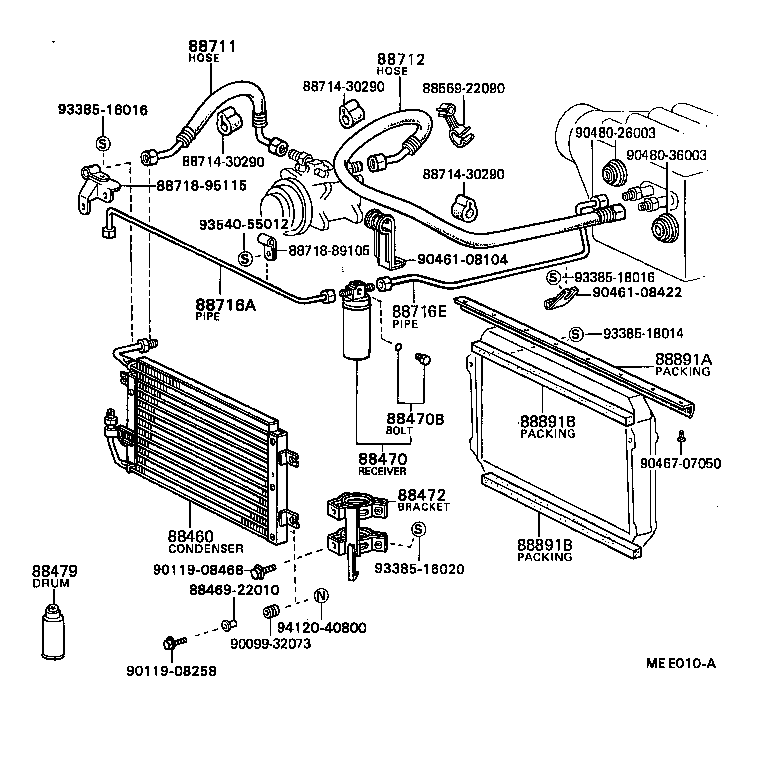

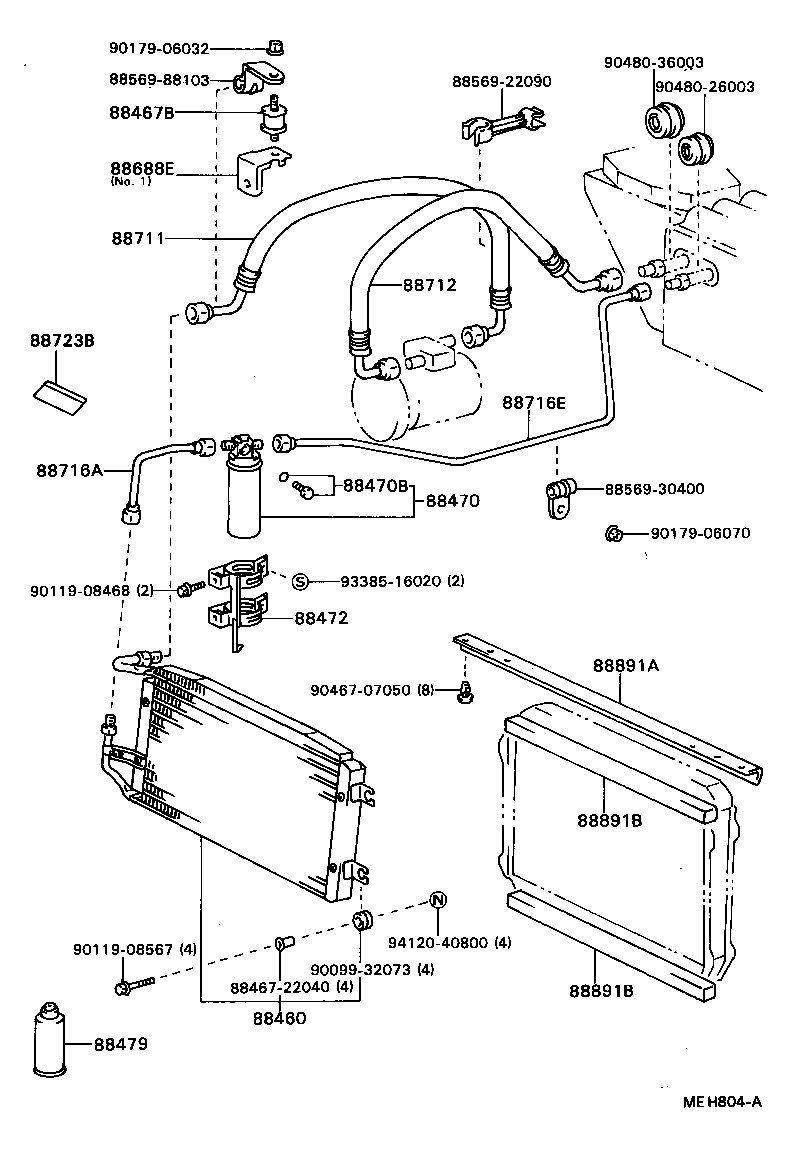

Figure MEB275B MEB275B 1979-03 → 1983-08 Figure MEE010A MEE010A 1983-08 → 1986-09 Figure MEH803 MEH803 1986-09 → — Figure ME7988D ME7988D 1979-03 → 1983-08 Figure MEE011B MEE011B 1983-08 → 1986-09 Figure MEH804A MEH804A 1986-09 → —

Part groups

PNCDescription
88460 Condenser Assy, Cooler
88467B Insulator, Cooler Condenser Mounting
88470 Receiver & Dryer Assy, Cooler
88470B Bolt, Fuse
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88688E Bracket, Cooler Refrigerant Hose, NO.1
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716E Pipe, Cooler Refrigerant Liquid, E
88723B Label, Cooler Service Caution
88891A Packing A (FOR COOLER)
88891B Packing B (FOR COOLER)
88891C Packing C (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
