Toyota Hiace
1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · Europe
Discontinued model
Data version 1983-06

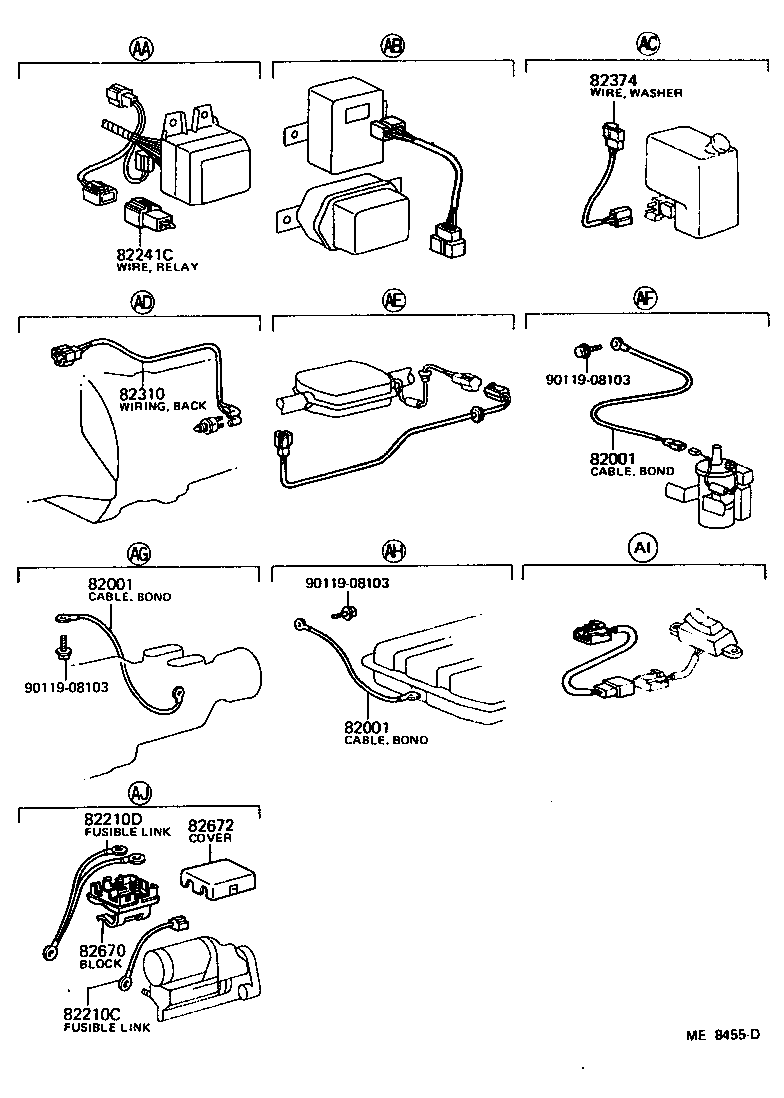

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82001 — Cable, Bond, NO.1 | ||||
| 88648-90701 note |
Cable, Bond, NO.1
1977-02 → 1979-12
ended
|
RH42 | — | |
| 88648-95A04 note |
Cable, Bond, NO.1
1977-02 → 1982-11
ended
|
RH20,22,3# RHD (BUS,WG) (GEN,SA) | — | |
| 90980-07021 note |
Cable, Bond, NO.1
1977-02 → 1982-11
ended
|
RH11,20,22,3#,42 | — | |
| 90980-07051 note |
Cable, Bond, NO.1
1979-08 → 1981-04
ended
|
RH11,20,22,3#,42 | — | |
| 90980-07051 note |
Cable, Bond, NO.1
1981-04 → 1982-11
ended
|
RH11,20,30 | — | |
| 90980-07051 note |
Cable, Bond, NO.1
1977-02 → 1979-08
ended
|
LH11,20,RH11,2#,3#,42 | — | |
| 90980-07124 note |
Cable, Bond, NO.1
1981-04 → 1982-11
ended
|
RH22,32 | — | |
| 90980-07162 note |
Cable, Bond, NO.1
1979-08 → 1982-11
ended
|
LH11,20,30,RH25 | — | |
| 82210C — Fusible Link | ||||
| 88648-95A09 note |
Fusible Link
1981-05 → 1982-11
ended
|
LH20 12S | — | |
| 90982-08014 note |
Fusible Link
1977-02 → 1979-12
ended
|
RH42 | — | |
| 90982-08014 note |
Fusible Link
1977-02 → 1979-12
ended
|
RH2#,3# RHD (ARL,GEN) | — | |
| 90982-08028 note |
Fusible Link
1981-05 → 1982-11
ended
|
RH20,30 RHD BUS GEN | — | |
| 90982-08028 note |
Fusible Link
1981-03 → 1982-11
ended
|
RH22,32 LHD (12S,15S) | — | |
| 90982-08028 note |
Fusible Link
1980-12 → 1982-11
ended
|
RH20 LHD BUS GEN | — | |
| 90982-08035 note |
Fusible Link
1981-05 → 1981-08
ended
|
LH11,20,30 4H | — | |
| 90982-08035 note |
Fusible Link
1979-01 → 1981-05
ended
|
LH11,20,30 | — | |
| 90982-08058 note |
Fusible Link
1980-12 → 1982-11
ended
|
RH11,20,22,3#,42 | — | |
| 90982-08058 note |
Fusible Link
1977-02 → 1979-12
ended
|
RH11,2#,3#,42 | — | |
| 90982-08115 note |
Fusible Link
1981-08 → 1982-11
ended
|
LH11,20,30 EUR | — | |
| 90982-08143 note |
Fusible Link
1979-12 → 1980-12
ended
|
RH11,2#,3#,42 | — | |
| 90982-08153 note |
Fusible Link
1981-08 → 1982-11
ended
|
LH11,20,30 4H | — | |
| 90982-08177 note |
Fusible Link
1981-05 → 1981-08
ended
|
LH11,20,30 EUR | — | |
| 90982-08177 note |
Fusible Link
1981-08 → 1982-11
ended
|
LH20,30 LHD EUR | — | |
| 90982-08177 note |
Fusible Link
1981-08 → 1982-11
ended
|
LH11 LHD T3 | — | |
| 82210D — Fusible Link | ||||
| 90982-08058 note |
Fusible Link
1981-08 → 1982-11
ended
|
LH11,20,30 4H | — | |
| 90982-08098 |
Fusible Link
1979-01 → 1979-12
ended
|
LH11,20,30 | — | |
| 90982-08098 note |
Fusible Link
1981-05 → 1981-08
ended
|
LH11,20,30 4H | — | |
| 90982-08098 |
Fusible Link
1980-12 → 1981-05
ended
|
LH11,20,30 | — | |
| 90982-08144 |
Fusible Link
1979-12 → 1980-12
ended
|
LH11,20,30 | — | |
| 90982-08173 |
Fusible Link
1981-08 → 1982-11
ended
|
LH11,20,30 EUR | — | |
| 90982-08178 note |
Fusible Link
1981-05 → 1981-08
ended
|
LH11,20,30 EUR | — | |
| 90982-08178 note |
Fusible Link
1981-08 → 1982-11
ended
|
LH20,30 LHD EUR | — | |
| 90982-08178 note |
Fusible Link
1981-08 → 1982-11
ended
|
LH11 LHD T3 | — | |
| 82241C — Wire, Relay | ||||
| 82241-22060 |
Wire, Relay
1980-09 → 1980-12
ended
|
LH11 GEN | — | |
| 82241-22060 |
Wire, Relay
1980-12 → 1981-05
ended
|
LH11,20,30,RH11 GEN | — | |
| 82241-22060 note |
Wire, Relay
1980-12 → 1982-01
ended
|
RH20,30 RHD GEN | — | |
| 82241-22060 |
Wire, Relay
1981-05 → 1982-11
ended
|
LH11,RH11 GEN | — | |
| 82241-22060 |
Wire, Relay
1981-08 → 1982-11
ended
|
LH20,30,RH11,20,22,32 ARL | — | |
| 82310 — Wiring Assy, TO Back UP Lamp Switch | ||||
| 82302-95A00 |
Wiring Assy, TO Back UP Lamp Switch
1979-12 → 1980-01
ended
|
LH11,20,30 EUR | — | |
| 82302-95A00 |
Wiring Assy, TO Back UP Lamp Switch
1980-01 → 1982-11
ended
|
LH11 EUR | — | |
| 82302-95A01 |
Wiring Assy, TO Back UP Lamp Switch
1979-12 → 1980-12
ended
|
LH20,30 GEN | — | |
| 82302-95A02 |
Wiring Assy, TO Back UP Lamp Switch
1980-01 → 1982-11
ended
|
LH20,30 EUR | — | |
| 82302-95A03 |
Wiring Assy, TO Back UP Lamp Switch
1980-09 → 1980-12
ended
|
LH11 GEN | — | |
| 82302-95A03 |
Wiring Assy, TO Back UP Lamp Switch
1980-12 → 1982-11
ended
|
LH11,20,30 4H | — | |
| 82374 — Wire, Washer | ||||
| 88648-95A06 note |
Wire, Washer
1979-12 → 1980-12
ended
|
RH11,20,22,3# RHD (03S,06S) (ARL,GEN) | — | |
| 88648-95A06 note |
Wire, Washer
1980-12 → 1982-11
ended
|
RH11 RHD (ARL,GEN,IDN) | — | |
| 88648-95A06 note |
Wire, Washer
1981-05 → 1982-11
ended
|
RH20,30 RHD BUS GEN | — | |
| 82670 — Block Assy, Junction, NO.1 | ||||
| 82671-30030 |
Block Assy, Junction, NO.1
1981-05 → 1982-11
ended
|
LH11,20,30 EUR | — | |
| 82672 — Cover, Junktion Block | ||||
| 82672-26010 |
Cover, Junktion Block
1982-06 → 1982-11
ended
|
LH11,20,30 EUR | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
