Toyota Hiace
1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · Europe
Discontinued model
Data version 1983-06
Timing Gear Cover & Rear End Plate

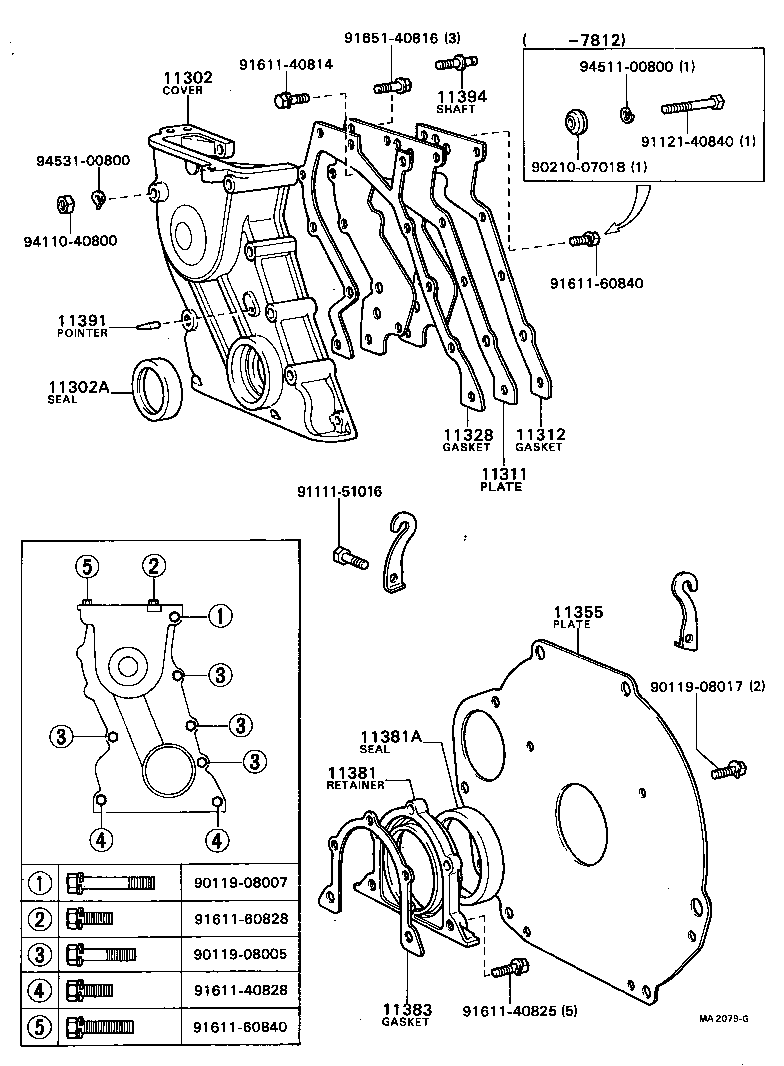

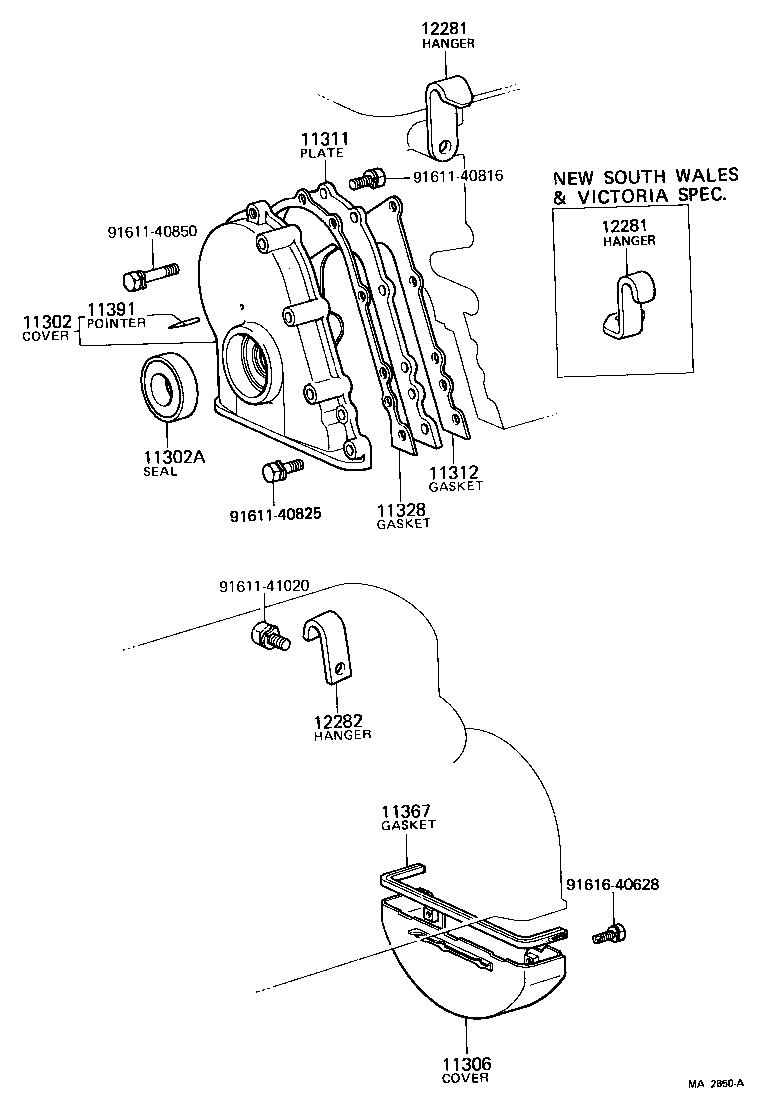

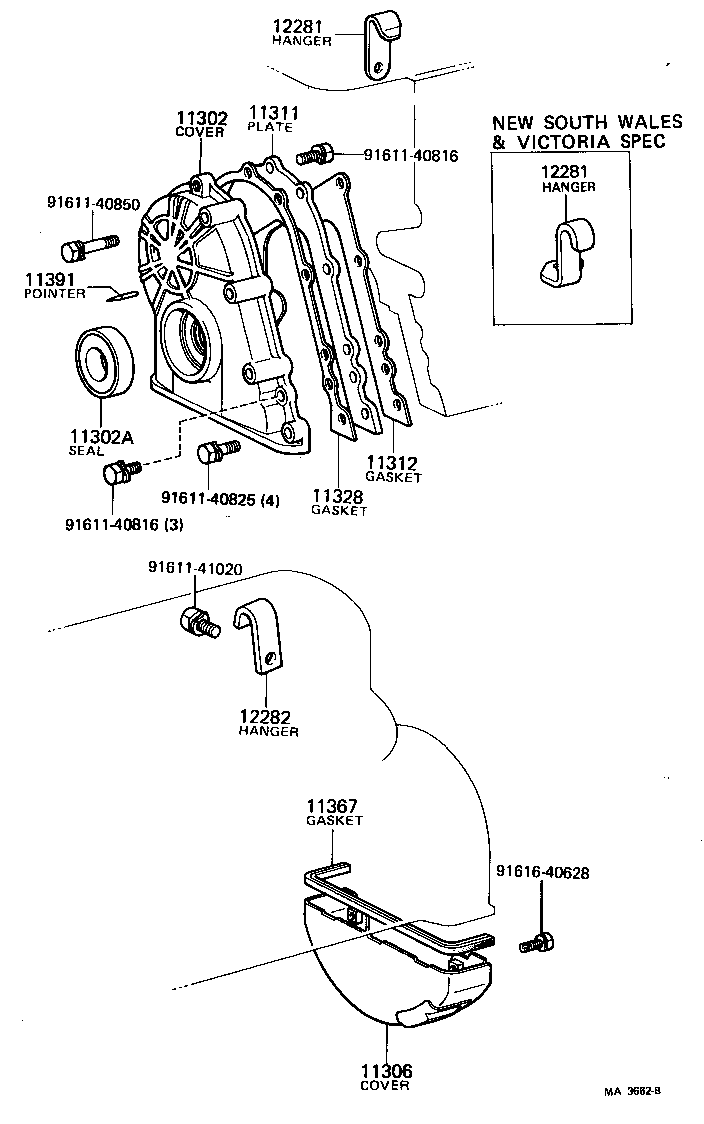

26 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11301 | Case Sub-assy, Timing Gear |
| 11301B | Bolt,Stud(FOR TIMING GEAR CASE) |
| 11301C | Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) |
| 11302 | Cover Sub-assy, Timing Chain OR Belt |
| 11302A | Seal, Oil(FOR TIMING CHAIN OR BELT COVER) |
| 11302E | Plug, Straight(FOR TIMING GEAR COVER) |
| 11305 | Retainer, Oil Seal, NO.2 |
| 11305A | Seal, Oil(FOR OIL SEAL RETAINER, NO.2) |
| 11305B | Pin, Ring(FOR OIL SEAL RETAINER, NO.2) |
| 11306 | Cover Sub-assy, Flywheel Housing Under |
| 11311 | Plate, Front End |
| 11312 | Gasket, Front End Plate |
| 11328 | Gasket, Timing Gear OR Chain Cover |
| 11329 | Gasket, Timing Gear Rear Cover |
| 11354 | Seal, Flywheel Housing Dust |
| 11355 | Plate, Rear End |
| 11367 | Gasket, Flywheel Housing Under |
| 11381 | Retainer, Engine Rear Oil Seal |
| 11381A | Seal, Engine Rear Oil |
| 11383 | Gasket, Engine Rear Oil Seal Retainer |
| 11384 | Gasket, Oil Seal Retainer, NO.2 |
| 11391 | Pointer, Timing |
| 11394 | Shaft, Chain Tenshioner |
| 11492A | Plate, Water Seal |
| 12281 | Hanger, Engine, NO.1 |
| 12282 | Hanger, Engine, NO.2 |
