Toyota Hiace

1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · Europe

Discontinued model Data version 1983-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

9 part groups · 4 illustrations

Illustrations

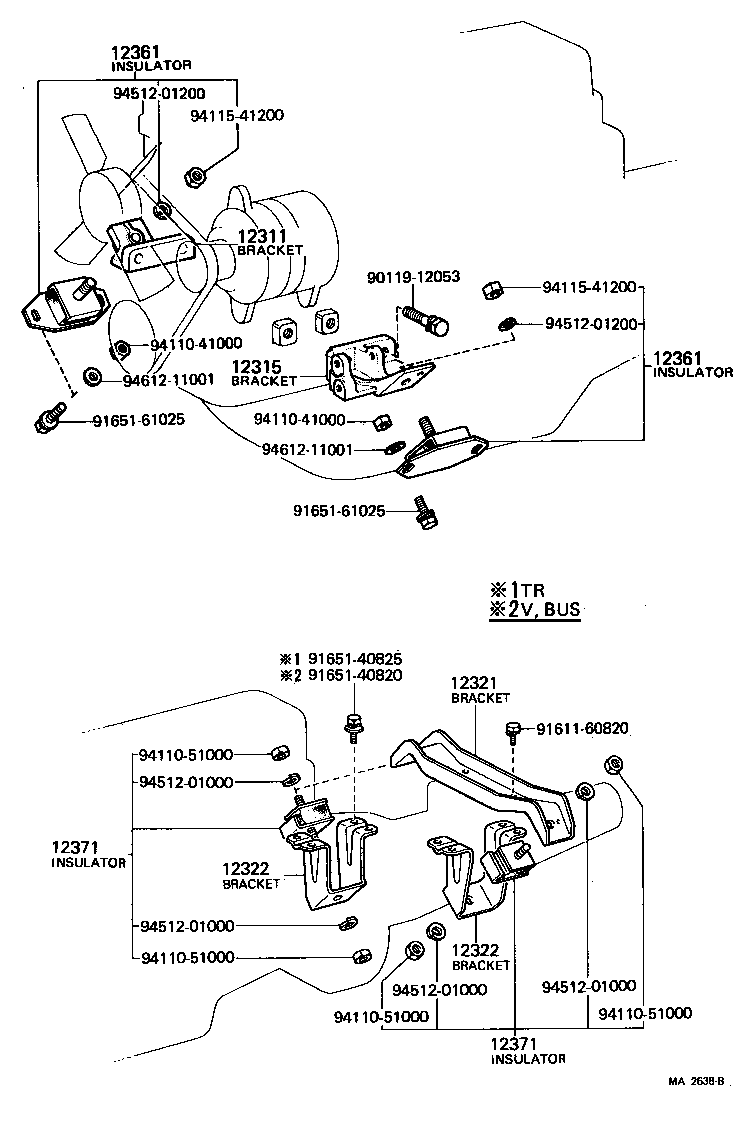

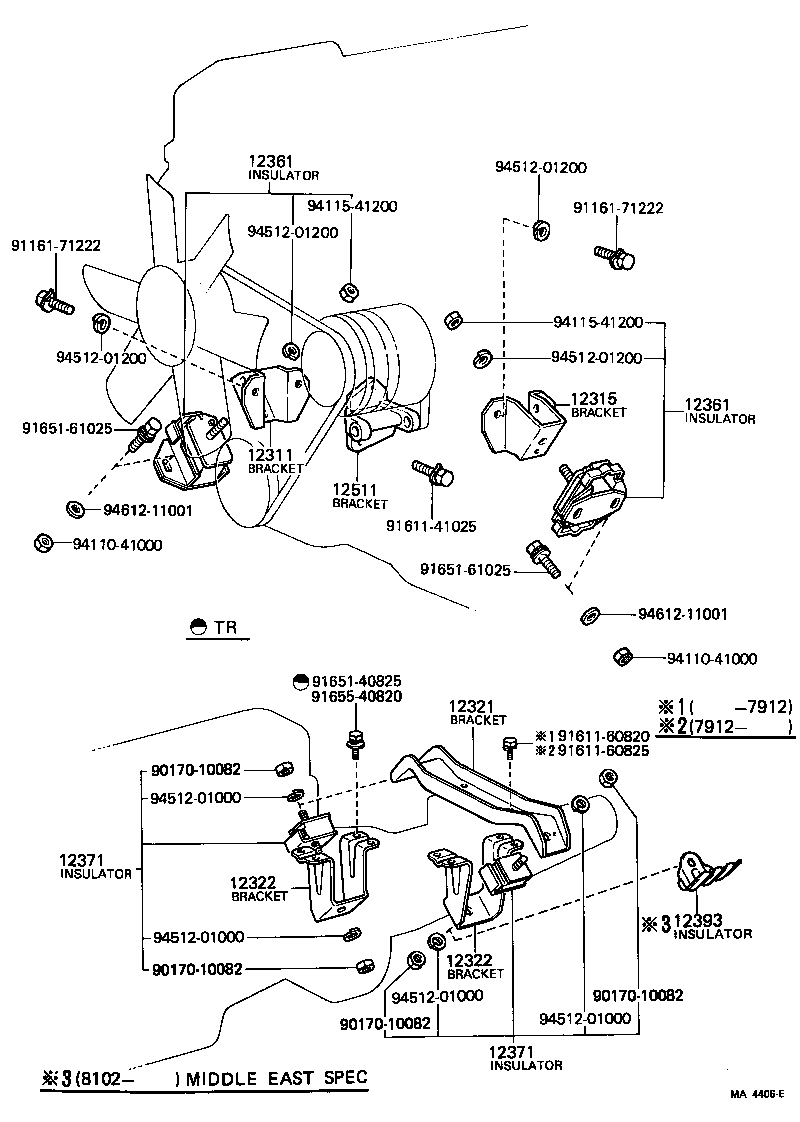

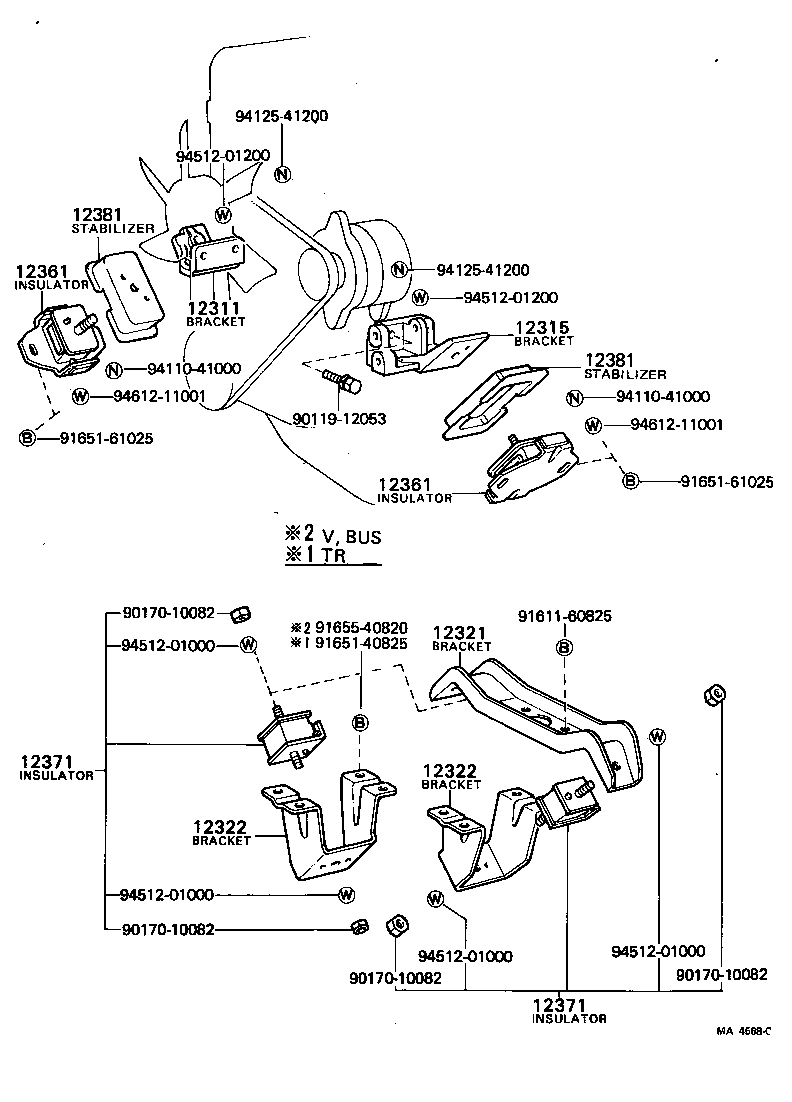

Figure MA5506B MA5506B 1979-01 → — Figure MA2638B MA2638B 1977-02 → 1979-12 Figure MA4568C MA4568C 1979-12 → — Figure MA4406E MA4406E 1977-02 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12322 Bracket, Engine Mounting, Rear NO.2
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12393 Insulator, Engine Mounting Heat, Front
12511 Bracket, Alternator, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
