Toyota Hiace
1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · Europe
Discontinued model
Data version 1983-06

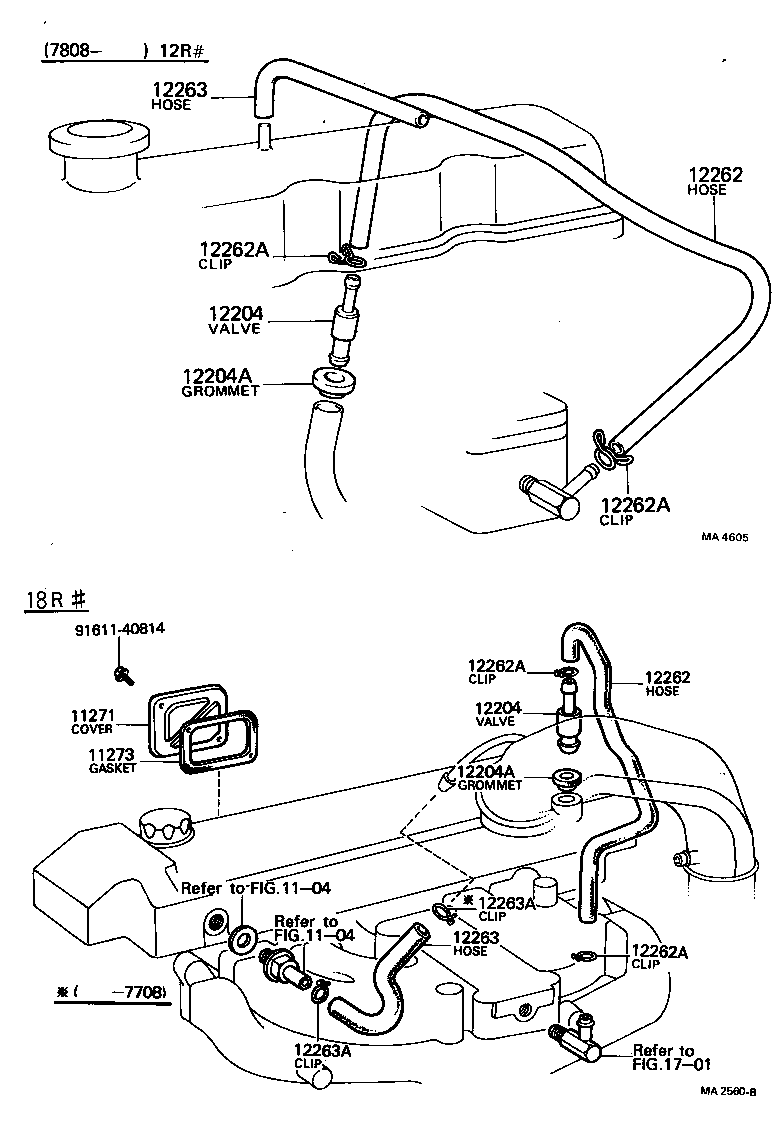

Ventilation Hose
10 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11271 | Cover, Cylinder Block Side |
| 11273 | Gasket, Cylinder Block Side Cover |
| 12204 | Valve Sub-assy, Ventilation |
| 12204A | Grommet(FOR VENTILATION SYSTEM) |
| 12261 | Hose, Ventilation |
| 12261A | Clip OR Clamp(FOR VENTILATION HOSE) |
| 12262 | Hose, Ventilation, NO.2 |
| 12262A | Clip(FOR VENTILATION HOSE NO.2) |
| 12263 | Hose, Ventilation, NO.3 |
| 12263A | Clip(FOR VENTILATION HOSE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
