Toyota Hiace

1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · Europe

Discontinued model Data version 1983-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

18 part groups · 7 illustrations

Illustrations

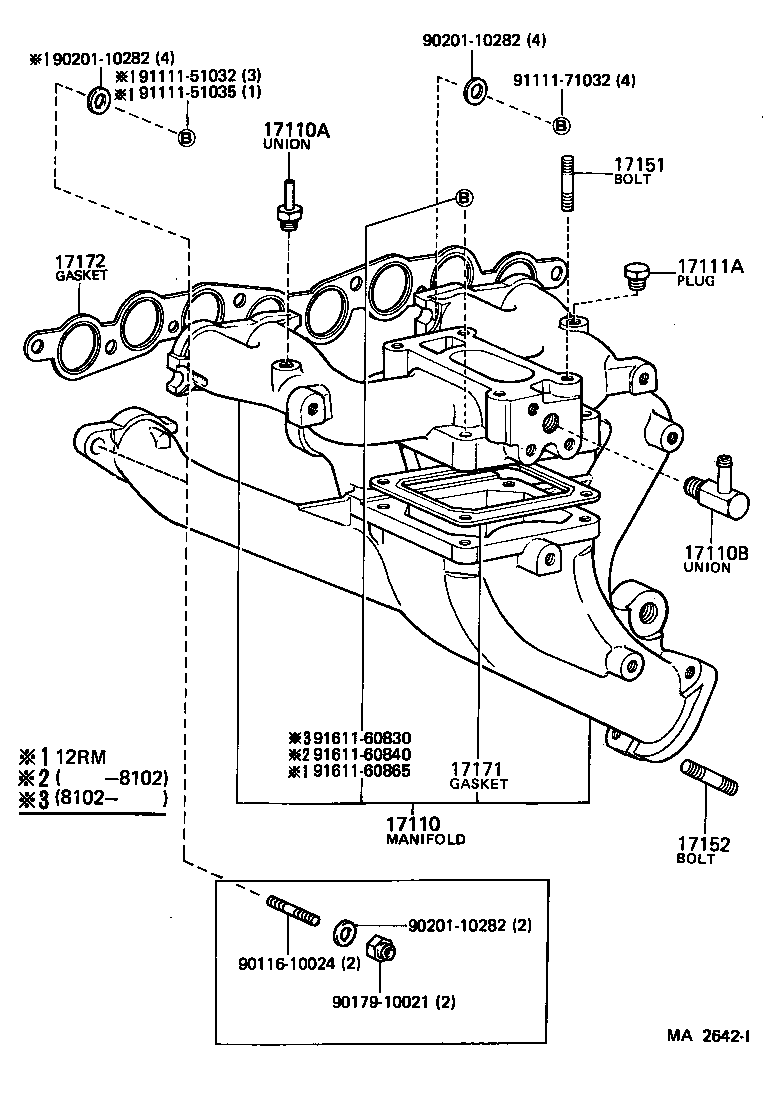

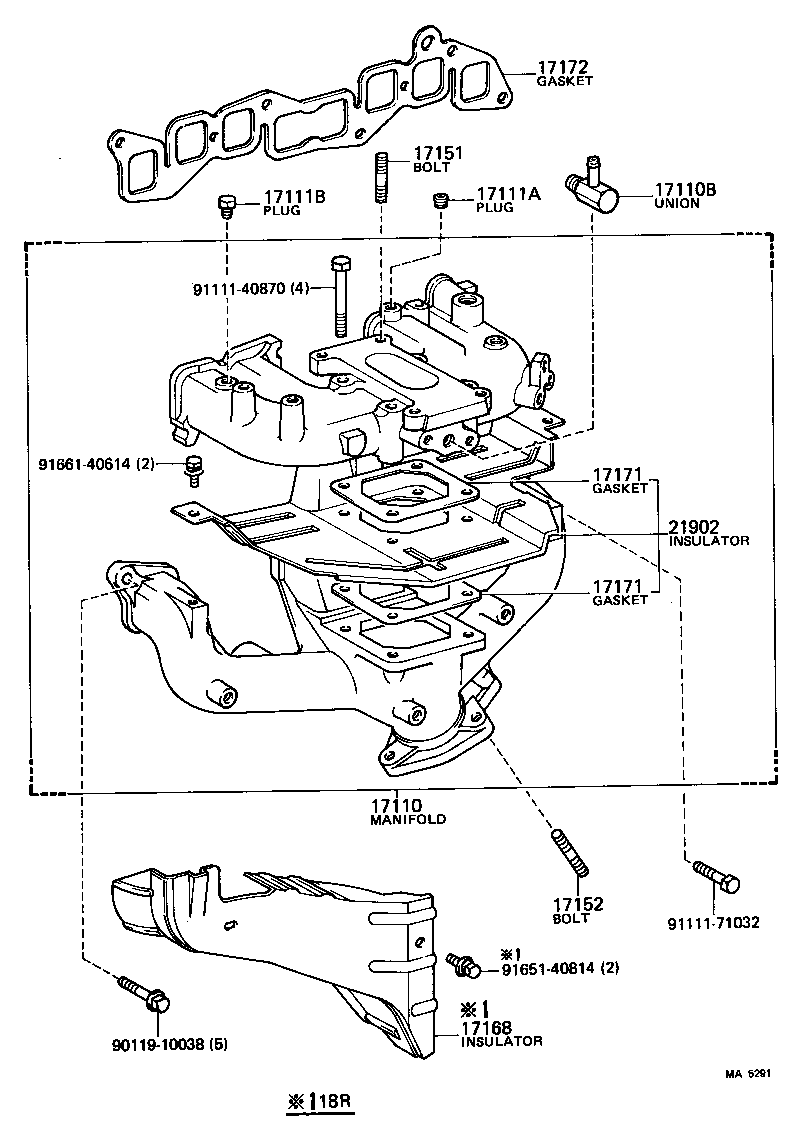

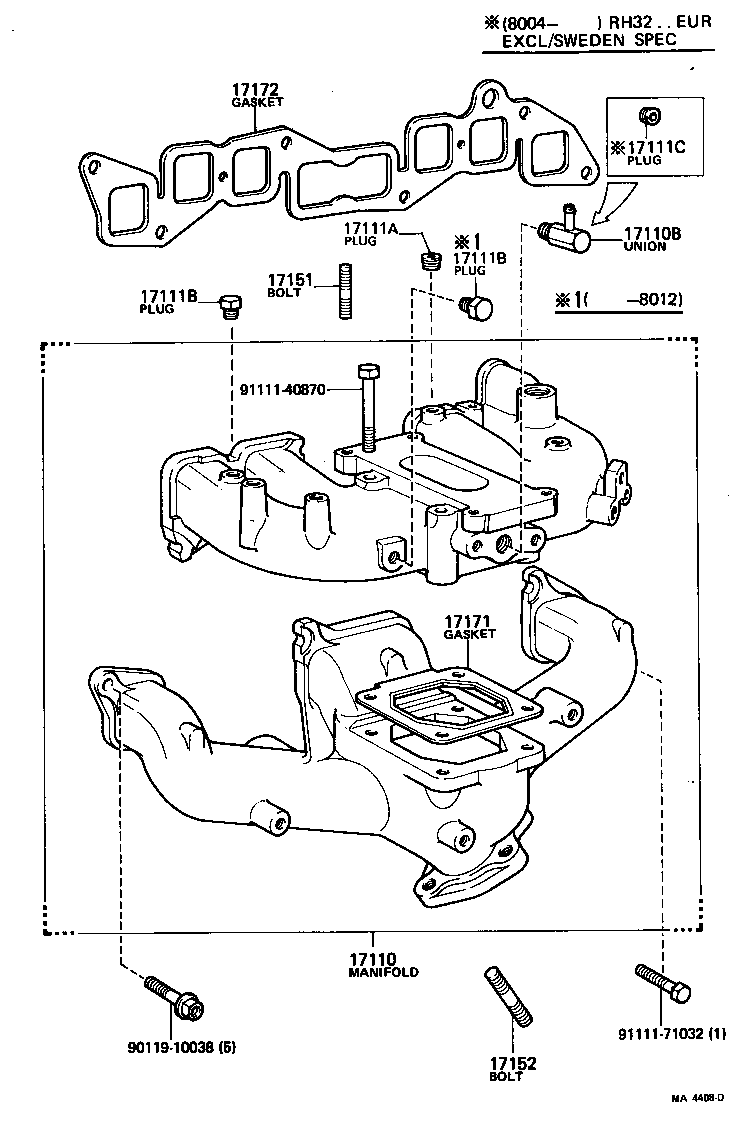

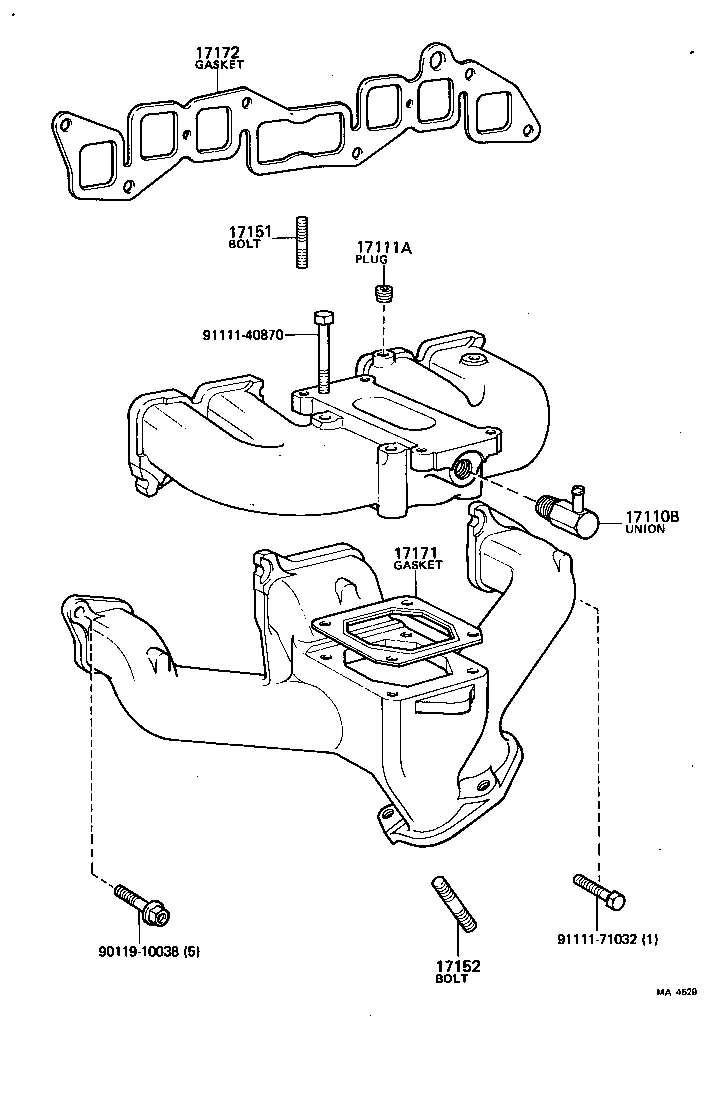

Figure MA3996E MA3996E 1979-01 → — Figure MA2642I MA2642I 1977-02 → — Figure MA4408D MA4408D 1977-02 → 1980-01 Figure MA4408D MA4408D 1980-01 → 1981-02 Figure MA4408D MA4408D 1981-02 → — Figure MA5291 MA5291 1981-02 → — Figure MA4529 MA4529 1980-01 → —

Part groups

PNCDescription
17110 Manifold Assy
17110A Union, Vacuum Hose
17110B Union(FOR VENTILATION HOSE TO MANIFOLD)
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17111C Plug, NO.3
17141 Manifold, Exhaust
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17171 Gasket, Intake TO Exhaust Manifold
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
21902 Insulator Sub-assy, Carburetor Heat, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
