Toyota Hiace

1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · Europe

Discontinued model Data version 1983-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

6 part groups · 14 illustrations

Illustrations

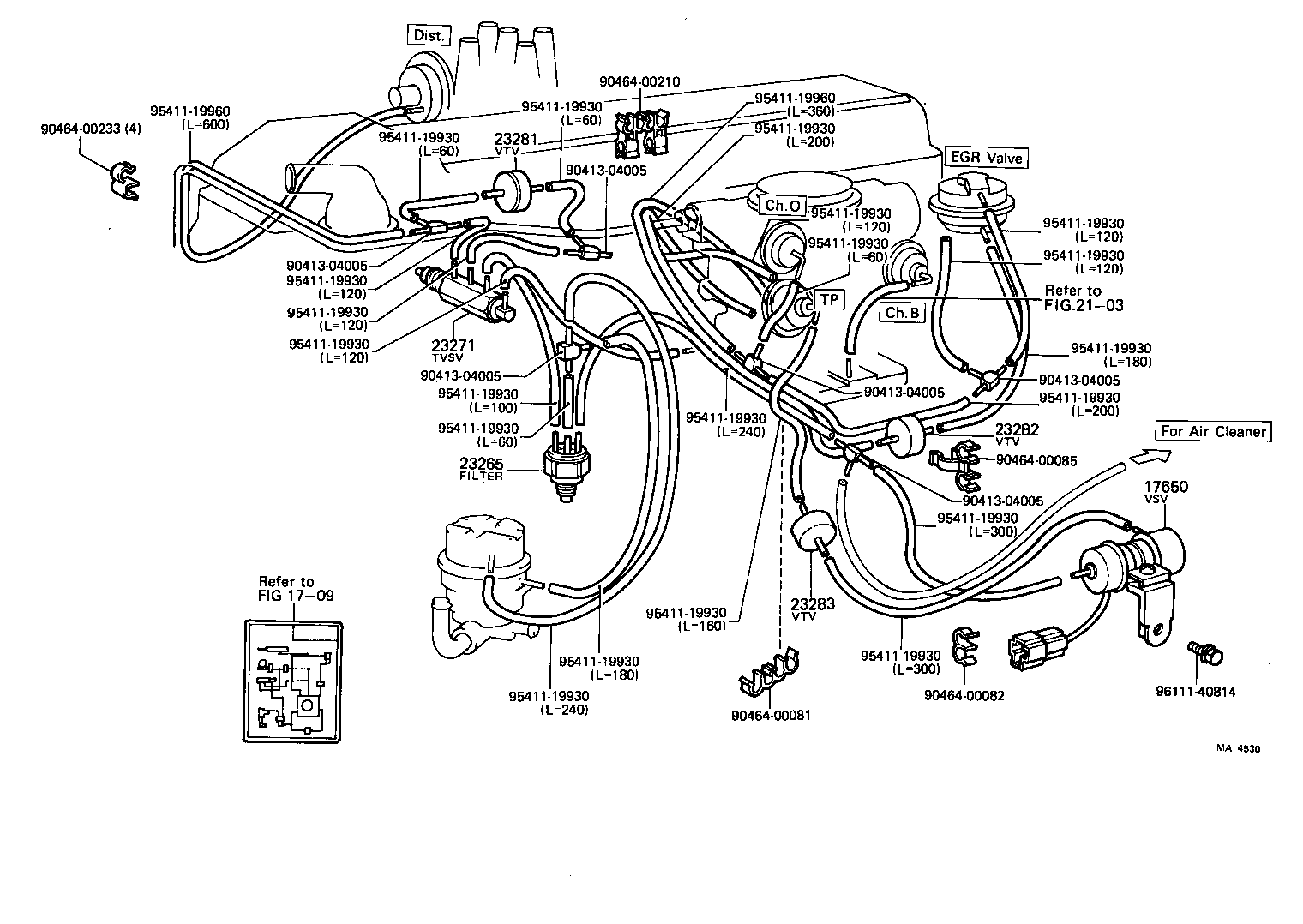

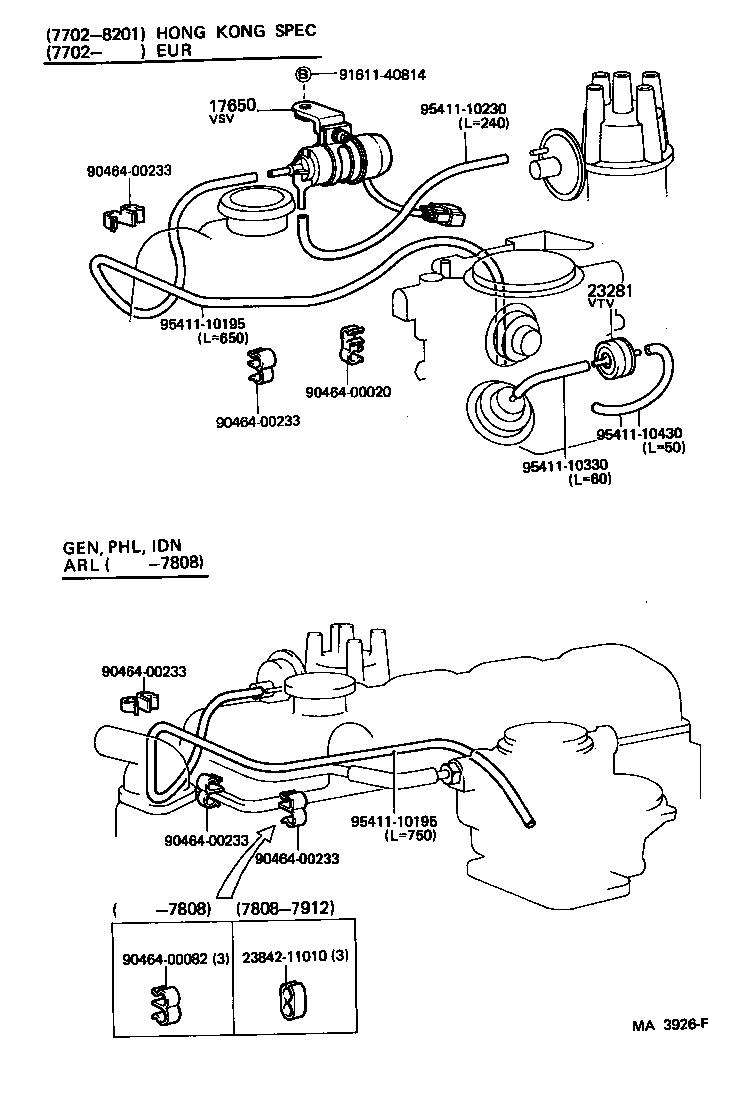

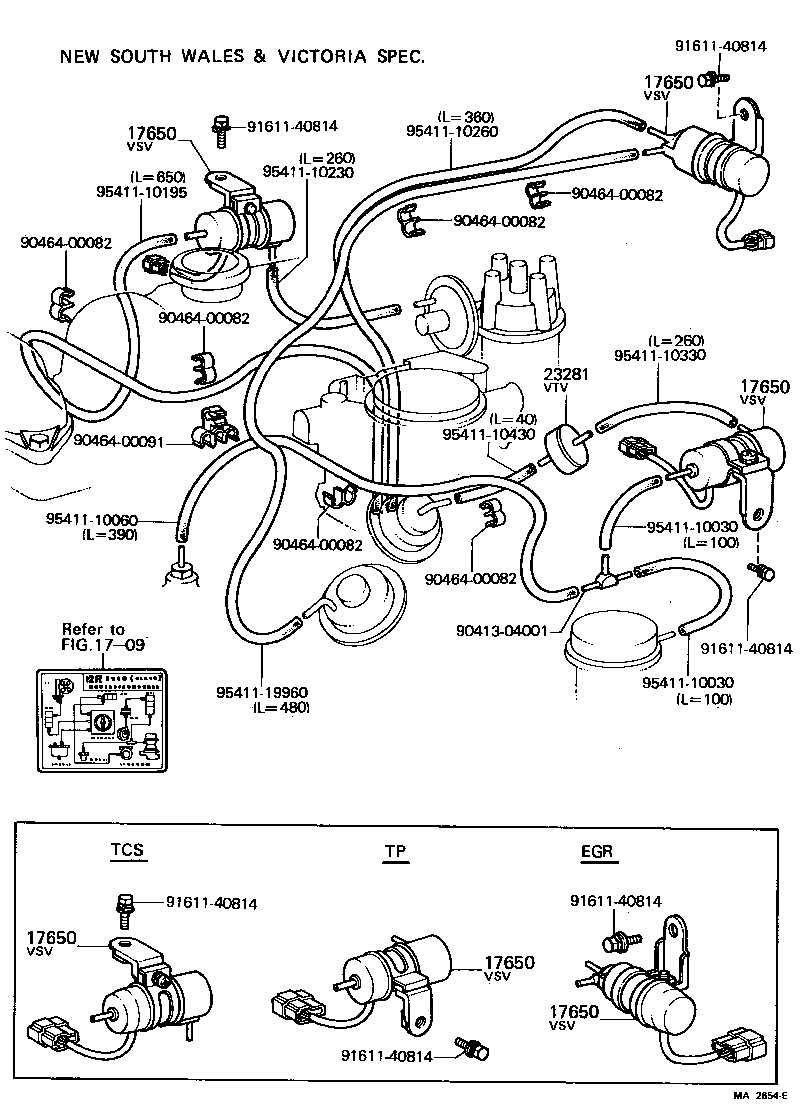

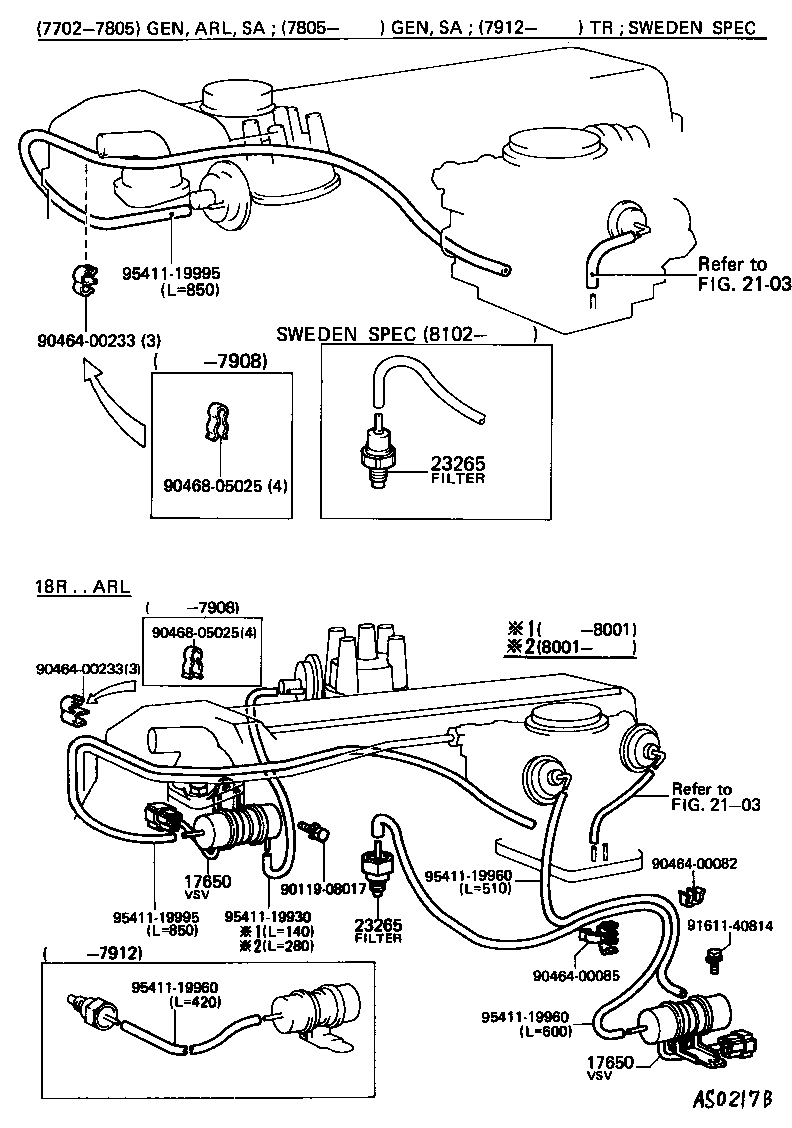

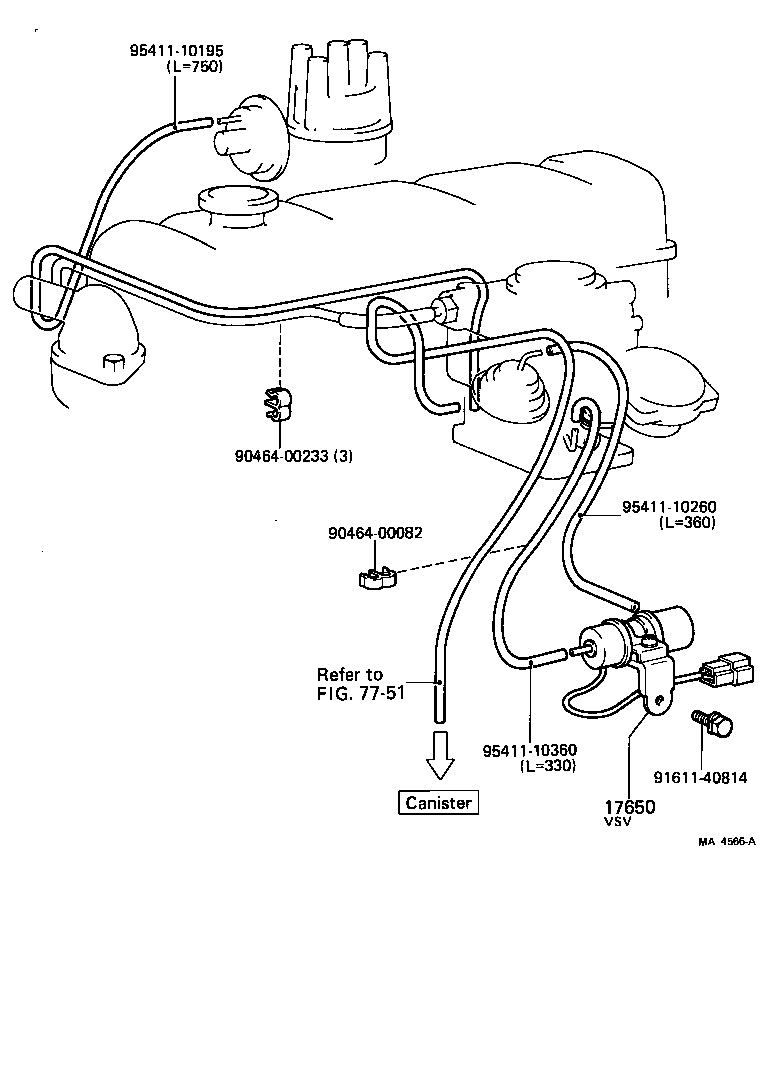

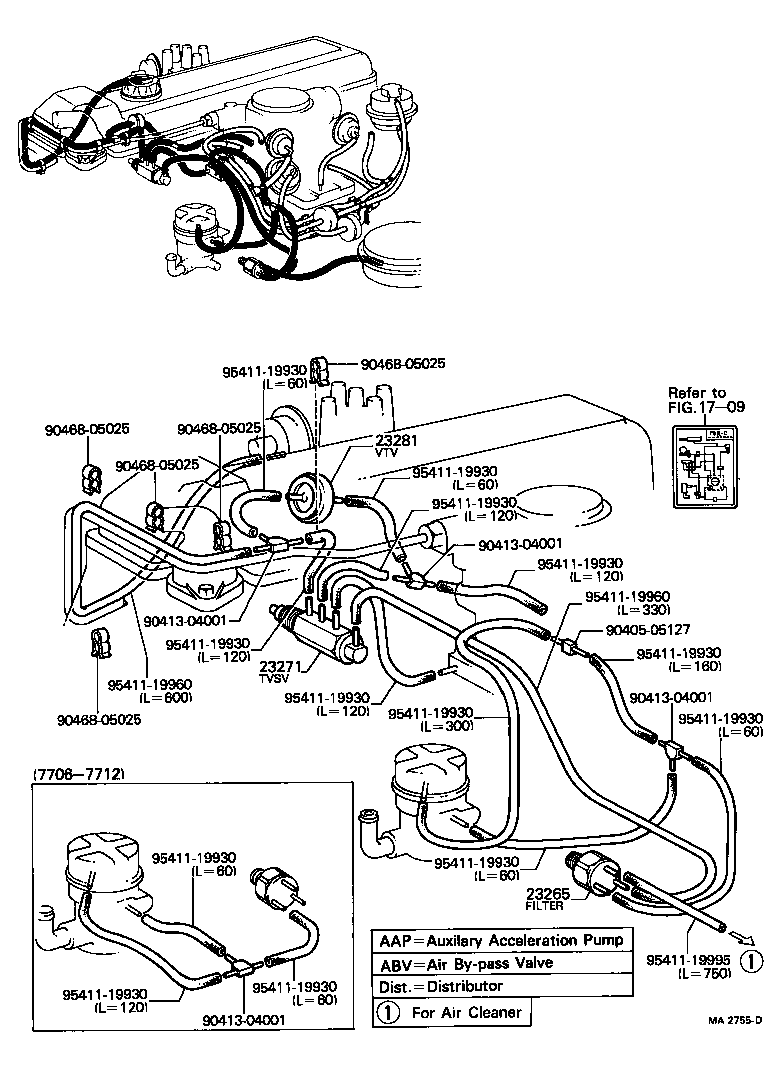

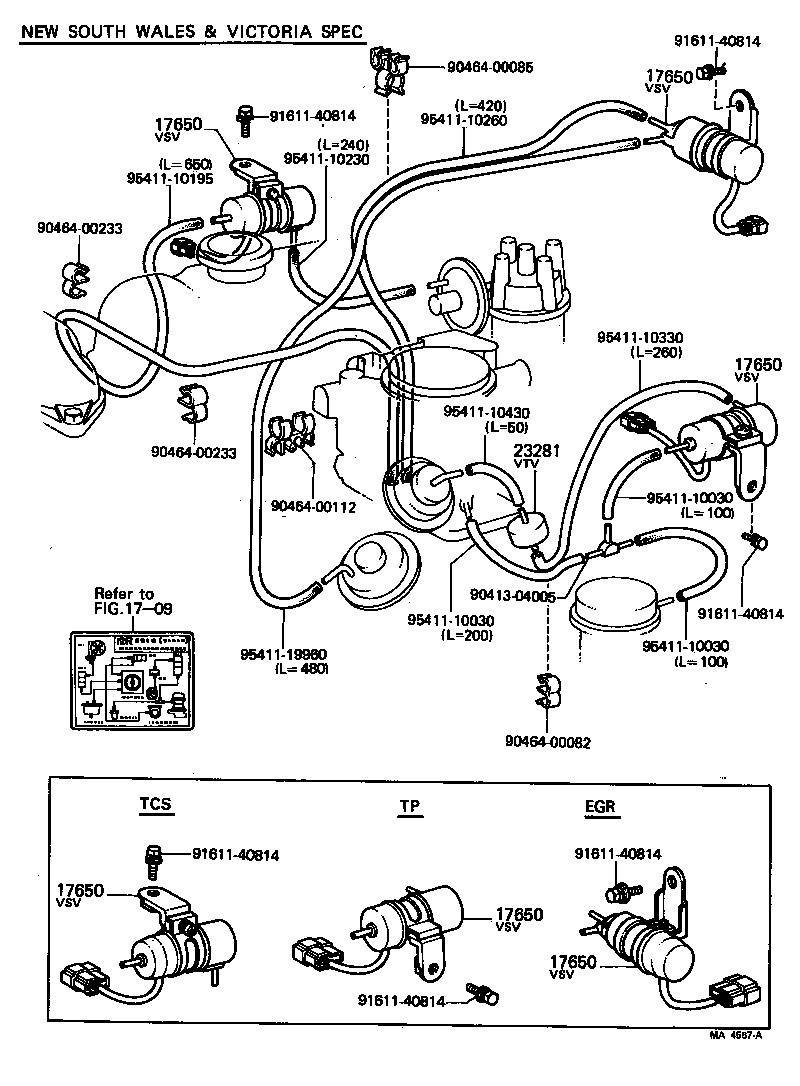

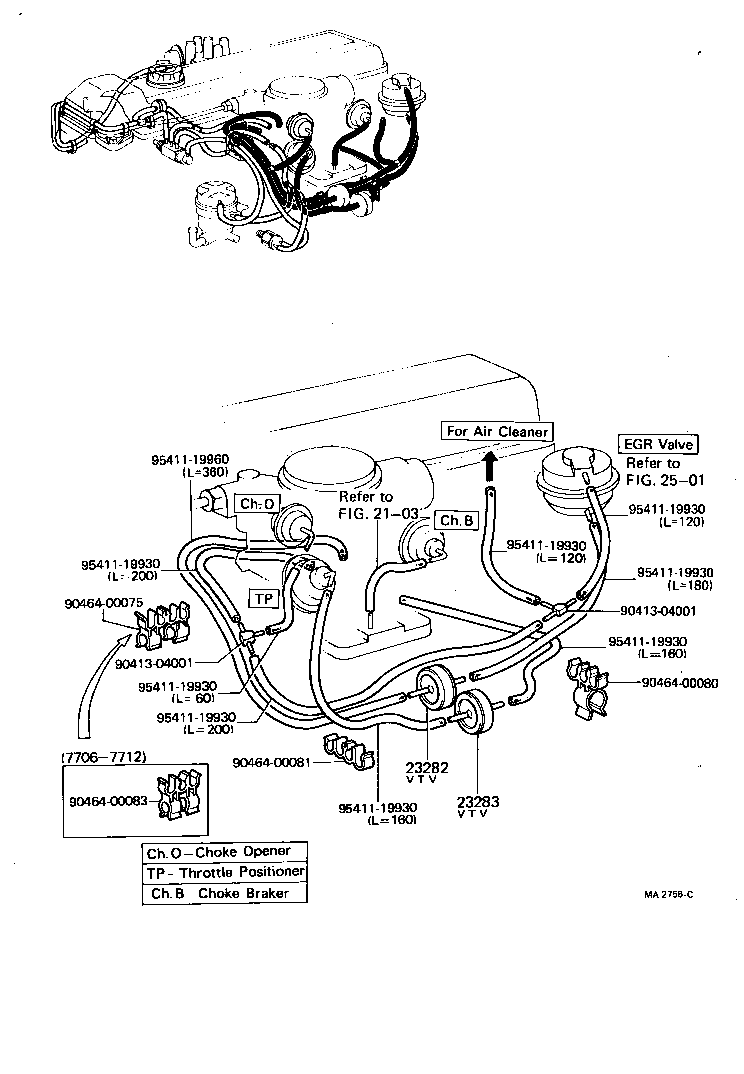

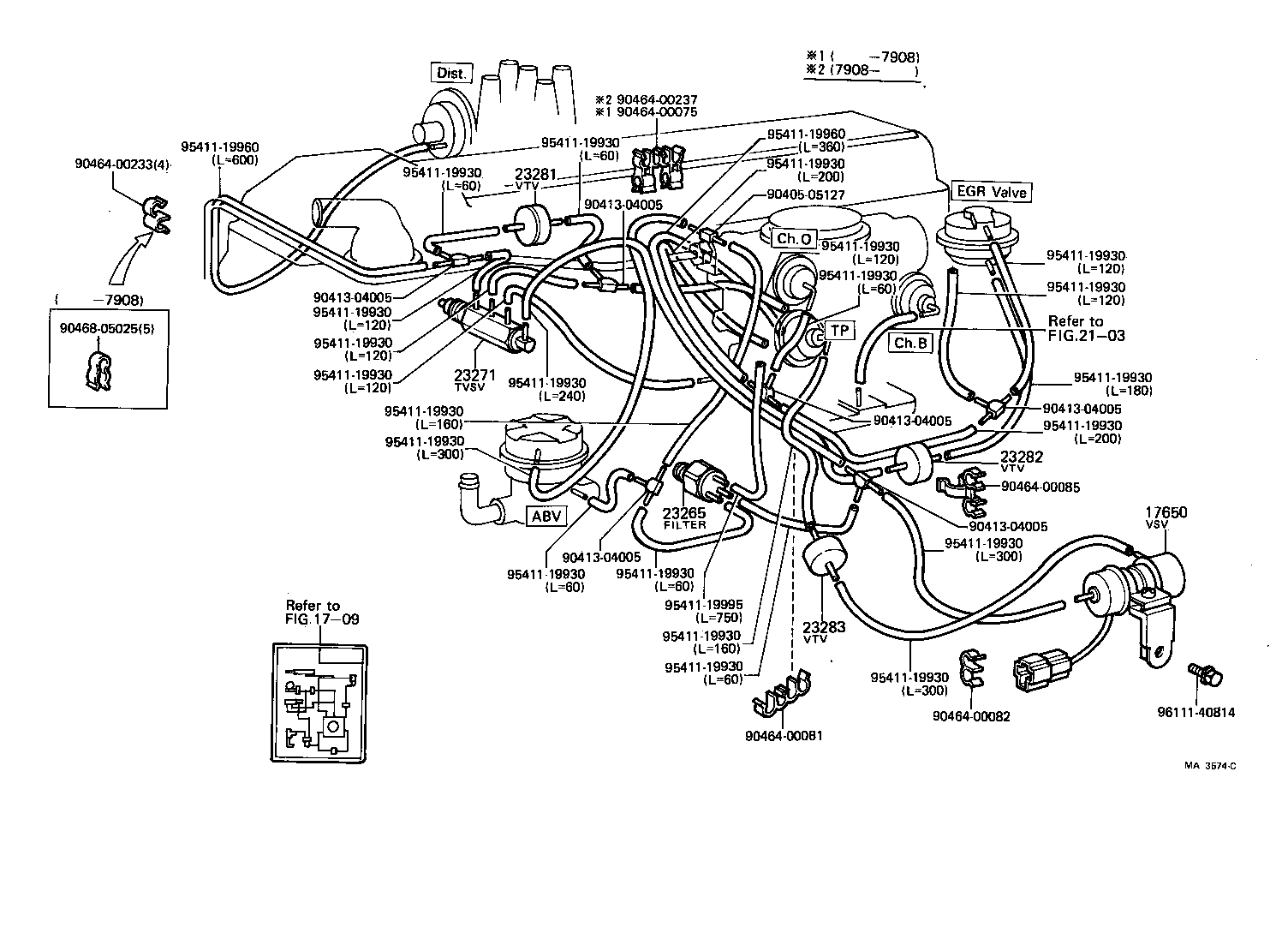

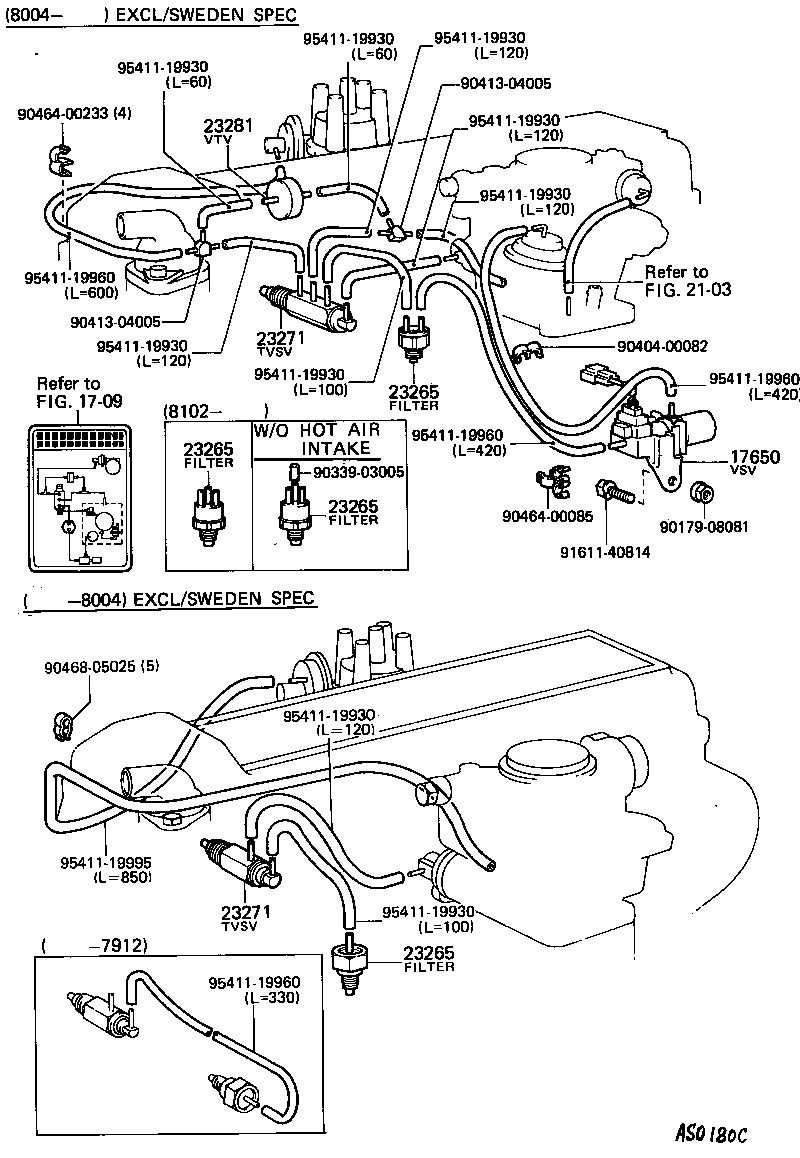

Figure MA9501 MA9501 1977-02 → — Figure MA3926F MA3926F 1977-02 → — Figure MA4566A MA4566A 1978-08 → — Figure MA2654E MA2654E 1977-02 → 1978-08 Figure MA4567A MA4567A 1978-08 → — Figure AS0217B AS0217B 1977-02 → 1978-05 Figure AS0217B AS0217B 1977-07 → — Figure AS0217B AS0217B 1978-05 → — Figure AS0217B AS0217B 1979-12 → — Figure AS0180C AS0180C 1977-07 → — Figure MA2755D MA2755D 1977-06 → 1978-05 Figure MA2756C MA2756C 1977-06 → 1978-05 Figure MA3574C MA3574C 1978-05 → 1979-12 Figure MA4530 MA4530 1979-12 → —

Part groups

PNCDescription
17650 Valve Assy, Vacuum Switching
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23283 Valve, Vacuum Transmitting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
