Toyota Hiace

1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · Europe

Discontinued model Data version 1983-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

15 part groups · 2 illustrations

Illustrations

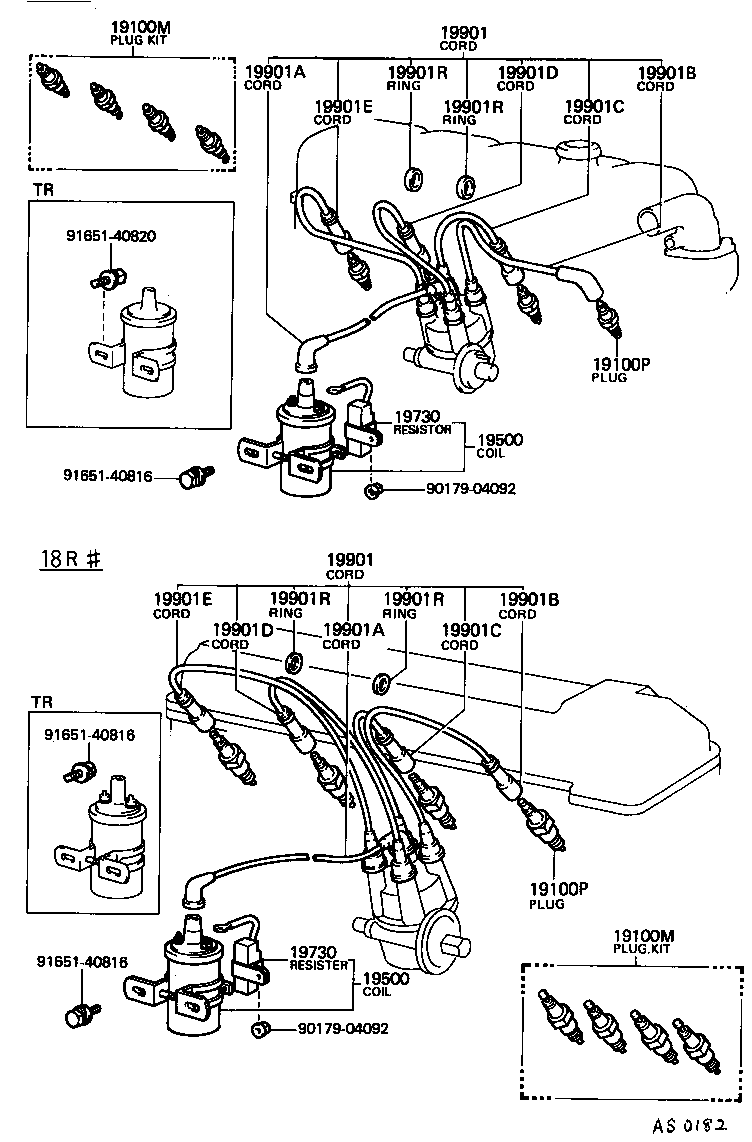

Figure ME6722A ME6722A 1979-01 → — Figure AS0182 AS0182 1977-02 → —

Part groups

PNCDescription
19100M Plug Kit, Spark
19100P Plug, Spark
19500 Coil Assy, Ignition
19730 Resistor, Ignition Coil
19850 Plug Assy, Glow
19850B Grommet, Screw(FOR GLOW PLUG)
19856 Nut, Connecting(FOR GLOW PLUG)
19871 Connector, Glow Plug NO.1
19901 Cord Set, Coil & Spark, W/Resistive
19901A Cord, Coil Resistive
19901B Cord, Spark Plug Resistive, NO.1
19901C Cord, Spark Plug Resistive, NO.2
19901D Cord, Spark Plug Resistive, NO.3
19901E Cord, Spark Plug Resistive, NO.4
19901R Ring, Rubber Spark Plug Resistive Cord
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
