Toyota Hiace

1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · Europe

Discontinued model Data version 1983-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Pipe & Clamp

16 part groups · 3 illustrations

Illustrations

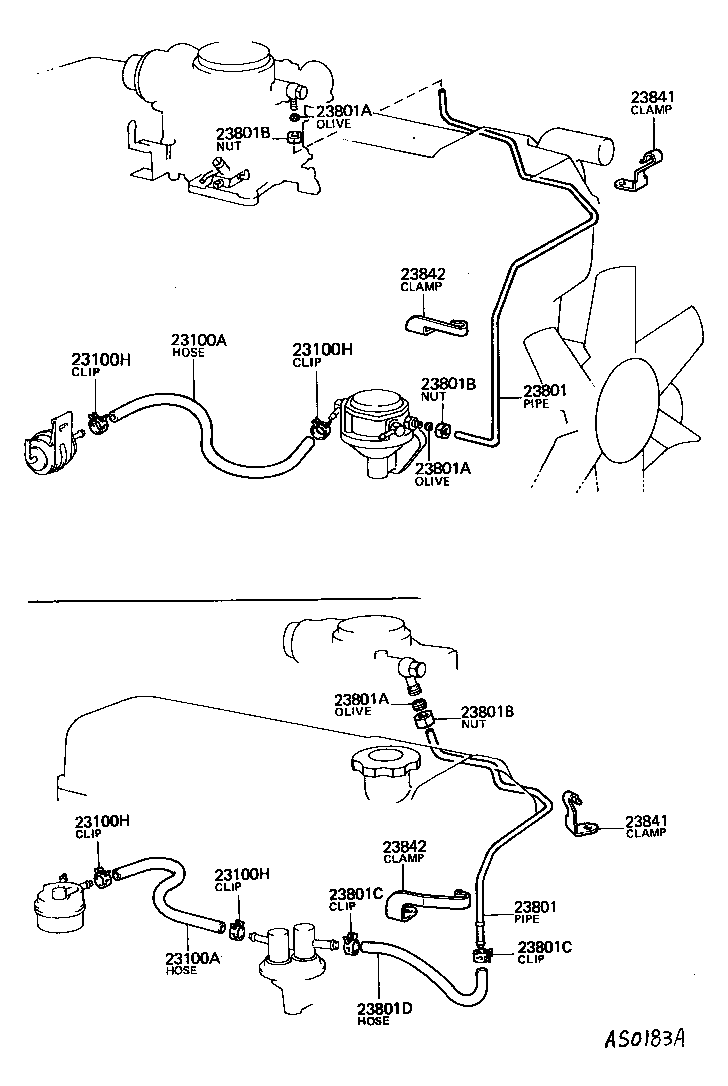

Figure MF1734D MF1734D 1977-02 → 1978-08 Figure MF2031B MF2031B 1978-08 → — Figure AS0183A AS0183A 1977-02 → —

Part groups

PNCDescription
21091 Bellcrank Sub-assy, Accelerator
21905 Rod Sub-assy, Accelerator Connecting
21942 Shaft, Accelerator Link
21942A Bush(FOR ACCELERATOR LINK SHAFT)
21942D Spring(FOR ACCELERATOR LINK SHAFT)
23100A Hose, Fuel
23100H Clip(FOR FUEL HOSE)
23801 Pipe OR Hose Sub-assy, Carburetor Fuel, NO.1
23801A Olive(FOR FUEL PIPE)
23801B Nut, Union(FOR FUEL PIPE)
23801C Clip(FOR CARBURETOR FUEL HOSE)
23801D Hose, Fuel Pipe, NO.1
23801E Hose, Fuel Pipe, NO.2
23841 Clamp, Fuel Pipe(HOSE), NO.1
23842 Clamp, Fuel Pipe(HOSE), NO.2
23845 Insulator, Fuel Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
