Toyota Hiace

1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · Europe

Discontinued model Data version 1983-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Release Cylinder

10 part groups · 5 illustrations

Illustrations

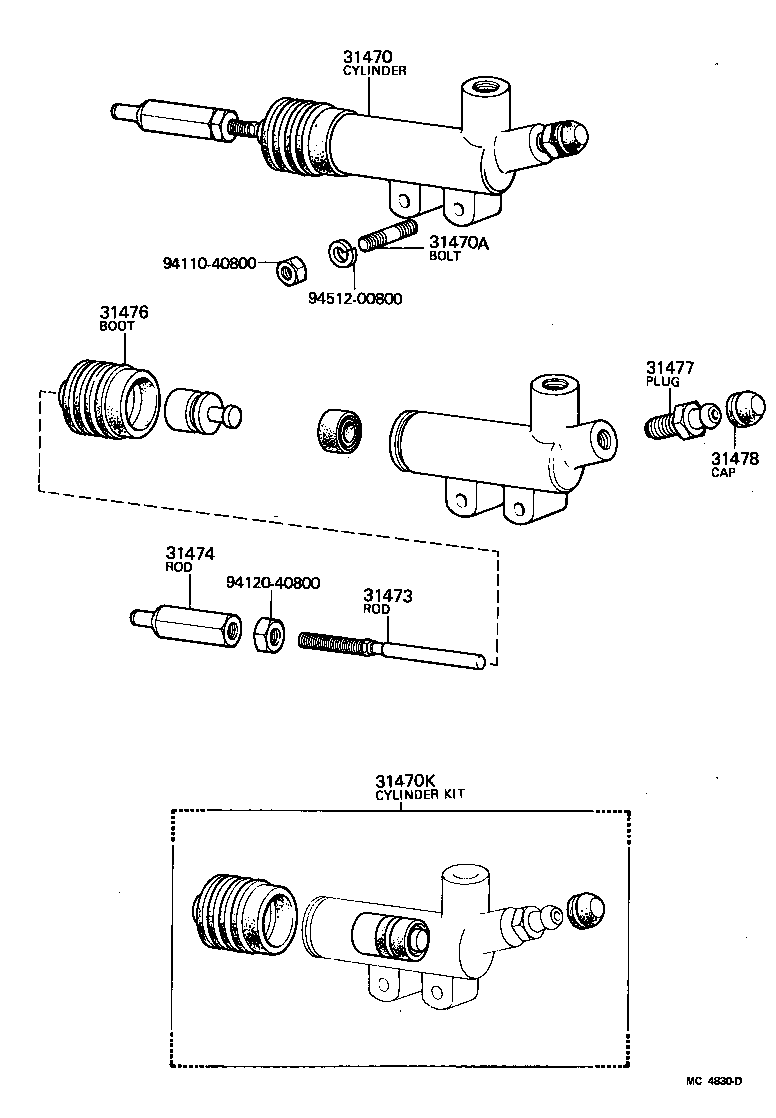

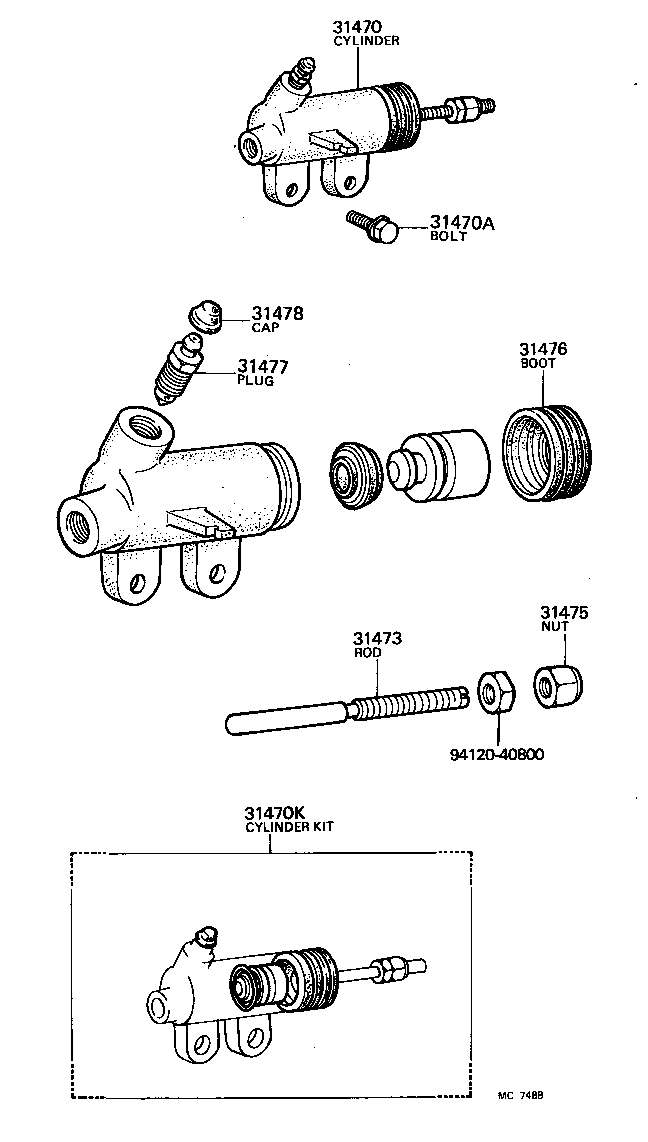

Figure MC7639 MC7639 1977-02 → 1977-11 Figure MC4830D MC4830D 1977-11 → — Figure MC2716C MC2716C 1977-02 → 1980-12 Figure MC2716C MC2716C 1980-12 → — Figure MC7488 MC7488 1980-12 → —

Part groups

PNCDescription
31470 Cylinder Assy, Clutch Release
31470A Bolt(FOR CLUTCH RELEASE CYLINDER SETTING)
31470K Cylinder Kit, Clutch Release
31473 Rod, Clutch Release Cylinder Push, NO.1
31474 Rod, Clutch Release Cylinder Push, NO.2
31475 Nut, Clutch Release Cylinder Push Rod
31476 Boot, Clutch Release Cylinder
31477 Plug, Bleeder(FOR RELEASE CYLINDER)
31477A Ball(FOR RELEASE CYLINDER BLEEDER PLUG)
31478 Cap, Bleeder Plug(FOR RELEASE CYLINDER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
