Toyota Hiace

1977-02 → 1982-11 · chassis RH11,2#,3#,42,LH11,20,30 · catalogue 691220 · Europe

Discontinued model Data version 1983-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Housing & Transmission Case (MTM)

15 part groups · 3 illustrations

Illustrations

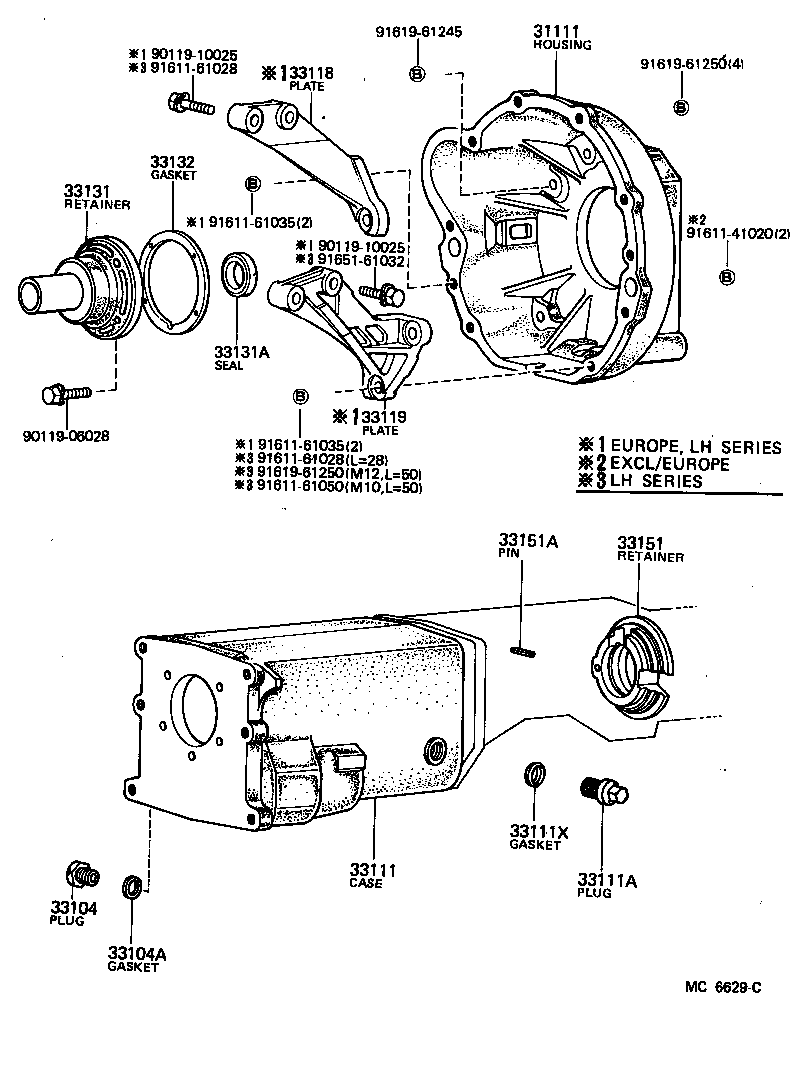

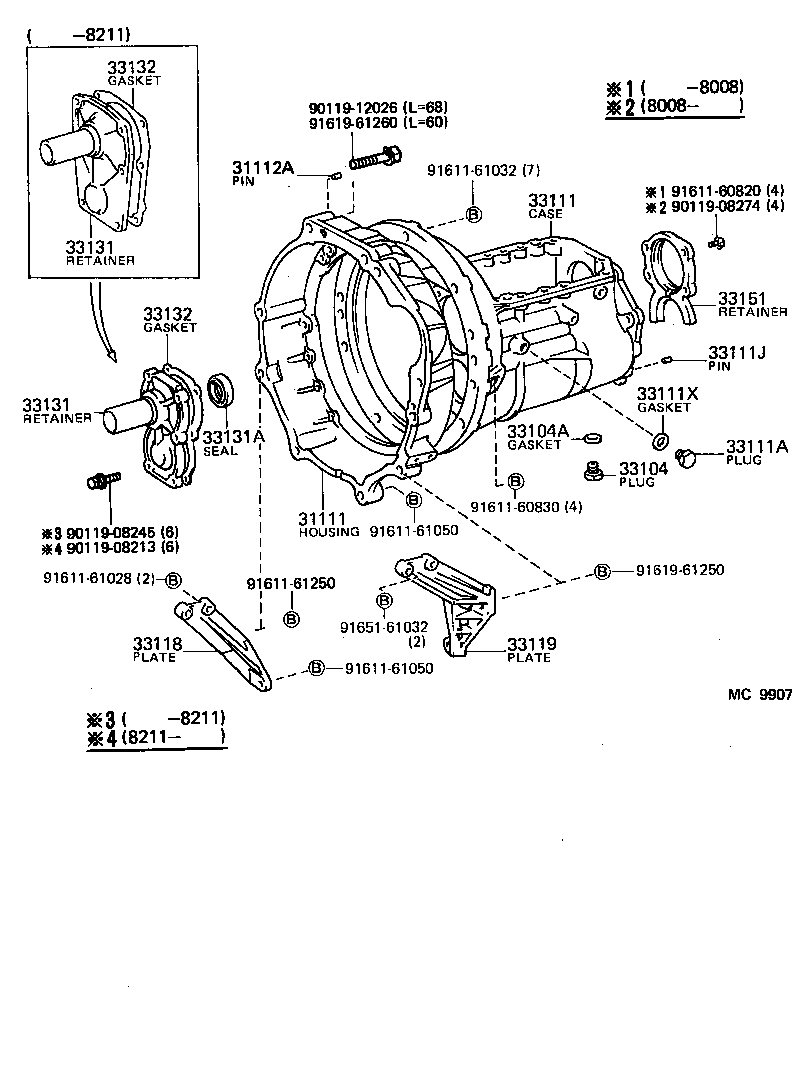

Figure MC4832E MC4832E 1977-02 → — Figure MC6629C MC6629C 1977-02 → — Figure MC9907 MC9907 1979-12 → —

Part groups

PNCDescription
31111 Housing, Clutch
31112A Pin, Dowel Clutch Housing
33104 Plug Sub-assy, Drain(MTM)
33104A Gasket, Drain Plug(MTM)
33111 Case, Manual Transmission
33111A Plug, Manual Transmission Case
33111J Pin, Straight(FOR MANUAL TRANSMISSION CASE)
33111X Gasket, Transmission Case Plug
33118 Plate, Stiffener, RH(MTM)
33119 Plate, Stiffener, LH(MTM)
33131 Retainer, Bearing, Front(MTM)
33131A Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER)
33132 Gasket, Front Bearing Retainer(MTM)
33151 Retainer, Output Shaft Rear Bearing(MTM)
33151A Pin, Slotted Spring(FOR OUTPUT SHAFT REAR BEARING RETAINER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
