Parking Brake & Cable

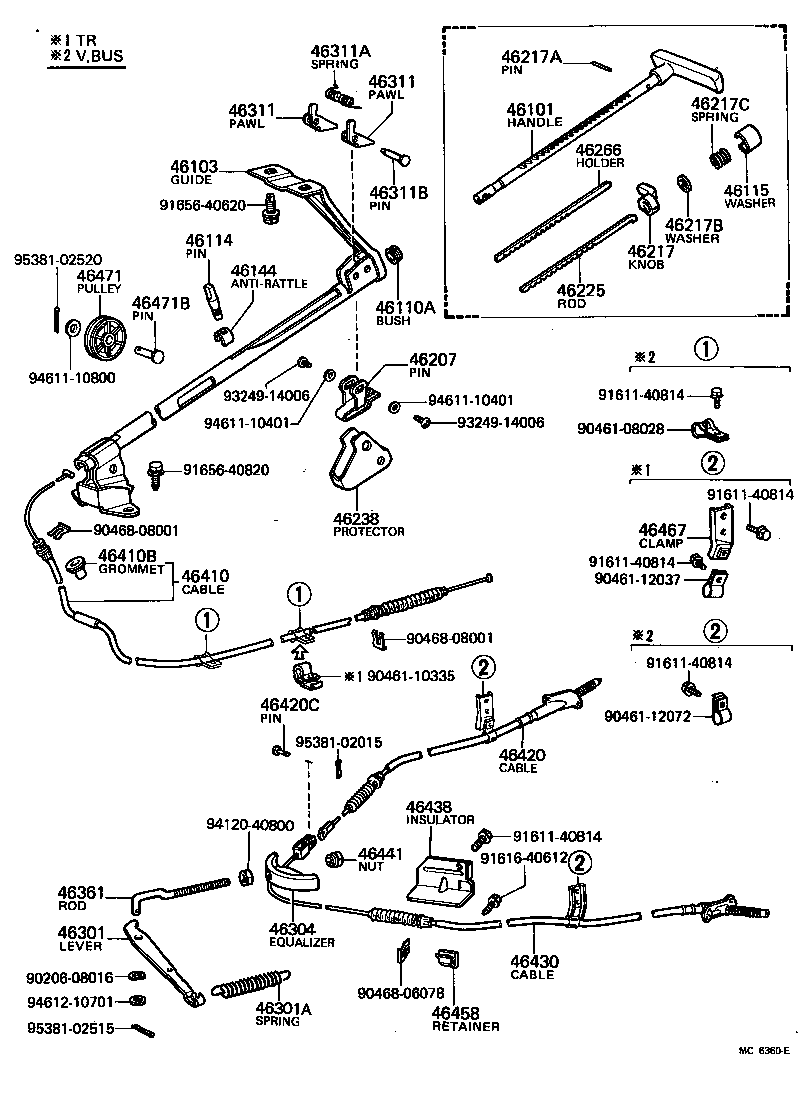

32 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 46101 | Handle Sub-assy, Parking Brake Control |
| 46103 | Guide Sub-assy, Parking Brake Plunger |
| 46110A | Bush OR Ring, O (FOR PARKING BRAKE PLUNGER) |
| 46114 | Pin, Parking Brake Plunger |
| 46115 | Washer, Parking Brake Plunger |
| 46144 | Anti-rattle, Parking Brake Plunger |
| 46207 | Pin Sub-assy, Plunger Lock |
| 46217 | Knob, Parking Brake Release Rod |
| 46217A | Pin, Slotted Spring(FOR PARKING BRAKE RELEASE ROD KNOB) |
| 46217B | Washer, Plate(FOR PARKING BRAKE RELEASE ROD KNOB) |
| 46217C | Spring, Compression(FOR PARKING BRAKE RELEASE ROD KNOB) |
| 46225 | Rod, Parking Brake Pawl Release |
| 46238 | Protector, Plunger Lock Pin |
| 46266 | Holder, Plunger Lock Pin |
| 46301 | Lever Sub-assy, Parking Brake Intermediate |
| 46301A | Spring, Tension(FOR INTERMEDIATE LEVER) |
| 46304 | Equalizer Sub-assy, Parking Brake |
| 46311 | Pawl, Parking Brake |
| 46311A | Spring(FOR PARKING BRAKE PAWL) |
| 46311B | Pin, Parking Brake Pawl Pivot |
| 46361 | Rod, Parking Brake Pull |
| 46410 | Cable Assy, Parking Brake, NO.1 |
| 46410B | Grommet(FOR PARKING BRAKE FRONT CABLE) |
| 46420 | Cable Assy, Parking Brake, NO.2 |
| 46420C | Pin, W/Hole(FOR PARKING BRAKE CABLE) |
| 46430 | Cable Assy, Parking Brake, NO.3 |
| 46438 | Insulator, Parking Cable Dust Cover Heat |
| 46441 | Nut, Wire Adjusting, NO.1 |
| 46458 | Retainer, Cable |
| 46467 | Clamp, Cable |
| 46471 | Pulley, Wire |
| 46471B | Pin, W/Hole(FOR WIRE PULLEY SET) |
